Laser Marking Machine Supported Materials Included Metal and Non-Metal

Laser Marking Machine Supported Materials Included Metal and Non-Metal
Price: US $ 3500/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: YLP-20-D135
Model No.: 1
Engraving Machine Type: Laser Engraving Machine
Laser Type: Fiber Laser
Current: AC
Usage: Metal, Plastic, Glass, Wood, Stone
Control: Automatic
Drive Type: Fiber Laser
Certification: SGS, Ce
Power: 10watt, 20watt, 30watt, 50watt
Export Markets: Global

Product Description

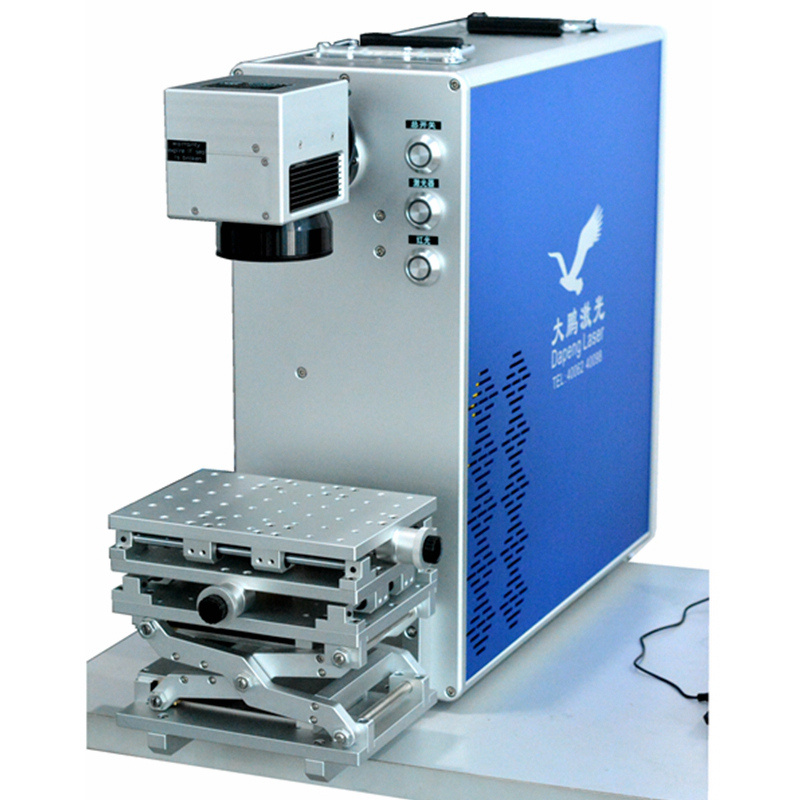

Laser marking machine supported materials included metal and non-metal

Model   YLP-F10/20/30/50
Laser Power:10W,20W,30W,50W
Wavelenth:1064nm
Standard Marking Area:100mm*100mm
Optional Marking Area:160mm*160mm,200mm*200mm,300mm*300mm
Marking Speed:≤7000mm/s
Minimum Line Width0.02mm
Minimum letterEnglish: 0.2 x 0.2mm
Marking Depth0 ~0.5mm
Location precision≤0.01mm
Resetting positioning accuracy0.002
Beam QualityM2:1.2~1.8
Electrical Requirements:Ac220V±10%.50HZ.5Amp
Cooling modeAir cooled
Scan HeadHigh Precision Digital Scan Head
Unit Power<0.5kw
Operational Temp Range10-40C
Operational Humidity Range5%-75%, Non-condensing
Warranty:2 years on laser source
Dimensions:25*60*80mm
Net Weight38KG

Special features
Easy to Use Automation FeaturesSharp, High Contrast, Impact FreeHigh Speed Galvo Steering
Compact & Fast Set-Up100,000 Hrs Laser Lifetime2 Year Warranty
Turnkey SystemPermanant MarkingAir Cooled/No Chiller needed
Tunable Pulse RateNo routine maintenance/No ConsumableDigital I/O for Easy Operation
Red Aiming Pointer/No more mistakesSolid Aluminum Top Work Surface & Swing Arm Laptop StandPortable Tabletop Units to Automated Production Systems Available

Control Software
True Type FontsSingle Stroke FontsElliptical Text
Sequential Serial NumbersCustomizable Auto DatingBarcodes
QR Codes and Data MatrixUID WizardLogos
Photo Quality Images - JPG, TIF, GIFCorel Draw, Adobe IllustratorRaster Graphics
Vector GraphicsCAD Files

Join the Journey with us >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
