Laser Marking Machinefor Laser Jet Machine for Marking
| Price: |
US $ 8900/Set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Dp-F10-Otf |
| Certification: |
SGS, CE |
| Control: |
Automatic |
| Condition: |
New |
| Power: |
10watt, 20watt, 30watt |
| Export Markets: |
Global |
| Engraving Machine Type: |
Laser Engraving Machine |
| Laser Type: |
Fiber Laser |
| Current: |
AC |
| Usage: |
Metel, Plastic |
Product Description
Product Description
ON THE FLY MARKING
Laser marking on the fly offers several advantages to manufacturers. Beside the simple reduction in costs and labor using traditional printing methods, on the fly lasing allows for significant improvements in ROI over other forms of laser marking. With no part loading, manually or robotically, parts are rapidly fed across the laser field through to the next part of the manufacturing process.
Vision systems can even allow parts to arrive in the laser field in different orientations. The optics identify the variation to the laser which orients for each part's alignment. This can be done at very high speeds, possibly meaning less time spent getting your parts to face a certain direction.
Dapeng Lasers' engineers have years of experience developing part delivery systems that ensure a combination of high speed and precision lasing.

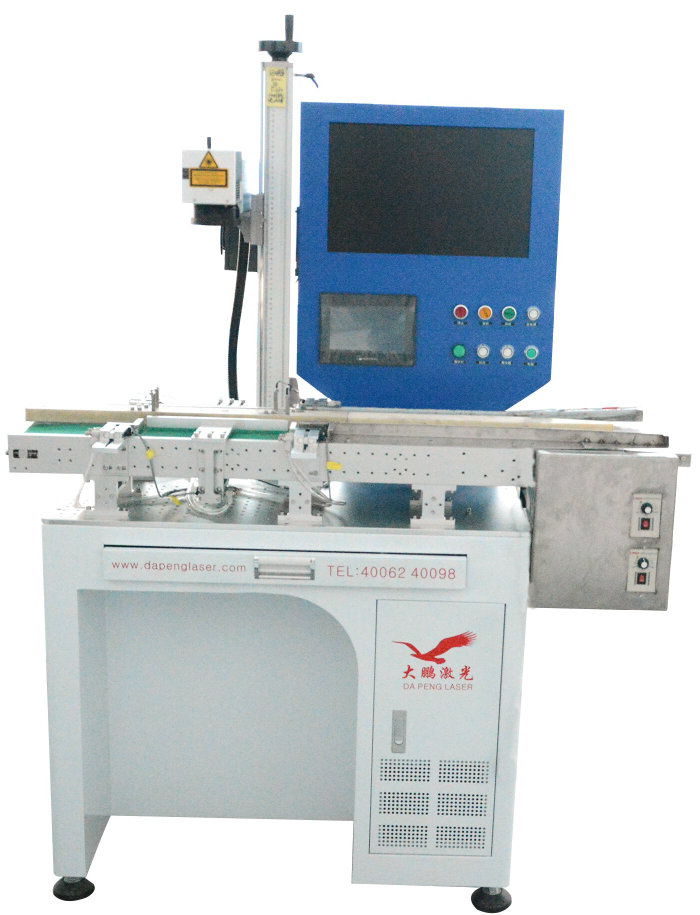

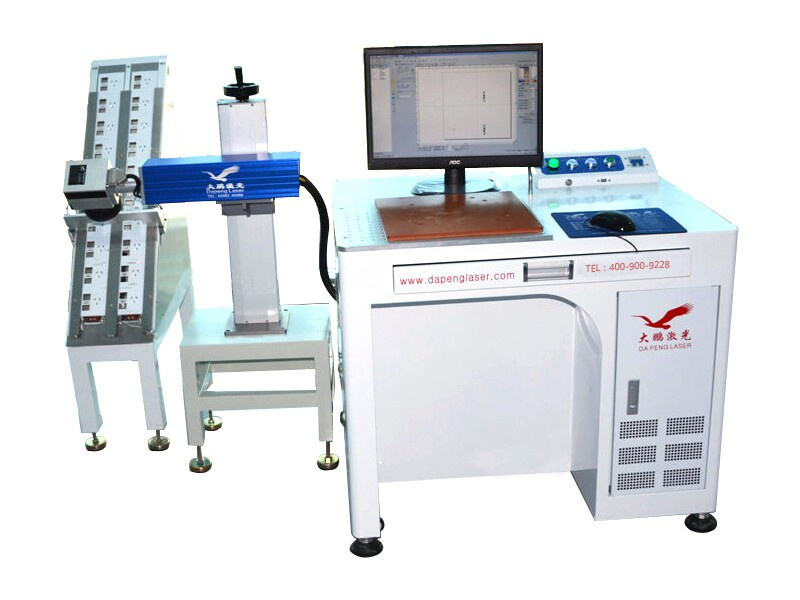

DP-OTF On The Fly Marking systems
DP-OTF laser marking machine (Marking On The Fly), adopts imported top quality or China top brand fiber laser source , high-speed galvanometer scanning system, Japan electro-optical sensors, and professional On The Fly marking control software, can increase production speed, reduce bad pieces, improve line safety, and eliminate down time.
Specifications:
Model | DP-F10-OTF | DP-F20-OTF | DP-F30-OTF |
| Laser Power | 10W | 20W | 30W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Highest feeding speed | 300m/min | 300m/min | 300m/min |
| Marking | Can mark on stationary or moving parts |
| Software | automatic encoding, variable text, date, serial number, lot number, bar code and two-dimensional code printing, and can be modified according to customers ' different needs of production line flexibly. |
| Adjustable lift range | 0~1000mm or custom design |
| Power consumption | ≤600W | ≤800W | ≤2KW |
| Power supply requirement | 220v/50HZ | 220v/50HZ | 220v/50HZ |
Applications:
We offer On The Fly Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

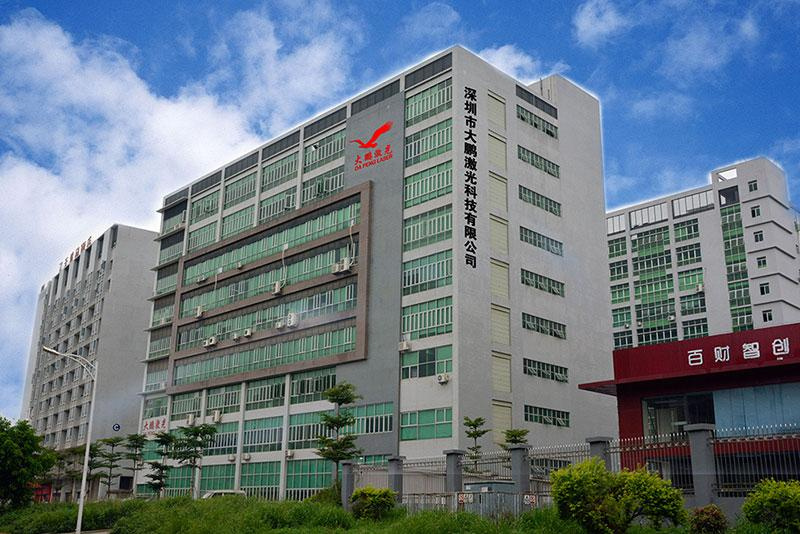

Shenzhen Dapeng Laser Technology Co. Ltd.
Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting,Strong research and development capabilities, standardization and scale of the production plant, we can guarantee the quality of products and delivery time; also can be customized according to customer requirements of the design and production, better adapt to market development,
The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries
Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .

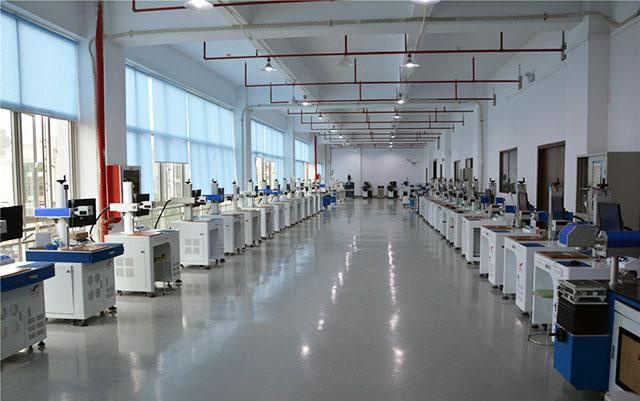

The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.
Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
