Laser Warning Labelled Sc Shutter Fiber Optic Adapter
| Price: |
US $ 0.3-0.6/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC/FC Fiber Optical Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shenzhen of China |
| Brand Name: |
OEM |
| Mode: |
Sm or mm |
| Operating Temperature(°c): |
-40 ~ +70 |
| Storage Temperature(°c): |
40 ~ +70 |
| Business Type: |
Manufacturer |
| Packaging: |
Plastic Tray |
| Delivery Detail: |
5 Working Days |
| Core Diameter: |
0.9, 2.0, 3.0 |
| Customized: |
Available |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Ferrule Endface: |
APC |
| Number Of Cores: |
Sx/Dx |
| Light Source TYPE: |
Fiber Optic |
| Connector Type: |
Sc/FC/St/LC/MPO/MTP/DIN/MTRJ/Mu |
Product Description

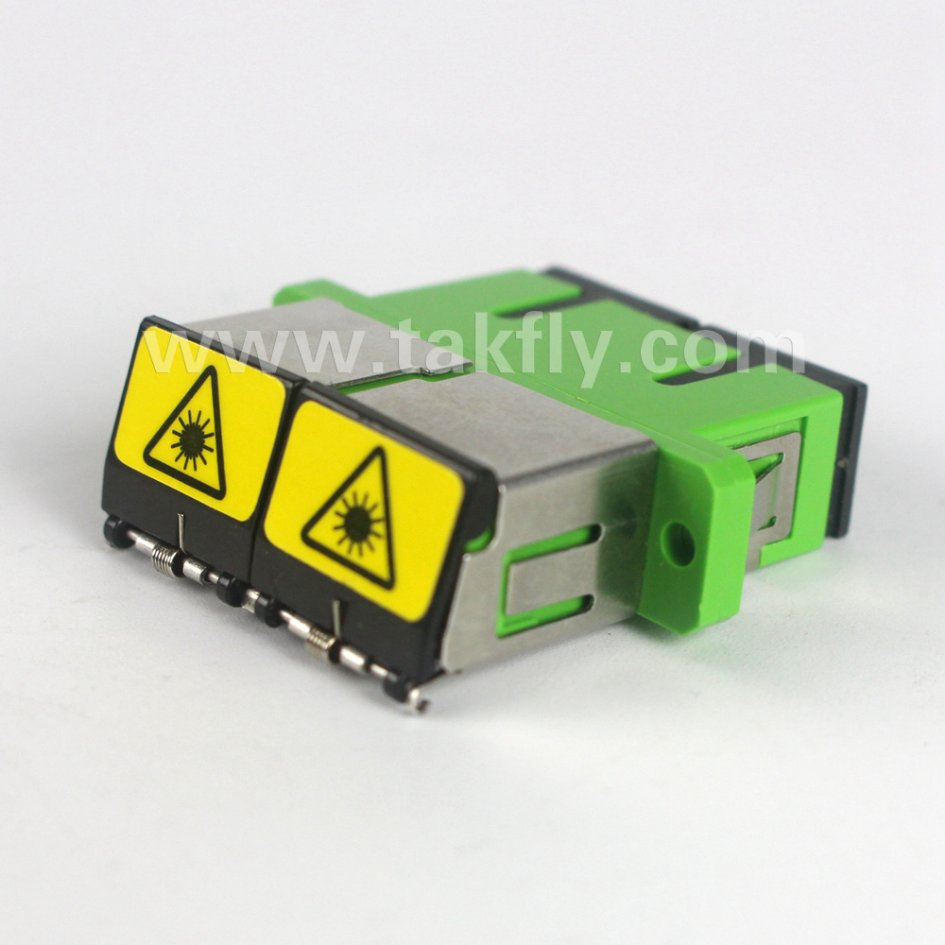

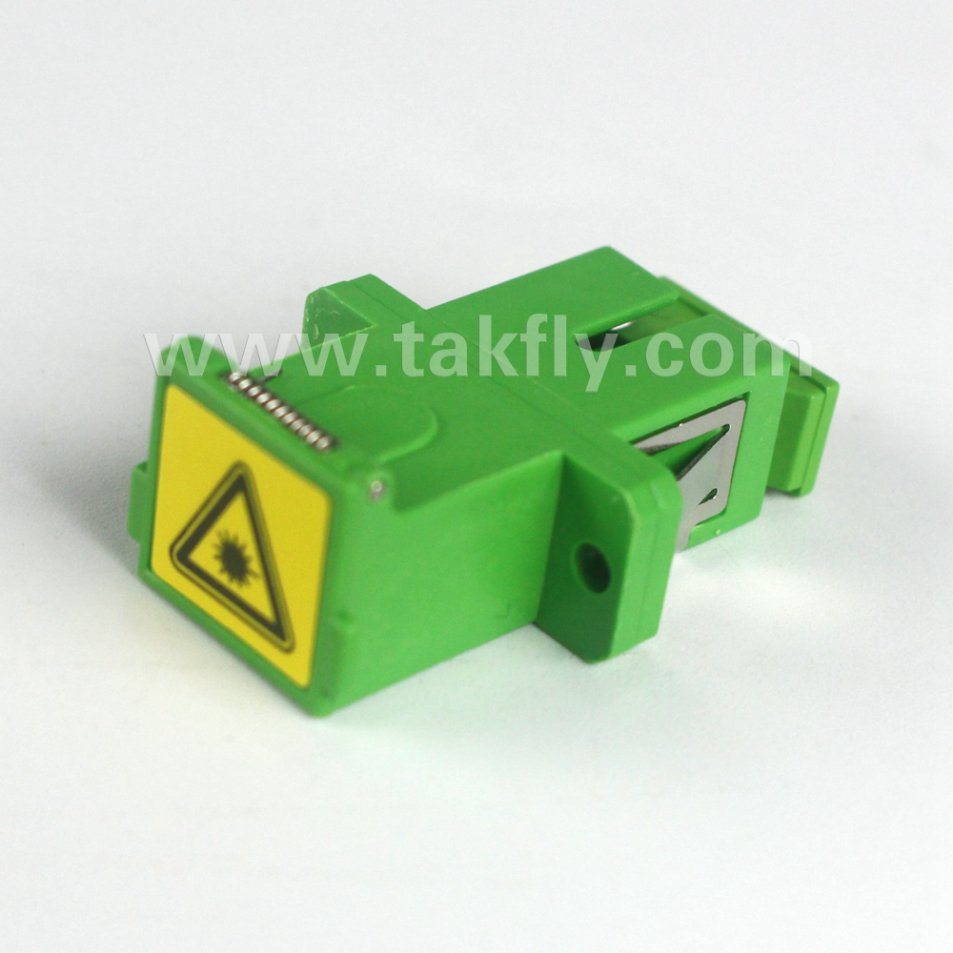

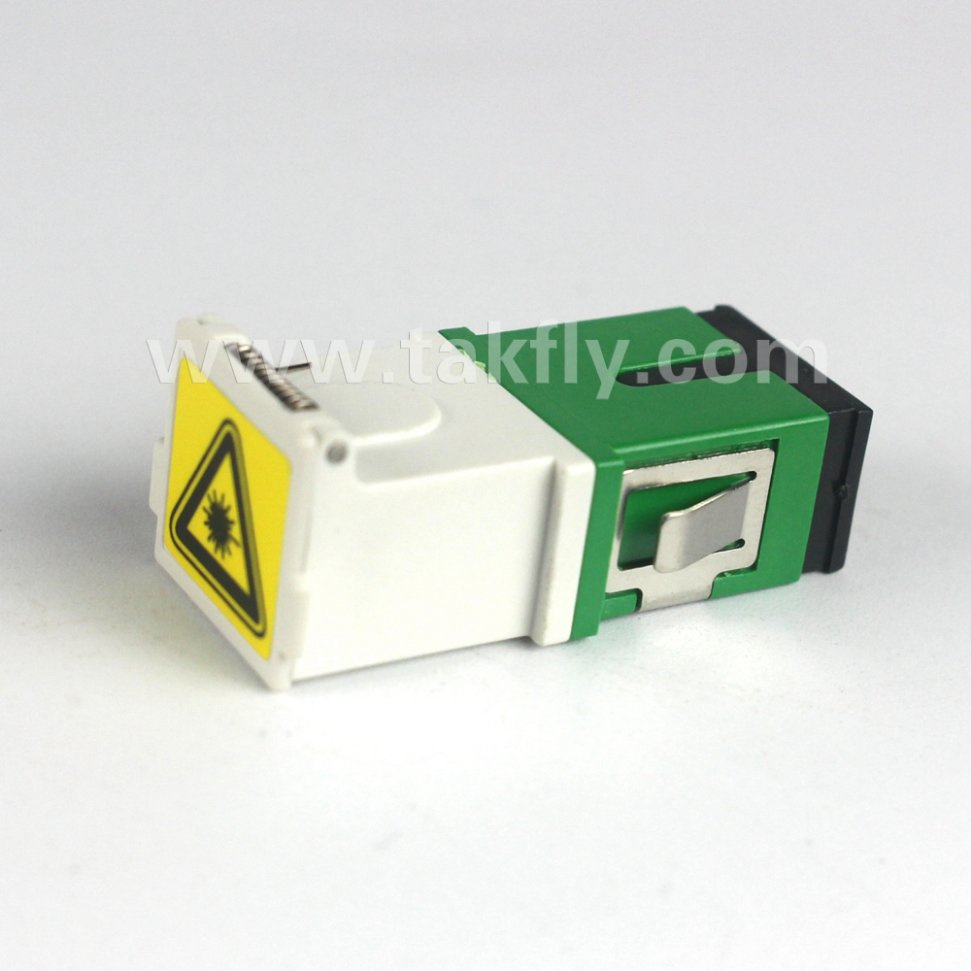

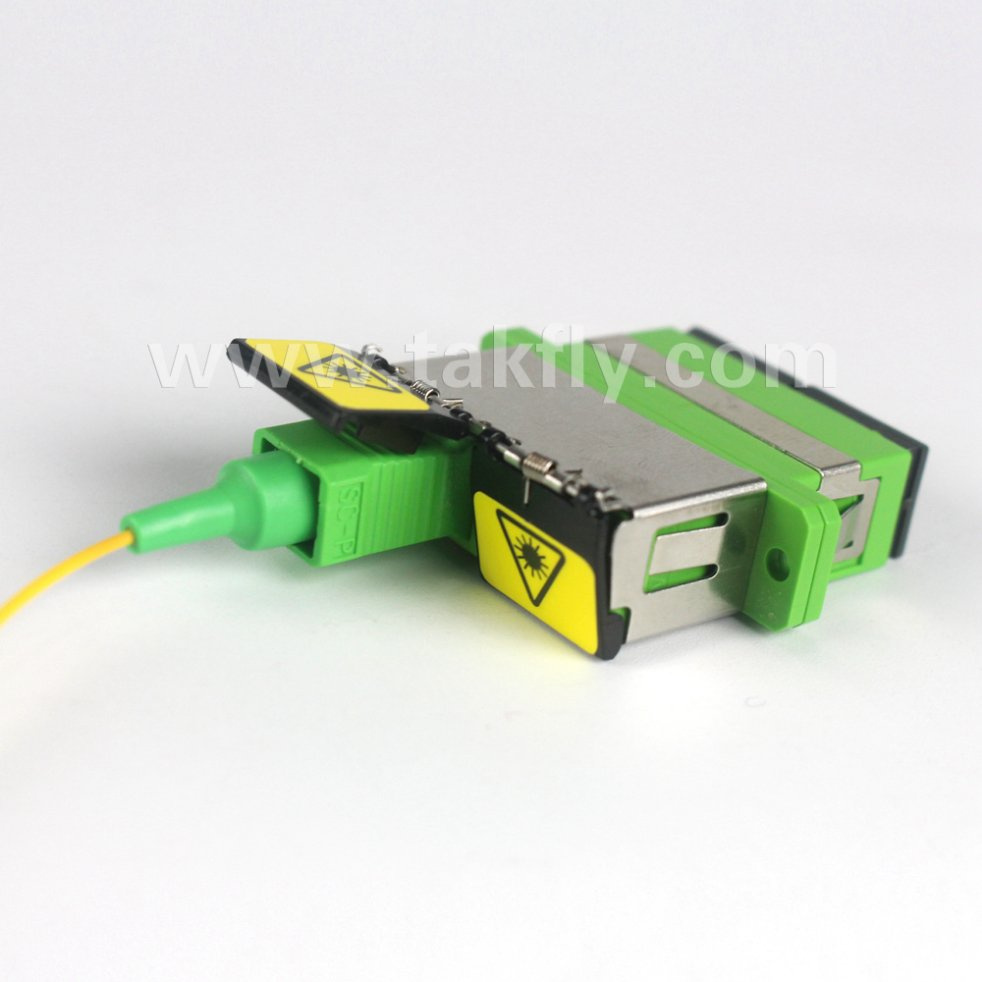

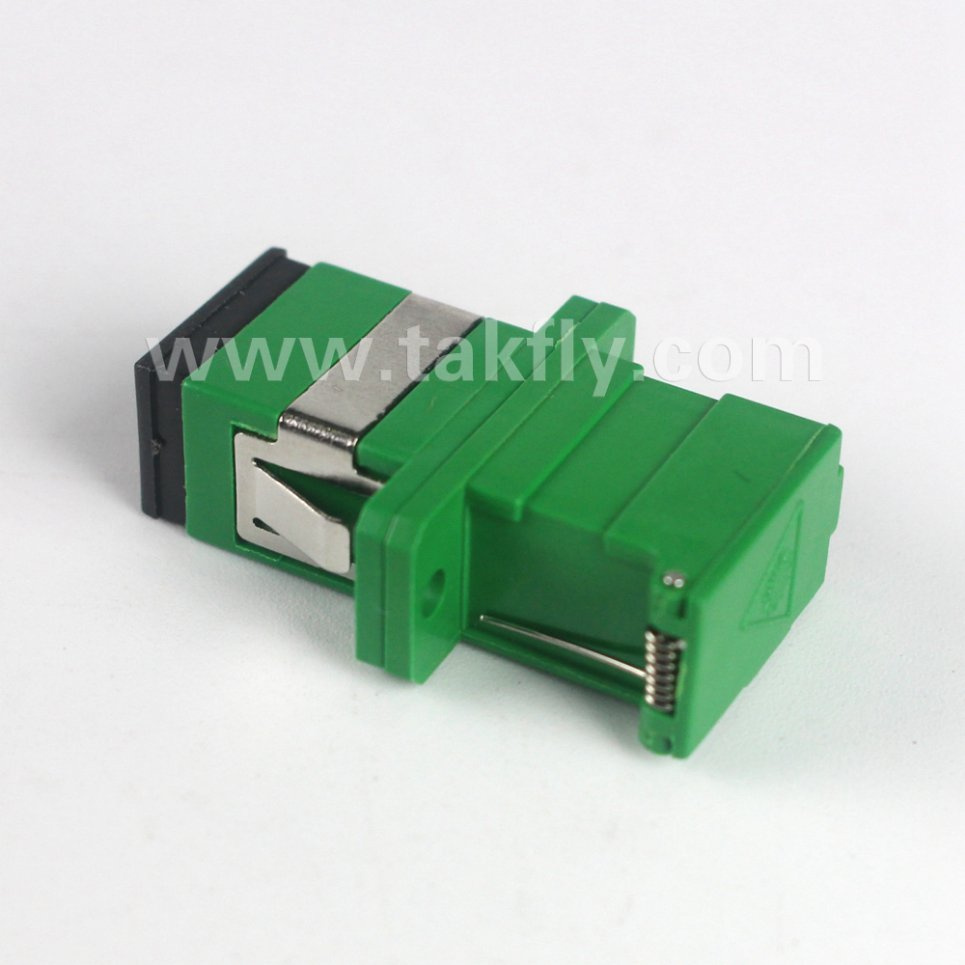

Laser Warning Labelled SC Shutter Fiber Optic Adapter
Features- Single mode simplex SC/UPC Adapter without flanges
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- SC2 8Port high density for patch panel mount applications
- Meet JIS5974 and bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Application - Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Parameter | Product | | SC Adapter |
| Mode | S.M(Zroz) | | M.M(P.B) |
| Insertion Loss | ≤0.1dB | | ≤0.3dB |
| Return Loss | ≥45dB | | -- |
| Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability(-40ºC~ | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| 85ºC) | | | |
| Operating Temperature | -40ºC~+85ºC |
| Storage Temperature | -40ºC~+85ºC |
| Resistence tensile | 40 N with a speed of 2 s/n |
| Duration of the test (with load) | 120 s |
Order Information| CODE | | SLEEVE | | TYPE | | HOUSING | | FIGURE |
| | | | | | | | | |
| H22 | 1. | Zirconia | 1. | Simplex | | 1.SM Blue | 1. | With Flange |
| | 2. | P.B | 2. | Duplex | | 2.MM Beige | 2. | Without Flange |
| | | | | | | 3.APC Green | 3. | Customized Designs |
| | | | | | | 4.SM Metal | | |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
