Laser Welding Machine with Movable Table

Laser Welding Machine with Movable Table
Price: US $ 12800/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: DP-W-D01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Dp-Weld-Series
CNC Yes Or Not: Automatic
Condition: New
Power: 10watt, 20watt, 30watt,50watt
Export Markets: Global
Engraving Machine Type: Laser Engraving Machine
Laser Type: Fiber Laser
Current: AC
Usage: Metel, Plastic

Product Description

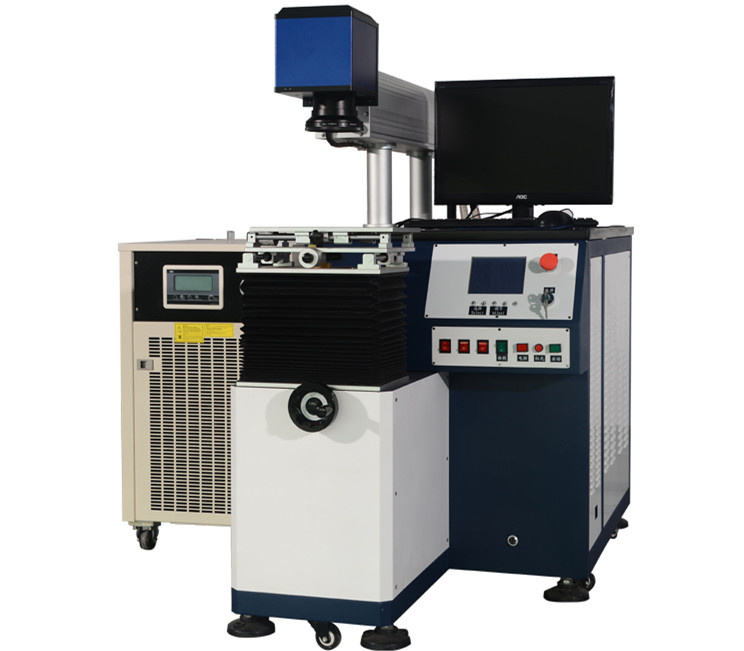

Two axis automatic laser welding machine

Device configuration:
PartsAmountOriginMark
YAG Laser source1SETENLANDImported ceramic cavity
Laser power supply1SETSHENZHEN
YAG crystal1PCSBEIJING
Automatic laser welding control software1SETWUHANForce Mega CNC
Computer1SETSHENZHEN19 inch liquid crystal display
XY cross combination precision linear translation table1SETSHENZHENGuide rail screw HWIN/TBI
Monitoring system(CCD)1SETSHENZHEN20 times HD surveillance

Precision refrigerating machine(2P)1UNITSHENZHENDapeng customized
Water temperature detection and protection system1SETSHENZHENDapeng customized
Indicator locator1SETXIANDapeng customized

2,Equipment parameters:
Technical parameter
Laser Power200W
Laser wavelength1064nm
Pulse width0.3-20ms
Pulse frequency1-100Hz
Beam diameter(min)0.2mm
Welding solution pool(min)0.1mm
Table travel(mm)300mm×200mm
Weld depth3mm
Control systemPCorPLC
Power consumption of the whole machine6KW
Power demand220V/50Hz/30A
Aiming and positioningRed Light
Cooling modeWater cooling
System outline dimension(L×M×Hmm)
Cooling system820×580×1050mm
Host size1550×650×1200mm

or

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
