| Prod Model: |
LGSWITCH |
| Rating: |
20A 3/4HP 125VAC 16A 1HP 250V AC VDE(ENEC) |
| Initial Contact Resistance: |
20m Max. |
| Terminal Base: |
PA66/PC |
| Operation Force: |
5~8n |
| Endurance: |
30, 000 Cycles |
| Usage: |
Toys |
| Standard: |
Standard |
| Lamp: |
Without Lamp |
| Color: |
Black |
| Certification: |
VDE CQC UL ENEC Emko |
| Condition: |
New |
Product Description
Technical Data (High Inrush current:90A,140A)
Electrical rating |
UL: 20A 3/4HP 125VAC 16A 1HP 250V AC
VDE(ENEC):10/15/16A250VAC
CQC: 16A 250VAC |
Actuating force |
5~8N(dependent on different switch functions) | |
| |
Mechanical life endurance |
3x104 cycles |
Flammability |
UL94 V-2 | |
Electrical life endurance |
1x104 cycles |
Material of housing |
PA66 | |
Contact resistance |
<20mΩ (initial) |
Material of rocker |
PA66/PC | |
Insulation resistance |
>1000MΩ (500V DC between open contacts) |
Contacts |
Silver alloy | |
Dielectric strength |
>1500V / minutes |
Terminal |
Brass (Silver Plated) | |
Ambient temperature |
-10~+85 |
Temperature rise at the terminal |
Max 30, (UL1054) | |
Storage temperature |
-10~+85 |
Solder ability of terminal |
Max 350, 3s (no pressure may be Placed on the terminals when soldering by hand) | |
Atmospheric humidity |
Max.85% |
Product Description
Details:
Packaging
250PCS in a small box with the size 350*215*150mm.
1500PCS in a big carton with the size 450*360*480mm
All the goods will be packed by PVC box.

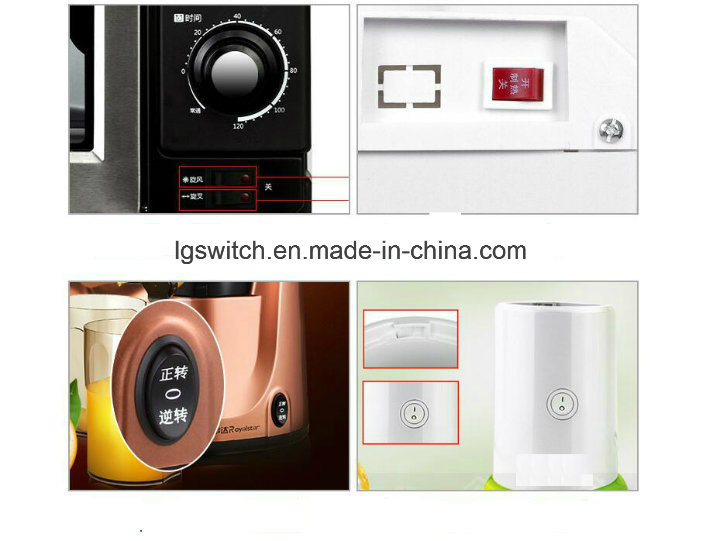

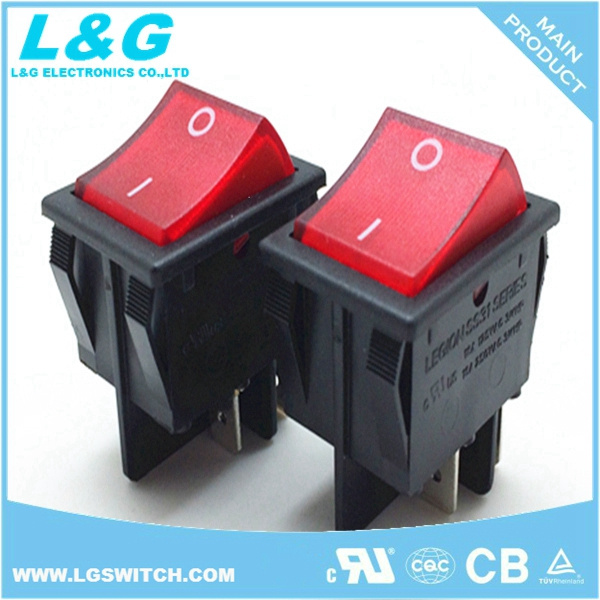

Power rocker switch used for ATX switching power supply, UPS, test equipment, audio & office equipment etc.

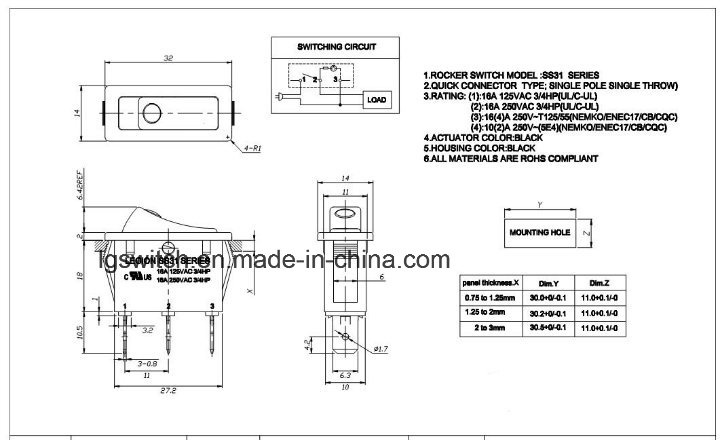

Product attributesplace of origin: Guangdong China (mainland)brand name: Legionmodel number: Ss31max. Current: 16amax. Voltage: 250vmechanical life: 10000certificates: UL, CSA, VDE, enecpanal size: 33*22mmrohs: Withdetailed descriptionpower rocker switch specifications & features:
Rating: 16A 125/250VAC(cUL); 16A 125/250VAC(cUL); 16(4)a 250V-t85/55(VDE, enec10)
Initial contact resistance: 20m ohm max.
Insulation resistance: 100mω Min. 500VDC
Withstand voltage: 1000VAC for 1 minute
Operation force: 500± 200 gf
Endurance: 10, 000 cycles

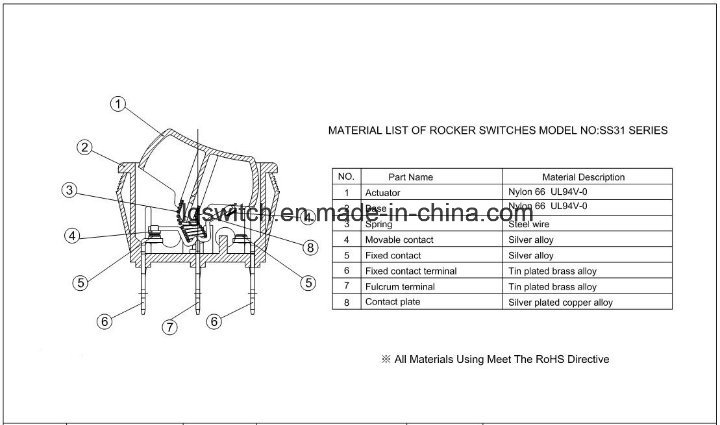

Material:
Terminal base: Nylon 66(UL 94V0)
Actuator: Nylon 66(UL 94V-0)
Spring: Stainless steel wire
Contact: Copper pickling
Terminal: Brass/silver plated
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

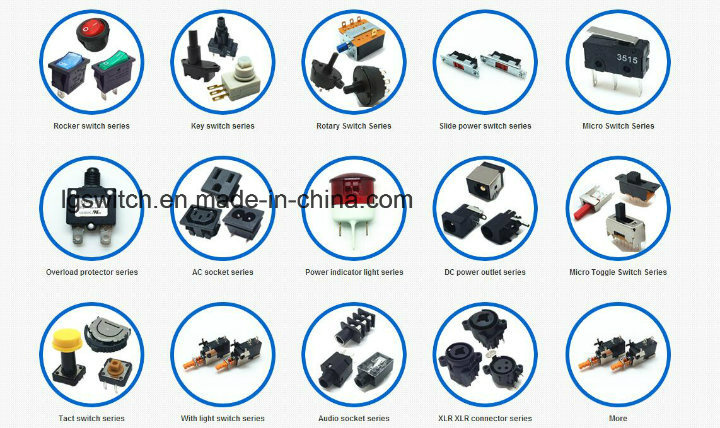

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
