Latest Design Rotary Cam Switch

Name: Latest Design Rotary Cam Switch
Brand: all-electronics-online.com
SKU: 678406355
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKG1-20A/3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard:	Standard
Condition:	New
Rotary Number:	Single Button
Operation:	Knob
Certification:	CE
Usage:	Machinery

Product Description

KRIPAL IS THE ONLY ONE WHO MAKE THIS ITEM.

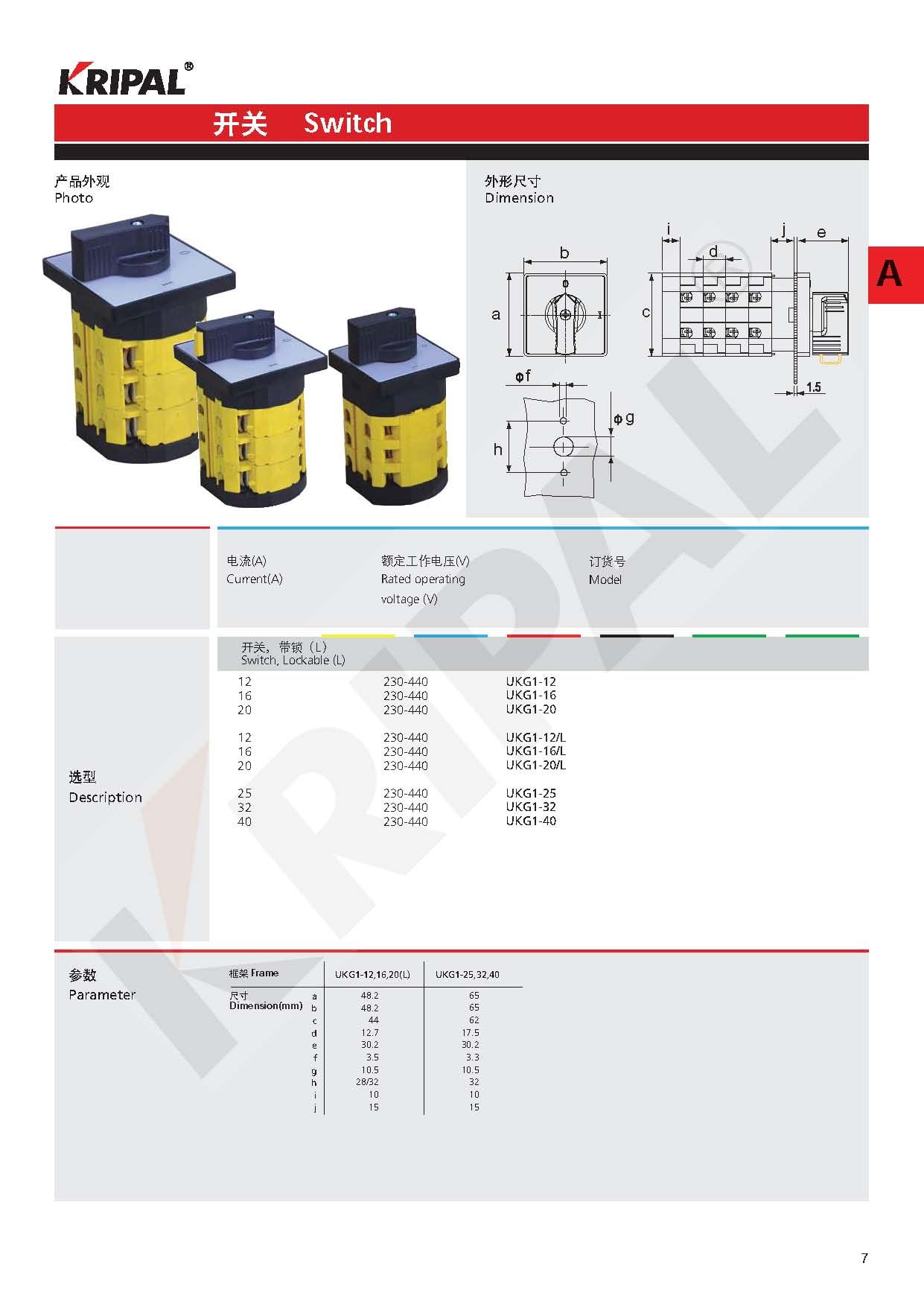

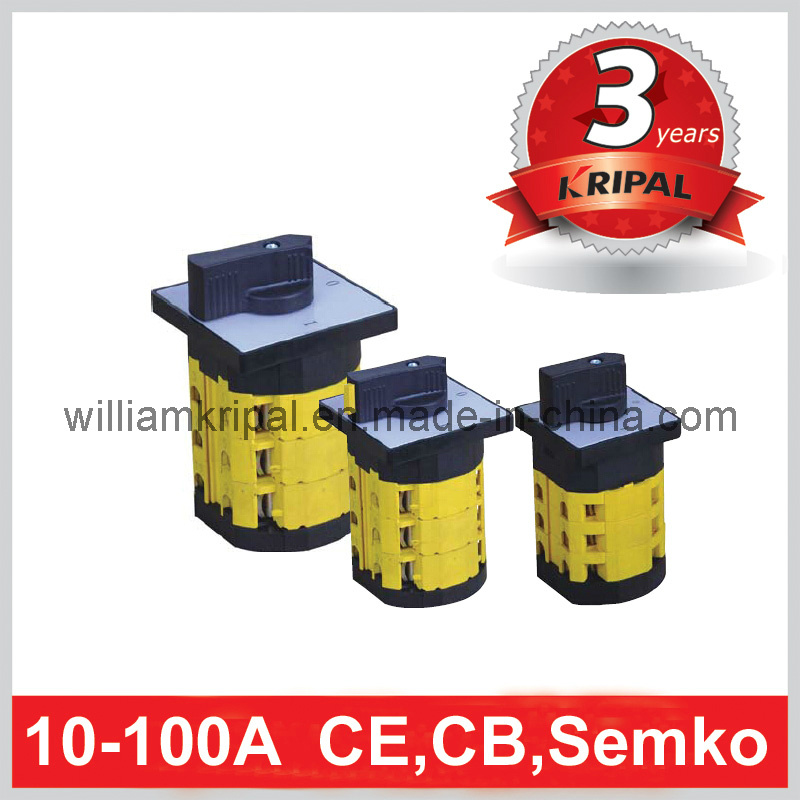

Rotary Cam Switch

1. Poles: 2P, 3P, 4P, 5P

2. Rated current: 12A, 16A, 20A, 25A, 32A, 40A

3. 90° switching angle

4. Forced open contacts

5. Finger protected (degree of protection up to IP20)

6. Fulfills the load break requirements up to 690 V and 1000 V

7. Terminal screws in open position

8. Black operation lever, Grey panel, Yellow body

9. Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches

10. Our products are designed, manufactured and tested according to the following standards: EN 60947, EN 60204-1, IEC 60947, IEC 60204-1

11. Certificate: CE, ISO9001:2000

12. Samples: provided freely

13. Warranty: 3 years; every item is tested before delivery, professional testing lab in factory

14. Lead time: 20 days and depend on ordering quantity

15. ODM, OEM: acceptable; mould toolings are finished in our own mould tooling center

Electrical characteristics of the standard EN 60947-3

Rated operating voltage Ue

690

Rated insulation voltage Ui

690

Rated impulse withstand voltage Uimp

Conventional thermal current Ith

Conventional enclosed thermal current as the

Frequency

50/60

AC-21ALight-overload

690V

Switching load

AC-22AMixed light overload switch

690V

Load and inductive load

Single phase-2P

110V

A/kW

12/1, 1

14/1, 5

18/2

20/1, 5

25/2, 2

35/3

230V

A/kW

12/2, 2

14/3

18/4

25/4

30/5, 5

35/6, 5

AC-23A

230V

A/kW

10/3

13/4

16/5

25/7, 5

30/9

35/11

driven periodically switch Three phase-3P

400V

A/kW

10/5, 5

13/7, 5

16/9

22/11

27/15

32/18, 5

500V

A/kW

10/7, 5

14/10

16/11

22/15

27/18, 5

32/22

690V

A/kW

10/7, 5

14/10

16/12, 5

16/15

20/18, 5

25/22

Single phase-2P

110V

A/kW

10/0, 75

12/11

16/1, 5

16/1, 1

20/1, 5

30/2, 5

230V

A/kW

10/2

12/2, 2

16/3, 5

20/3, 7

25/4

30/5, 5

AC-3squirrel cage motor starting

230V

A/kW

8/2, 2

10/3

12/4

18/5, 5

23/7, 5

27/9

(Running in the process of interruption) Three phase-3P

400V

A/kW

8/4

10/5

10/6

16/7, 5

20/11

27/15

500V

A/kW

8/5

10/7, 5

12/8

16/11

20/15

27/18, 5

690V

A/kW

6/5, 5

8/7, 5

10/9

12/11

16/15

20/18, 5

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
