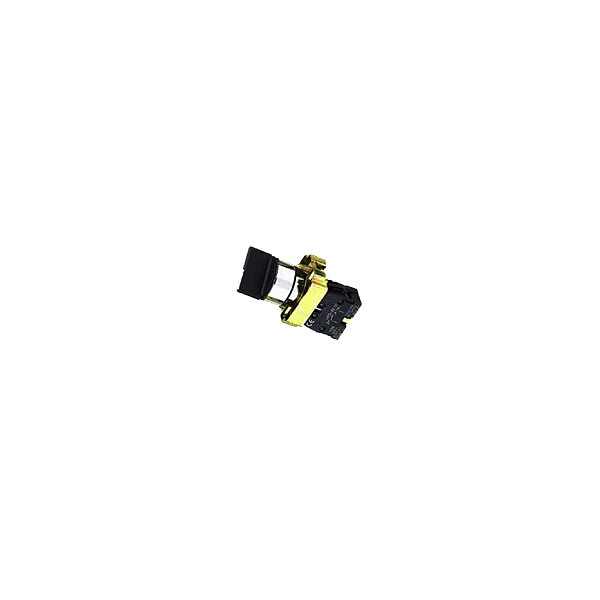

Lay5 Push Button & Indicator Series-1

Name: Lay5 Push Button & Indicator Series-1
Brand: all-electronics-online.com
SKU: 766137535
Availability: InStock
Rating: 4.8 (42 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

Application:
Having superior dynamic-heating ability, Modular Indicator is mainly used as a main switch for both terminal assembly electric equipment case, and illumination assembly case, and to control various motor and small power electric equipment as well, it has no function of protection of overload and short-circuit.

Push button& Indicator

Description

Contact

Circuit

Color

Type

LAY5-BD21

LAY5-BD33

LAY5-BJ21

LAY5-BJ33

LAY5-BG21

LAY5-BG33

LAY5-BL8325

LAY5-BL8425

LAY5-BL9325

LAY5-BL9425

LAY5-BW3361

LAY5-BW3462

LAY5-BW3371

LAY5-BW3432

LAY5-BW3441

LAY5-BW3351

2 Position stay put	N/O	Standard handle	LAY5-BD21

	N/O + N/C	Standard handle	LAY5-BD25

3 Position stay put 2 Position 1 sping return from right to left 3 Position2 spring teturn to centre	N/O + N/C	Standard handle	LAY5-BD33

	N/O	Standard handle	LAY5-BD41

	N/O + N/C	Standard handle	LAY5-BD45

	N/O + N/O	Standard handle	LAY5-BD55

2 Position stay put	N/O	Long handle	LAY5-BJ21

	N/O + N/C	Long handle	LAY5-BJ25

3 Position stay put 2 Position 1 sping return from right to left 3 Position2 spring teturn to centre	N/O + N/O	Long handle	LAY5-BJ33

	N/O	Long handle	LAY5-BJ41

	N/O + N/C	Long handle	LAY5-BJ45

	N/O + N/O	Long handle	LAY5-BJ53

3 Position key stay put 3 Position key 2 spring return to centre	N/O	LH position	LAY5-BG21

	N/O + N/C	LH position	LAY5-BG25

	N/O + N/C	LH and RH position	LAY5-BG45

	N/O	LH and RH position	LAY5-BG41

3 Position key stay put 3 Position key 2 spring return to centre	N/O + N/O	Centre position	LAY5-BG33

	N/O + N/O	LH and RH positon	LAY5-BG53

1 flush green pushbutton 1 flush red pushbutton IP40	N/O + N/C	Green	LAY5-BL8325

		Red

Without pilot light

1 flush green pushbutton 1 flush red pushbutton marked IP40	N/O + N/C	Green I	LAY5-BL8425

		Red O

1 flush green pushbutton 1projecting red pushbutton unmarked IP65	N/O + N/C	Green	LAY5-BL9325

		Red

Without pilot light

1 flush green pushbutton 1projecting red pushbutton unmarked IP65	N/O + N/C	Green I	LAY5-BL9425

		Red O

Direct bulb supplied	N/O 220-240V	White	LAY5-BW3161
		Green	LAY5-BW3361
		Yellow	LAY5-BW3561
		Blue	LAY5-BW3661

Direct bulb supplied

N/C
220-240Vt

Red

LAY5-BW3462

Via integral resistor BA9s, 130V bulb supplied	N/O 220V250V N/C	White	LAY5-BW3171
		Green	LAY5-BW3371
		Yellow	LAY5-BW3571

		Red	LAY5-BW3472

Via integral transformer 1.2VA BA9s, 6V bulb supplied	N/O 110V/50Hz 110-120V/60Hz N/C	White	LAY5-BW3131
		Green	LAY5-BW3331
		Yellow	LAY5-BW3531

		Red	LAY5-BW3432

Via integra ltransformer 1.2VA BA9s, 6Vbulb supplied	N/O 220/50Hz N/C 240V/50Hz N/O	White	LAY5-BW3141
		Green	LAY5-BW3341
		Yellow	LAY5-BW3541
		Red	LAY5-BW3442
		Red	LAY5-BW34942
		Green	LAY5-BW33941
		Yellow	LAY5-BW35941

Via integra ltransformer 1.2VA BA9s, 6Vbulb supplied	N/O	Green	LAY5-BW3351
		Yellow	LAY5-BW3551
		Red	LAY5-BW3452
		Red	LAY5-BW34932
		Green	LAY5-BW33931
		Yellow	LAY5-EW35931
