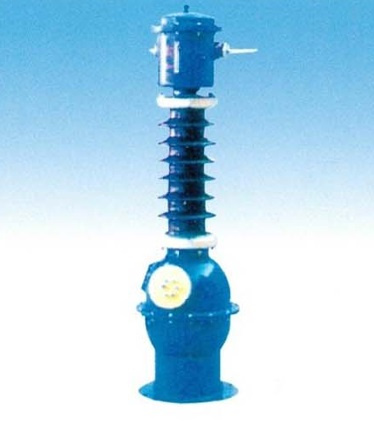

Lb6-35 CT Current Transformer Instrument Transformer
| Price: |
US $ 45/Piece |
| Min Order: |
30/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LB6-35 |
| Material: |
Plastic/Epoxy Resin/Copper/Oil |
| Color: |
Blue |
| Net Weight: |
40kg |
| Optional Packing: |
Wooden/Carton |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Three |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly.Specifications
LB6-35 type current transformer
1)Current transformer
2)CE certificated
3)ISO9001 factory- Technical data:| Type | Rated transformation ratio(V) | Accuracy
Classes combination | Accuracy class and rated output COSØ=0.8 | 1s thermal current(KA) | Rated dynamic current(KA) |
| 0.2 | | | | |
| LB6--35 | 5/5 | 0.2S/10P20/10P20
0.2/10P20/10P20
0.5/10P20/10P20 | 15 | 30 | 40 | 40 | 30 | 0.5 | 1.28 |
| 10/5 | 1 | 2.53 |
| 15/5 | 1.5 | 3.83 |
| 20/5 | 2 | 5.1 |
| 30/5 | 3 | 7.65 |
| 40/5 | 4 | 10.2 |
| 50/5 | 5 | 12.75 |
| 75/5 | 7.5 | 19.13 |
| 100/5 | 10 | 25.5 |
| 150/5 | 15 | 38.25 |
| 200/5 | 20 | 51 |
| 300/5 | 30 | 76.5 |
| 400-2000/5 | 40 | 102 |
Note: any special requirements can be negotiate with us.Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switch Console, Column intelligent vacuum circuit breaker, indoor vacuum switch, HV/LV current/voltage transformers, High voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
