LC/APC Sm Simplex 0.9mm Fiber Optic Connector

Name: LC/APC Sm Simplex 0.9mm Fiber Optic Connector
Brand: all-electronics-online.com
SKU: 779394825
Availability: InStock
Rating: 5 (95 reviews)

Price:	US $ 0.45-0.55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTL-CLCAS9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Boot:	2.0mm,3.0mm,0.9mm
Connector:	Upc,APC
Feature:	Singlemode or Multimode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Connector Type:	LC/APC

Product Description

Product Name: LC/UPC Fiber Optic Connector

LC stands for Lucent Connector. The LC is a small form-factor Fiber optic connector.
The LC Connector uses a 1.25 mm ferrule, half the size of the ST. Otherwise; It is a standard ceramic Ferrule connector. The LC has good performance and is highly favored for single mode.

Features:

Low insertion loss and high return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignmentconctor

Applications:

Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Availability:

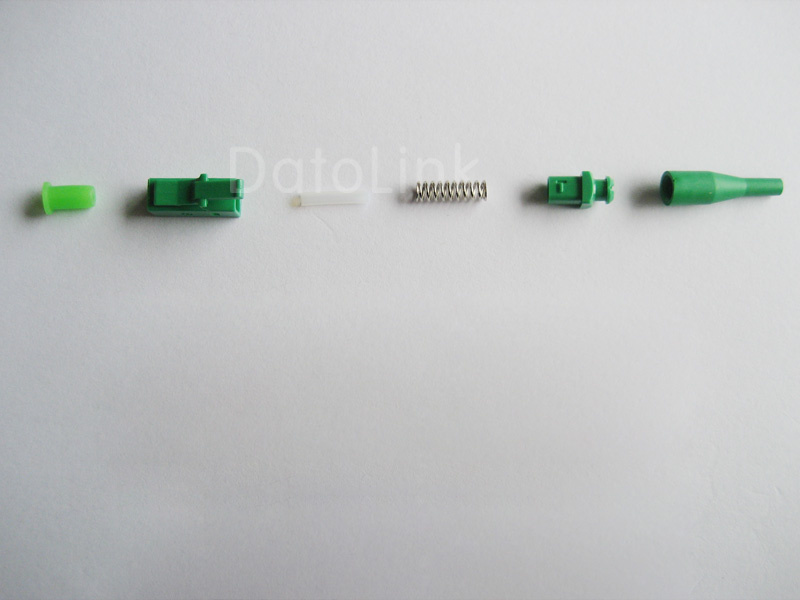

-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for SC and LC duplex connectors
Housing kits without ferrule are available.
-PC, UPC and APC are available

Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80 degree	From -40 to + 80 degree
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

Packaging & Delivery

Packaging Detail: Transparent plastic bag or upon customer's request
100 pieces /plastic bag
Delivery Detail: Around 7 days after receipt of formal order

Why you choose us ?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent Datolink or your own brand box/roller design and package
4.Stirictly conform to ISO, Rohs CE certificates
5.Long time experience at domestic and export market

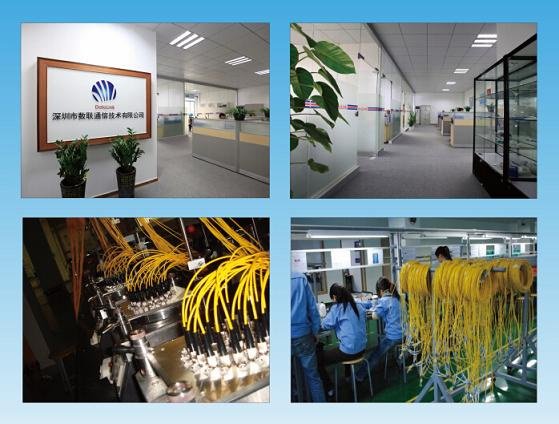

Welcome you visit our factory !
Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us !

FAQ :
1.Are you factory ?
Yes,we are factory ,our factory located in Shenzhen ,Longgang district .
2.What products your factory mainly produce ?

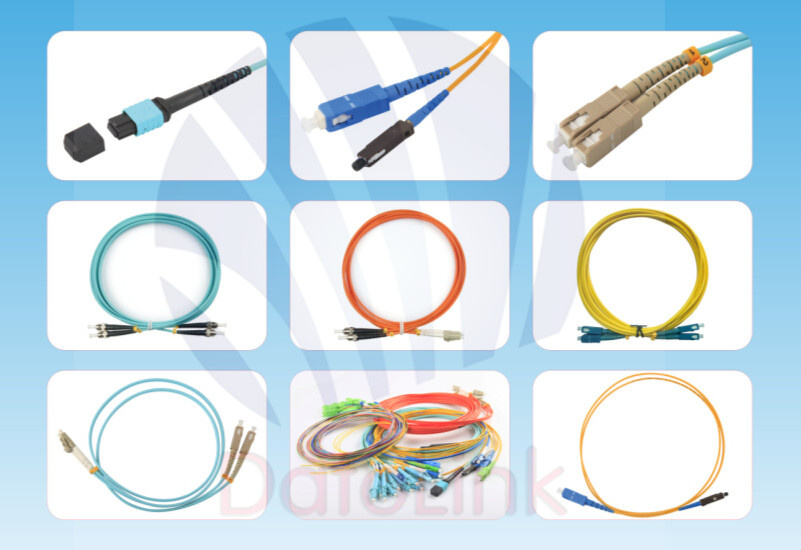

Our factory mainly produce LC,SC,FC,ST Connector patch cord ,pigtail ,SFP transceiver module and other fiber optic components .

Datolink brand, OEM/OEM fiber optic patch cable manufacturer, factory in Shenzhen, China,more information ,please don't hesitate to contact us!

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
