LC Corning Fiber Patch Cord Loopback Low Loss at 0.2dB

Name: LC Corning Fiber Patch Cord Loopback Low Loss at 0.2dB
Brand: all-electronics-online.com
SKU: 824889035
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 1.95-3.25/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ROP-LC Corning Fiber Loopback
Jacket Color:	Yellow, Orange, Aqua or Customer Order The Color
Fiber Type:	Chinese Corning Fiber or U.S. Corning Fiber or Yof
Cable Length:	0.3m,0.5m,1m,3m,5m,10m,15m,25m or Customized
Cable Diameter:	0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm or 3.0mm
Out Jacket:	PVC, LSZH, Om3, Ofnr or Ofnp or Plenum
Fiber Models:	G.652D, G.657A1, G.657A2, G655, Om1,Om2,Om3,Om4.
Connections Insertion Loss:	0.2dB
Connections Return Loss:	55dB
Testing Control Standard:	100% Il&Rl Testing Before Every Shipment Loading.
Applications:	Fiber Distribution Frame; Network Equipment; Fiber
Application:	Fiber Optic Communication,Network, Cabling System
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	CCC
Sheath Material:	LSZH

Product Description

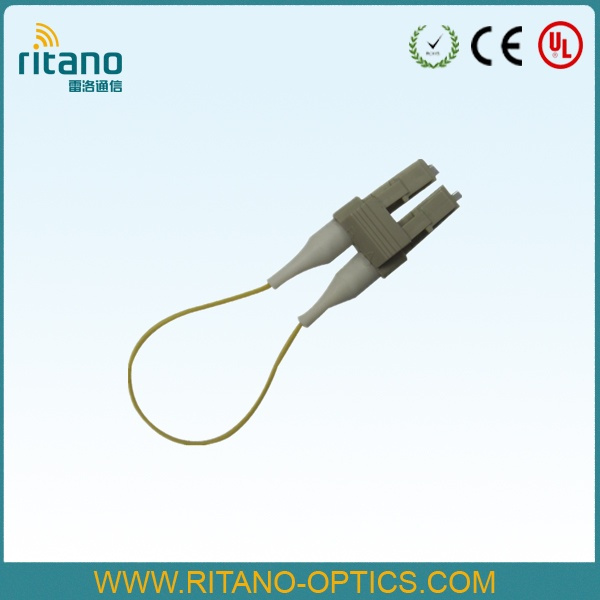

LC Corning Fiber Patch Cord Loopback low loss at 0.2dB

Application:
* Local area network,including FTTH,FTTX and FTTD;
* CATV system;
* Telecommunication networks
* Active device termination
* Local Area Networks (LANs)
* Data processing networks
* Test equipment
* Premise installations
* Wide Area Networks (WANs)
Features:
* Low insertion loss,high return loss;
* Good compatibility;
* High precision of mechanical dimensions;
* High reliability & stability;
* PC,SPC,UPC,APC optional,cable length optional;
* Single-mode cable:yellow, multi-mode cable:orange; optional available for other color
Specifications:
* Insertion loss:≤0.2dB
* Return loss:≥50dB(PC)
* Repeatable:0.1dB(1000)
* Temperature range:-40°~75ºC
* Simplex/Duplex patch-cord available

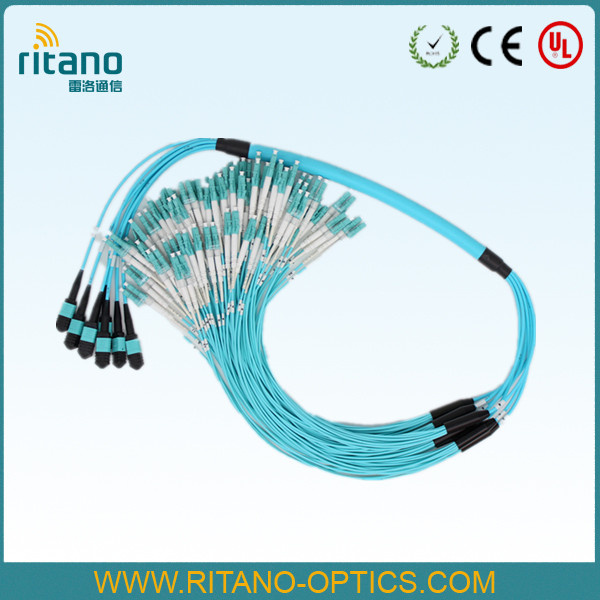

* Fan-out available;

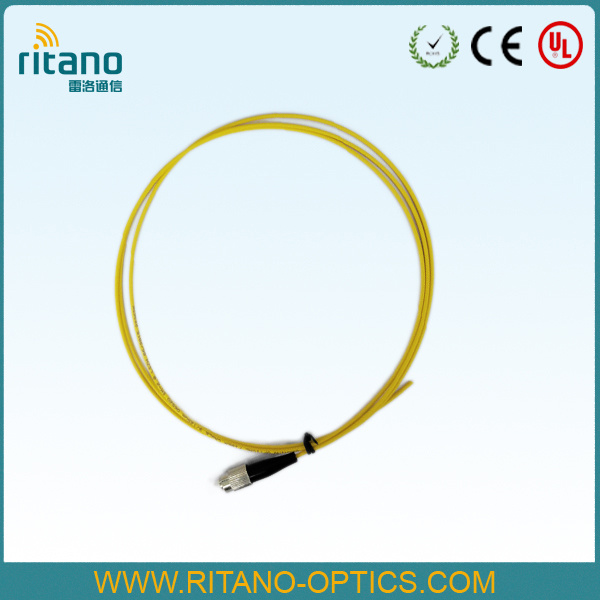

* Pigtail available;
* Various boot (cable) sizes available.

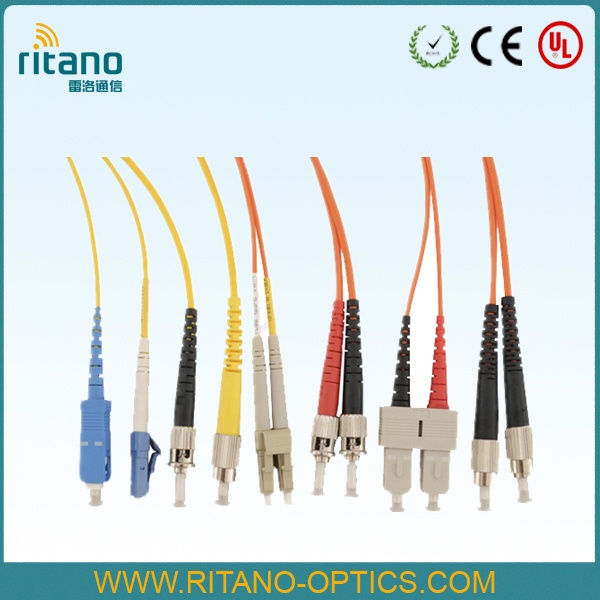

Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;
Ferrule End-face:PC,SPC,UPC,APC;
Core type:Single-mode(SM:9/125um),multi-mode(MM:50/125um or 62.5/125um);
Cable quantity:"1C"means one cores=simplex(SX)
Cable Diameter:3.0mm,2.4mm,2.0mm,1.8mm,1.6mm,0.9mm or customized;
Cable length:1,2,3meter or customized;
Cable type:PVC,LSZH,OM3,OFNR,OFNP.

What Ritano can offer:
* Quality always comes first;
* Standard quality tests check of all types of products before shipment;
* Responsible for after-sales service;
* Aiming to get repeat orders from 90% customer after the trial orders;
* Making progress with customers together.

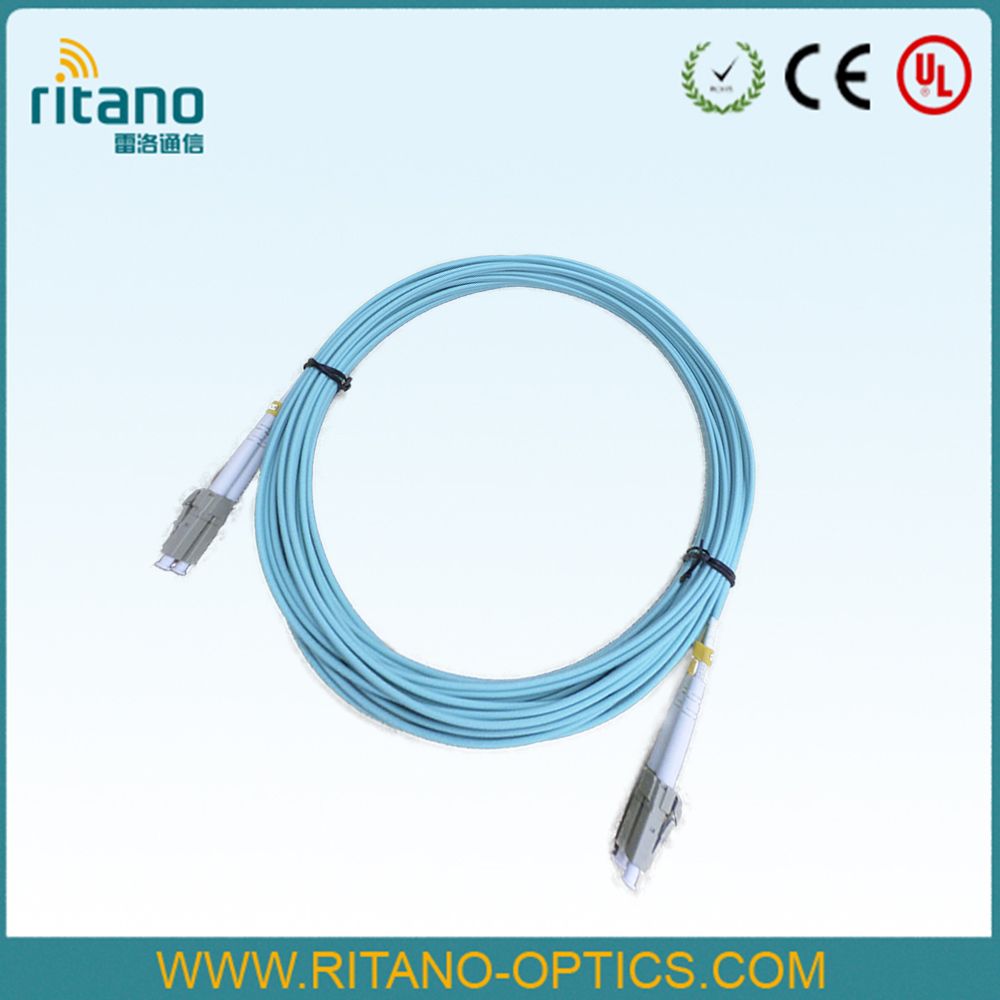

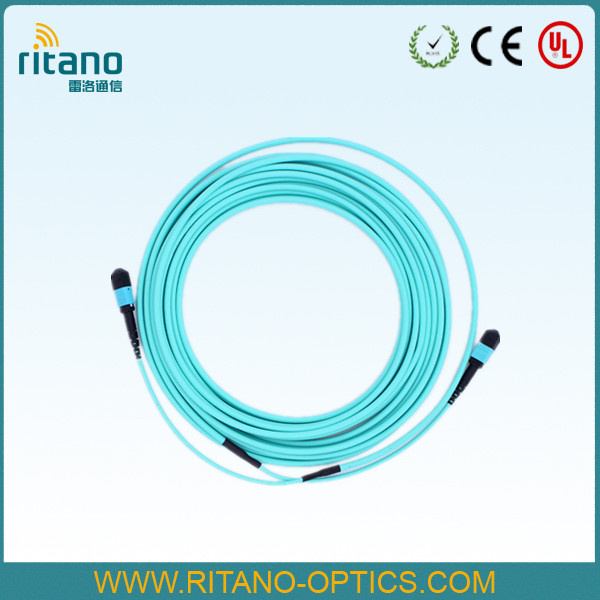

Other Similar Products:

Marks: 1.APC with green boot; RITANO OPTICS's standard as follows(we can also make by customer's requests).

Connector Type	SM/MM	Diameter	Simplex	Duplex	Marks
FC connector	SM	0.9mm	Blue boot	\	N/A
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Black boot	\
		2.0mm	Black boot	Red & Black boot
		3.0mm	Black boot	Red & Black boot
SC connector	SM	0.9mm	Blue boot	\	Duplex with clips
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Beige boot	\
		2.0mm	Beige boot	Red & Black boot
		3.0mm	Beige boot	Red & Black boot
LC connector	SM	0.9mm	White boot	\	Duplex with clips
		2.0mm	White boot	White boot
		3.0mm	White boot	White boot
	MM	0.9mm	Beige boot	\
		2.0mm	Beige boot	Beige boot
		3.0mm	Beige boot	Beige boot
ST connector	SM	0.9mm	Blue boot	\	N/A
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Black boot	\
		2.0mm	Black boot	Red & Black boot
		3.0mm	Black boot	Red & Black boot

Specifications subject to update without notice.

Ritano Optics Limited is a HongKong based manufactory and specialized to produce connectors and cable assemblies. Our manufactory approved the ISO-9001 quality guarantee system management authentication. Our products comply with the European RoHS Directive 2002/95/EC certification. Ritano is sincere desire to be a " Green partner" with our clients which protect our ecological environment together.

Our Main products including: Fiber optic cable, patch cords / pigtails, connectors, adapters, attenuators and coupler/PLC Splitters.

We concentrate on providing high quality products, the most competitive price, fast delivery date and best service to our clients. We ensure our products are reliability and durability because of our professional technology and experience. We have the experienced design team whom can create personalized products according to the client's design or requirement. Client's needs are our priority, and we grade client's approval and satisfaction as our biggest achievement. Our goal is to become the most reliable supplier to our clients. Ritano will bear in mind the concept of "Innovation, Quality, Efficiency and Service" and diligently makes great strides forward with clients in the near future
