| Prod Model: |
9/125 Patch Cord Cable |
| Fiber Optic Cable: |
Fiber Jumper |
| Fiber Patch Cord: |
Patch Cable |
| LC /FC Connector: |
Singlemode Fiber Cable |
| Wiring Devices: |
ODF |
| Condition: |
New |
| Connector Type: |
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect |
| Fiber Type: |
OS1, OS2, Om1, Om2, Om3, Om4 |
| Application: |
Communication |
| Connection Structure: |
LC |
| Certification: |
Ce, RoHS, ISO |
| Type: |
Fiber Optic Connectors |
| Sheath Material: |
PVC or LSZH |
Product Description
LC Duplex 9/125 Single-mode Fiber Patch Cord Cable
Description:
These high speed singlemode 9/125um duplex fiber optic patch cables are terminated with LC/APC fiber optic connectors on one end and SC/APC fiber optic connectors on the other end (LC/APC-SC/APC). Called Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers. Referred to as Subscriber Connectors, Square Connectors or Standard Connectors, these push-pull connectors are the most common choice for FTTH (fiber to the home) applications in use for Datacom and Telcom and most GBIC modules require this connector type.
Our extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.
Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
| | Singemode(UPC) | Singemode(APC) | Multimode |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.2db typical change, 1000 times mating |
| Operating Temperature | -45 to +85 degree |
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity:≤1.0um | 125.0+1/-0um, Concertricity:≤0.5um | 125.0um, Concertricity: ≤3.0um |
| 125.3+1/-0um, Concertricity:≤1.0um | 125.3+1/-0um, Concertricity:≤0.5um | 127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity:≤1.0um | 125.5+1/-0um, Concertricity:≤0.5um | 128.0um, Concertricity: ≤3.0um |
| 126.0+1/-0um, Concertricity:≤1.0um | 126.0+1/-0um, Concertricity:≤0.5um | |
Order information:
Fiber Optic Patch Cord: | FC/ | APC- | SC/ | UPC/ | SM/ | Ø3/ | L Meter/ | DX |
| (Number) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
.Plating material | PVC, LSZH |
| 1.Connector | FC,SC,ST,LC,MU,SMA,E2000... |
| 2.Inserted core cover | PC,UPC or APC |
| 3.Connector | FC,SC,ST,LC,MU,SMA,E2000... |
| 4.Inserted core cover | PC,UPC or APC |
| 5.Type | SM or MM |
| 6.Line diameter (mm) | Ø3, Ø2, Ø1.6, Ø0.9 |
| 7.Length (m) | L=1.2.3.4.......meter |
| 8.Classification | SX or DX |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

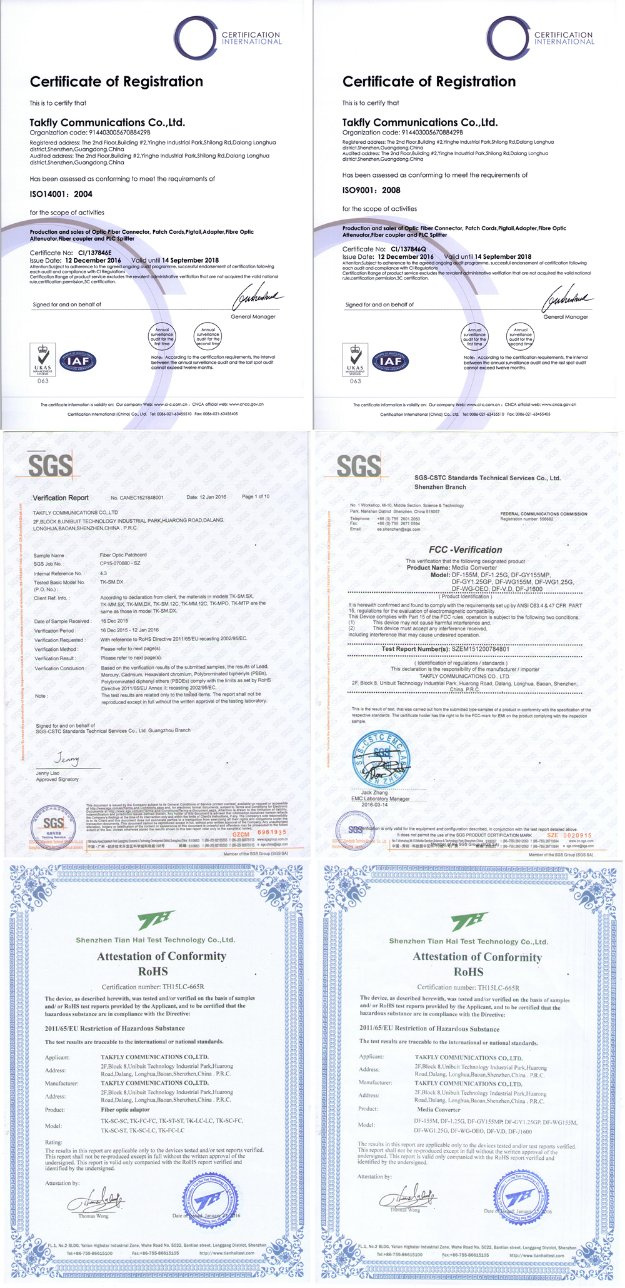

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

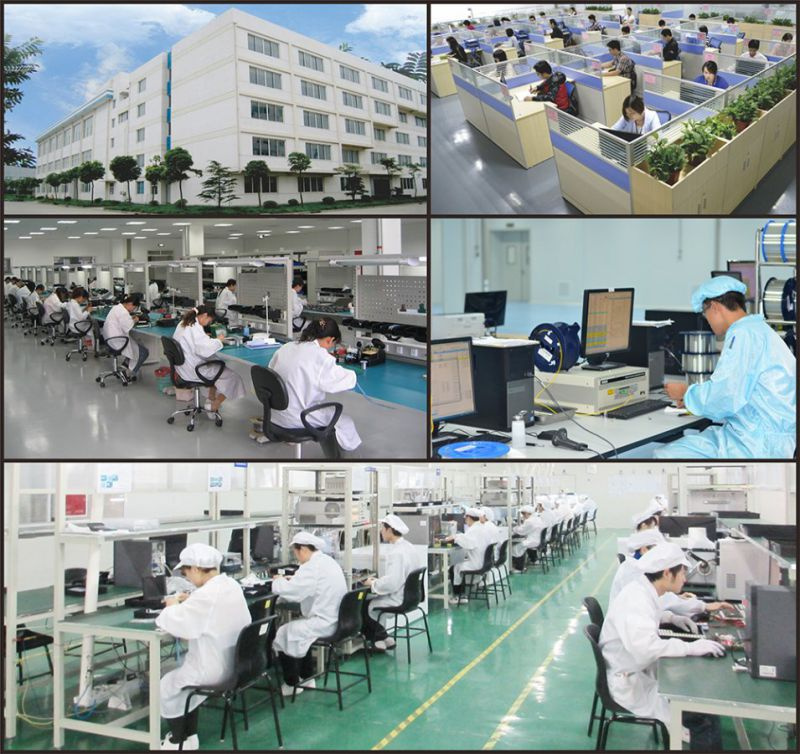

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
