| Prod Model: |
LC-LC Fiber Optic Patch Cord |
| Length: |
Customized Design |
| Color: |
Customized Design |
| Business Type: |
Manufacturer&Trading |
| Item Name: |
Om3 Fiber Patch Cord |
| Transmission Medium: |
Multimode |
| Structure: |
LC |
| Number Of Cores: |
Multi-Core |
| Connector Type: |
LC/Upc |
| Ferrule Endface: |
PC, Upc, APC |
Product Description

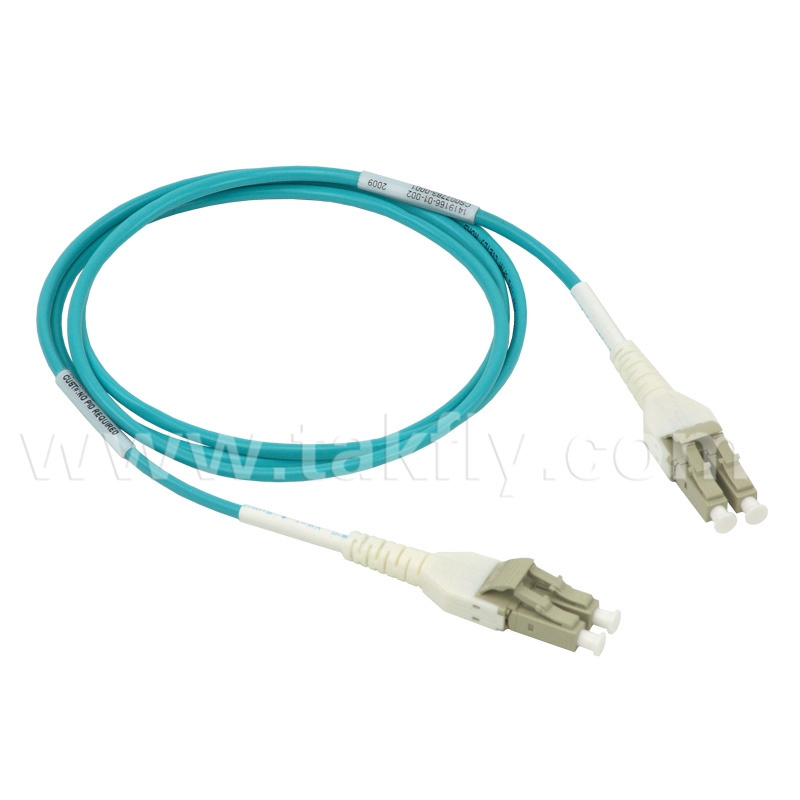

LC uniboot LC Duplex OM3 10G Aqua Optical Fiber Patchcord
Features:
LC Duplex Om3 10g Aqua
ANSI, IEC , TIA/EIA , NTT and JIS standard compatible
UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mmPrecision mechanical dimensions
Zirconia ferrule PC or APC UPC diameter125~128 um high concentricity
Single mode, Multimode and Angle PCMulti-piece type or one-piece type is available
All parts compliant with ROHS CE ISO9001
Application:
Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTH
Parameter:
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information:
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H01 |
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB / C&F
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, ETC.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
