| Prod Model: |
LC Duplex Fiber Adapter |
| Model No: |
Tk-W0021 |
| Ferrule Endface: |
PC/Upc/APC |
| Transmission Medium: |
Sm & mm |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Urn Loss: |
PC >45dB APC>60dB |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Attenuation Value: |
-41 3 5 10 15 20 25dB |
| Usage: |
Display |
| Output Type: |
AC or DC |
| Connection: |
Plug In |
Product Description
Product Description
Panelmount fiber optic lc duplex fiber adapter
1. Details:

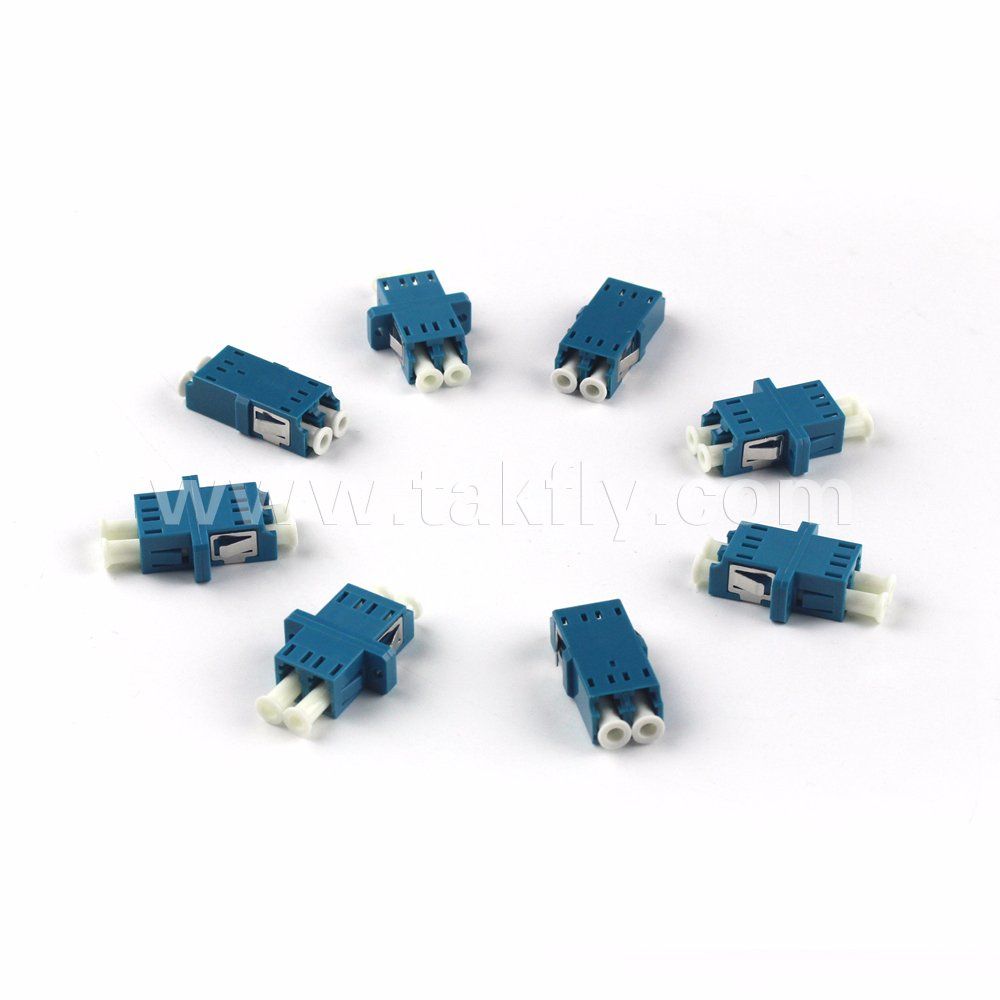

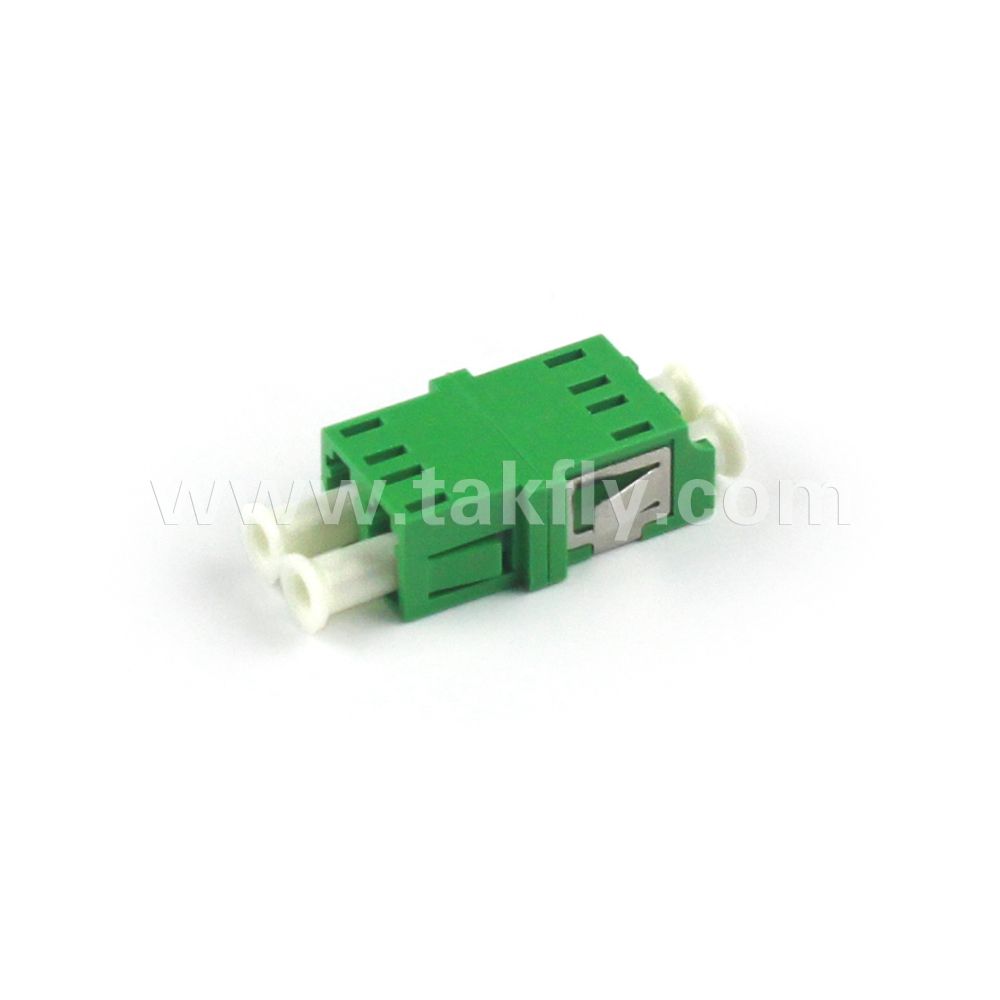

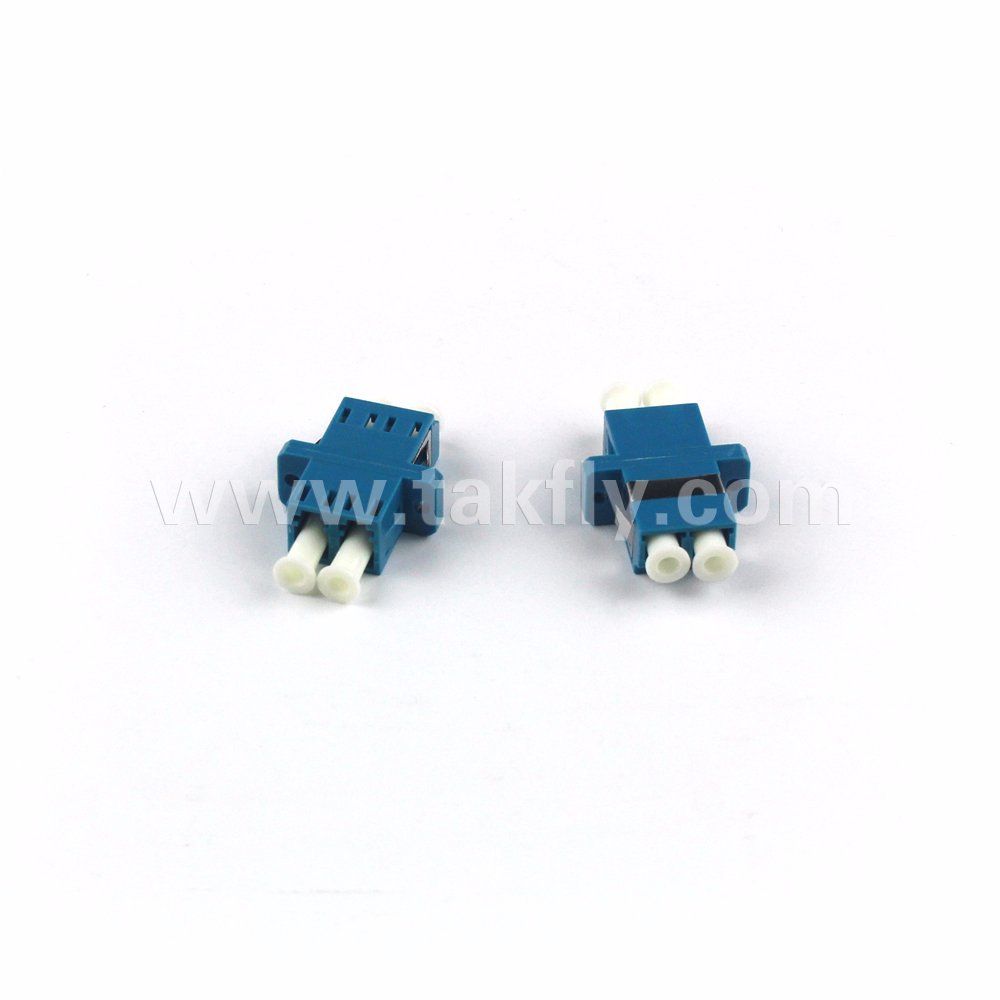

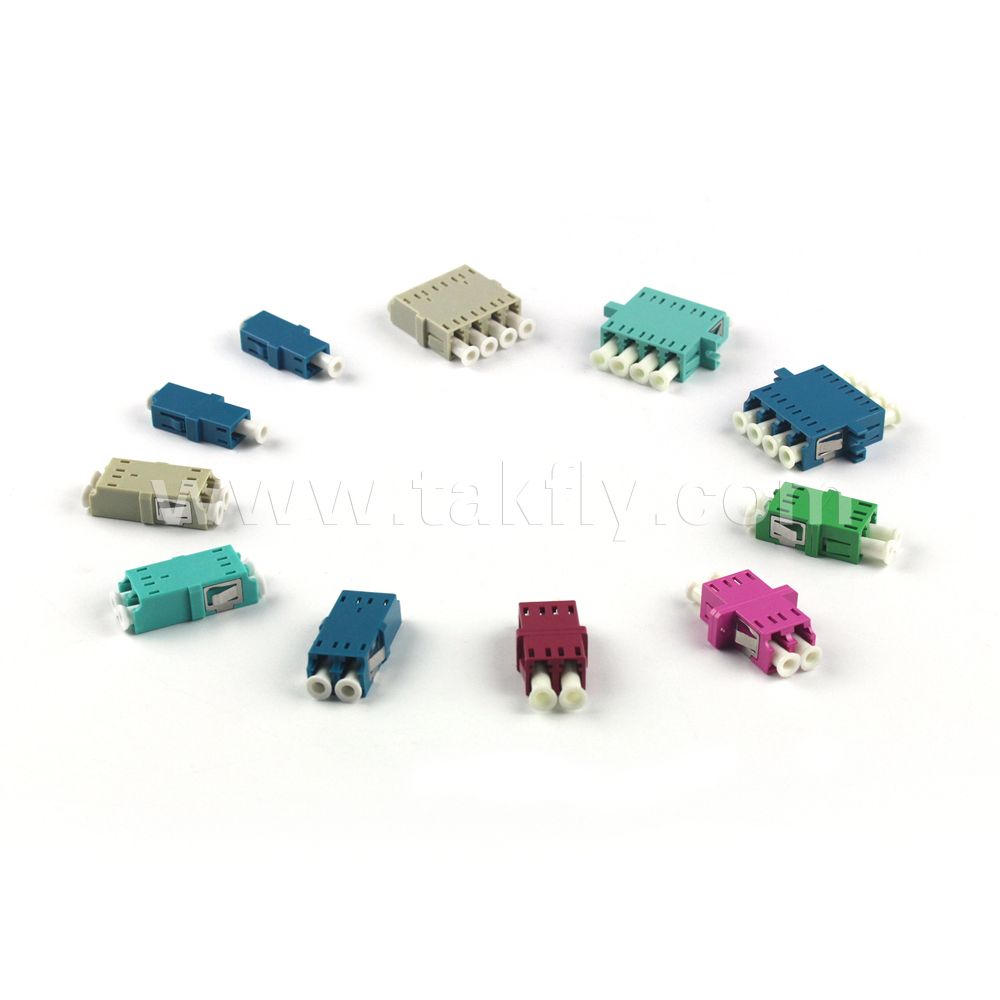

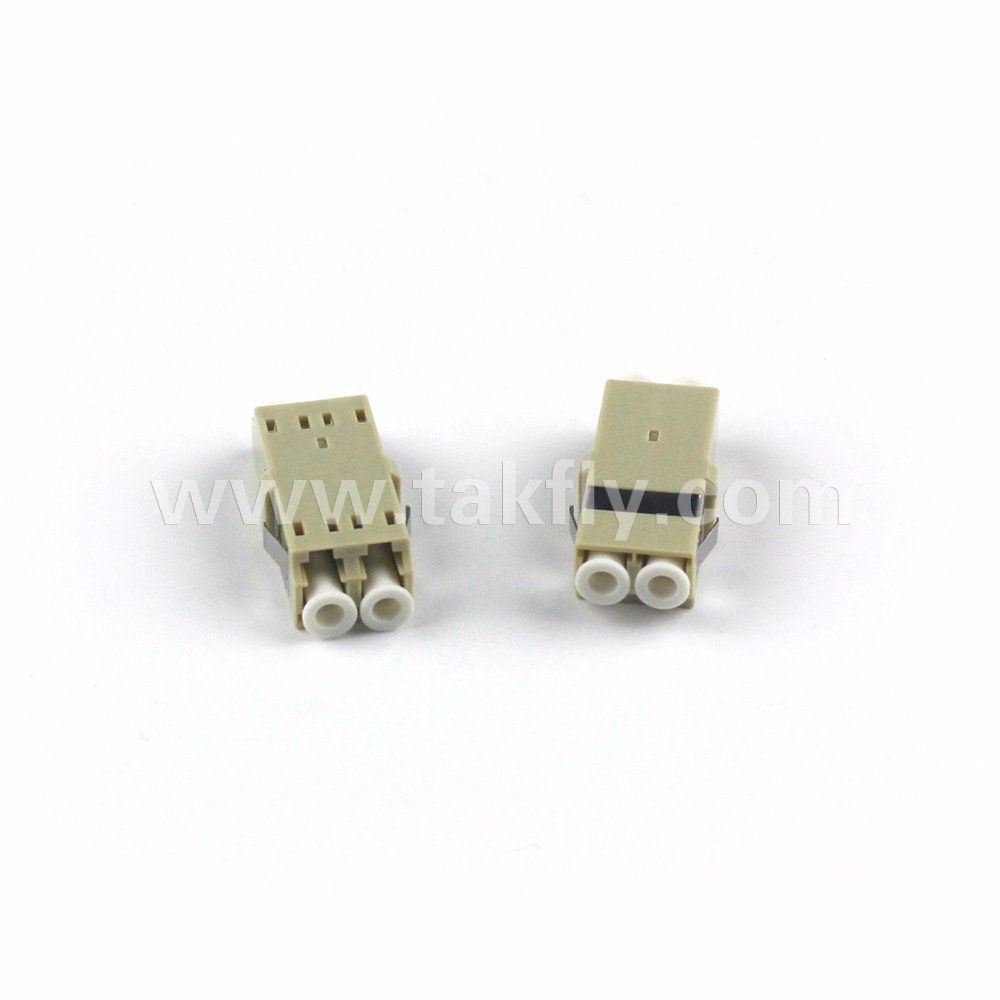

LC duplex fiber adapter
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.
2. Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 |
| SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Durability | Time | >1000 | >1000 | >1000 |
| Operating Temperature | degree | -40~75 | -40~75 | -40~75 |
| Storage Temperature | degree | -45~85 | -45~85 | -45~85 |
3. Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
4. Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry, our commissioners will promptly get in touch with the customers.
5. After Sale Service:
Takfly Communications Co., Ltd. Is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you. We are equipped with the good after service department and never escape our responsibility.
