| Prod Model: |
TK-LCCONN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Fiber Diameter: |
125( 657A / 652D ) |
| Tight Buffer Diameter: |
250 |
| Fiber Mode: |
Single Mode or Multi Mode |
| Operation Time: |
About 60s(No Fiber Cut) |
| Insert Loss: |
≤ 0.3dB(1310nm-1625nm) |
| Return Loss: |
≥ -45dB |
| Fastening Strength Of Naked Fiber: |
>5 N |
| Fastening Strength Of Naked Fiber Holder: |
>10 N |
| Tensile Strength: |
>50 N |
| Using Temperature: |
-40~+75 |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Connector Type: |
LC/St/FC/St/Mu/E2000 |
Product Description

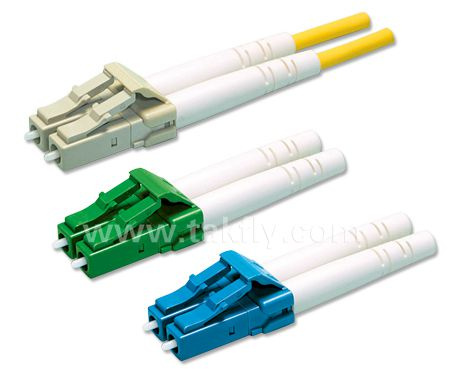

LC fiber optic combined connector duplex for optical fiber patch cord
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS. If you have other special requirements, the ARK will be specifically for your customization to meet your needs.
Note: Ferrule with/without flange is available
Applications
1. FTTH
2. WAN
3. LAN
4. Telecommunication
5. CATV
6. Optical Distribution Frame
Ferrule Hole Sizes
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
Performance Index
Parameter |
Unit |
FC,LC,SC |
ST,MU,SMA905 |
MTRJ,MPO |
SM |
MM |
SM |
MM |
SM |
MM |
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
Operating wavelength |
nm |
1310,1510 |
1310,1510 |
1310,1510 |
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
Operating temperature |
°C |
-40~+75 |
-40~+75 |
-40~+75 |
Storage temperature |
°C |
-45~+85 |
-45~+85 |
-45~+85 |
Cable diameter |
mm |
Φ3.0,Φ2.0,Φ0.9 |
Φ3.0,Φ2.0,Φ0.9 |
Φ3.0,Φ2.0,Φ0.9 |
For furter information,please don't hesitate to contact me!
