LC-LC Upc/APC Singlemode Multimode Fiber Optic Patch Cord

Name: LC-LC Upc/APC Singlemode Multimode Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 738148415
Availability: InStock
Rating: 5 (136 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-PC01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Customized
Warranty:	1-5 Years
Sample:	Avalible
Insertion Loss:	Less Than 0.2dB
Return Loss:	More Than 55dB
Outer Diameter:	0.9/2.0/3.0mm
Operation Temperture:	-40-75 Degree
Maaterial:	PVC/LSZH
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

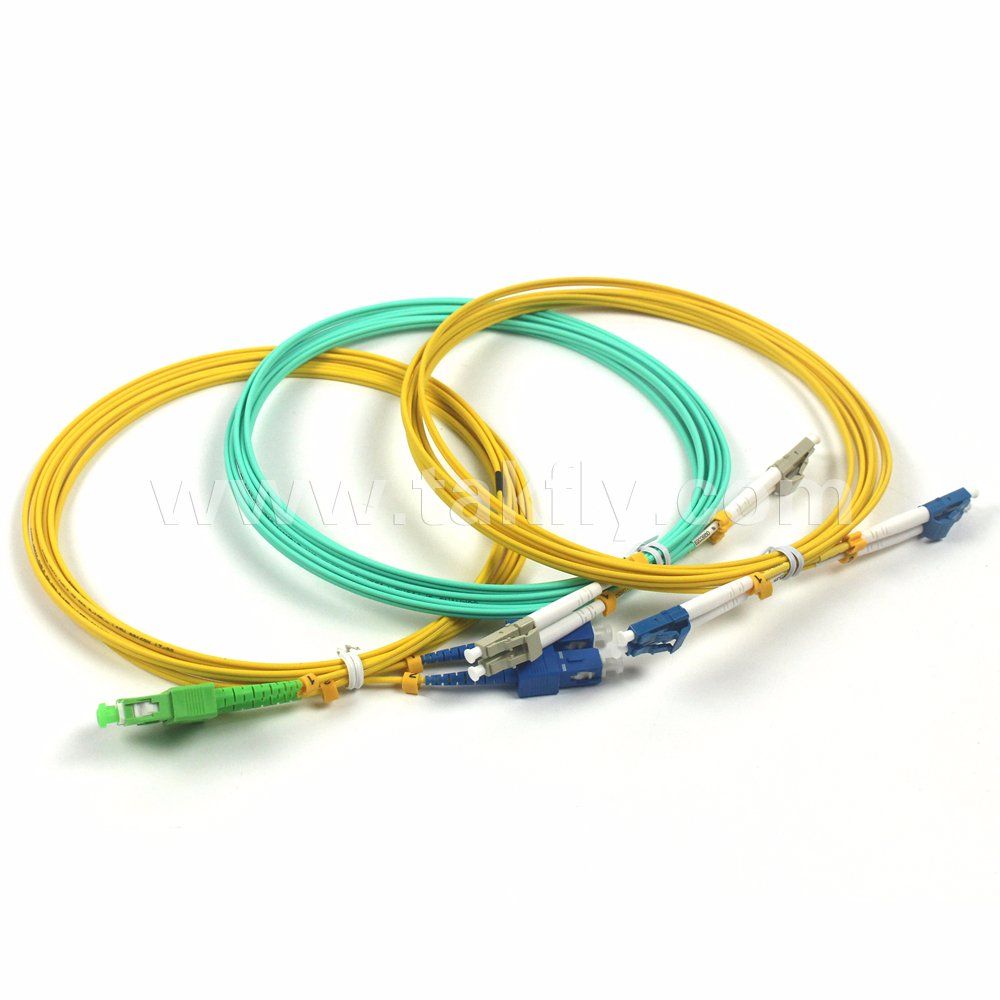

LC-LC UPC/APC singlemode multimode fiber optic patch cord

Features:

1. LC Simplex or Duplex

2. ANSI, IEC , TIA/EIA , NTT and JIS standard compatible

3. UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm

4. Precision mechanical dimensions

5. Zirconia ferrule PC or APC diameter125~128 um high concentricity

6. Single mode, Multimode and Angle PC

7. Multi-piece type or one-piece type is available

8. All parts compliant with ROHS

Application:

1. Telecommunication

2. CATV

3. LAN & WAN

4. Network

5. Broadband

6. FTTH

Parameter:

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40ºC~+75ºC
Storage Temperature		-40ºC~+75ºC

Order Information:

CODE	CONNECTOR	CABLE SIZE	FIBER TYPE	CABLE TYPE	FIGURE
H01	1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex	1. 0.9 2. 2.0 3. 3.0	1.9/125 2.OM3 3.50/125 4.62.5/125	1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH	1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black

Thanks for refer our products, should you have any question please feel free to contact me.

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
