LC mm Beige Duplex Optical Adapter Strips

LC mm Beige Duplex Optical Adapter Strips
Price: US $ 3.9-5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 6567
Color: Beige
Plate: Black
Adapter: LC PC
Fiber Type: Multimode
Adapter Types: LC, SC, ST and Blank
Strip Material: Cold Rolled Steel
Transmission Medium: Multimode
Structure: LC
Number Of Cores: Multi-Core
Ferrule Endface: PC(',UPC)
Light Source TYPE: Fiber
Connector Type: LC PC

Product Description

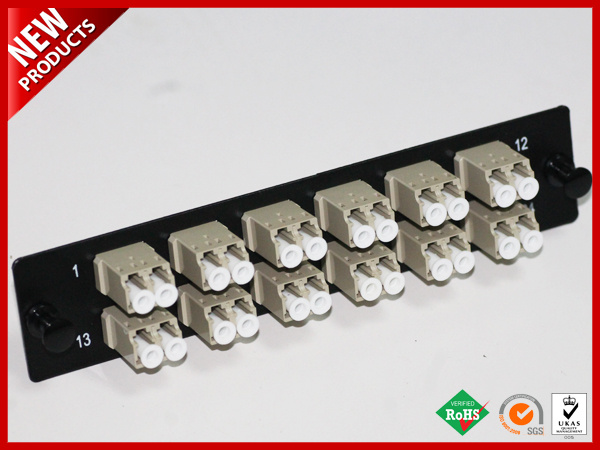

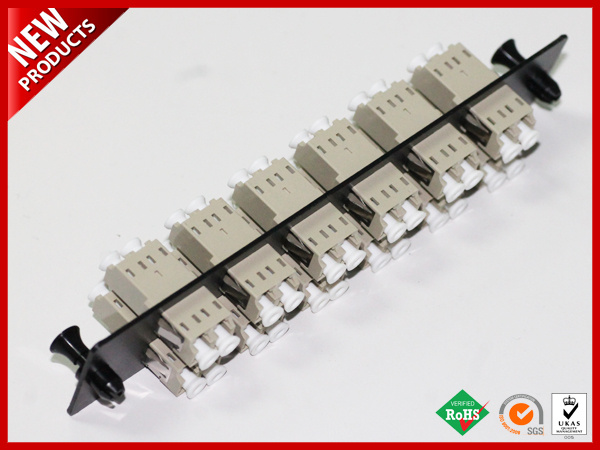

LC MM Beige Duplex Optical Adapter Strips

PUNO' LGX adapter strips accommodate all standard connectors and fiber types. Single mode, multimode with LC, SC, ST,and MTRJ interfaces. They can harbour up to 24 fibers. Finished in light texture black powder coated paint, they feature front and rear identification port numbers. They snap easily into position in LGX patch panels rack mountable or wall mountable.

Application

√ CATV.
√ Telecommunications Room.
√ LAN, WAN, SAN.
√ Industrial Control Systems.
√ FTTx.

Techncial Spec

 ParameterValue
Physical
Characteristics		Adapter strip materialSteel coated with black Sandex
Pushpin materialUL 94V-0 ABS high-impact thermoplastic
Overall dimensions129.79 mm (5.11 in) x 28.95 mm (1.14 in)
Mechanical
Characteristics		Operating temperature-40° C (-40° F) ~ 75° C (167° F)
Storage temperature-40° C (-40° F) ~ 85° C (185° F)
Temperature cycling-40° C (-40° F) ~ 75° C (167° F), 40 cycles = 0.2 dB change
High temperature70° C for 96 hours = <0.4 dB change
Mating durability500 mating cycles (cleaning every 25 matings) = <0.2dB change
Storage temperature40° C (104° F) at 93% RH for 96 hours = <0.4 dB change

Optical Performance

ParameterSingle Mode UPCSingle Mode APCMultimode OM1Multimode OM2Multimode OM3
Insertion Loss0.2 dB Max.0.2 dB Max.0.3 dB Max.0.3 dB Max.0.3 dB Max.
Return Loss-55 dB-65 dBN/AN/AN/A

Features and Benefits

√ LGX adapter strips for standard or Keystone adapter foot print.
√ Pushpin mechanism allows for quick and easy tool-less installation.
√ Enable high density, flexibility, and scalability.
√ Blank adapter strip available for to cover unoccupied cut-outs.
√ Fiber capacity per adapter strip up to 24 fibers with LC quad adapter.

Applications

√ Data centers.
√ Indoor or outdoor distribution units.
√ Structured cabling systems.
√ LAN intrabuilding and interbuilding installations.
√ Community access television (CATV) & multi-system operator (MSO).
√ Central office and local loop.
Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
