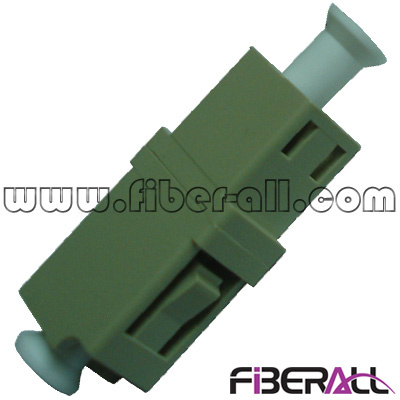

LC mm Simplex Fiber Optical Adapter with Short Footprint

Name: LC mm Simplex Fiber Optical Adapter with Short Footprint
Brand: all-electronics-online.com
SKU: 717588892
Availability: InStock
Rating: 4.7 (61 reviews)

Price:	US $ 0.2-1.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-AD-LP1MP
Color:	Beige
Sleeve:	Zirconia
Dust Cap:	Plastic, Red
Flange:	with Short Footprint
Fiber Channel:	Simplex
Transmission Medium:	Multimode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	LC/PC

Product Description

FA-AD-LP1MP, Fiber Optical Adapter, LC/PC, MM, Simplex, Plastic, Beige

Features & Performance:
1, Low insertion loss
2, High precision alignment
3, Compact design
4, RoSH material
5, Different color and material for options
6,Comply with Telcordia, ANSI, TIA/EIA, NNT and JIS
7, IL≤0.3dB
8, Durability ≤ 0.2dB typical change, 1000 mating
9, Operating temperature: -40 to + 80 ºC

Fiberall Ordering information:

Interface Type	SC	LC	ST	FC	MU	MTRJ	Hybrid
Structure Option	With flange Without flange	Without SC Footprint With Short Footprint With Footprint With windows Without windows		Big D Small D Square	With or without metal housing		SC-LC SC-FC SC-ST LC-ST LC-FC ST-FC
Channel	Simplex, Duplex	Simplex, Duplex, Quadplex	Simplex, Duplex	Simplex, Duplex	Simplex, Duplex	Duplex	Simplex, Duplex
Body Material	Plastic Metal	Plastic	Plastic Metal	Plastic Metal	Plastic Metal	Plastic	Plastic Metal
Body Color	Blue Beige Green Aqua Metal	Blue Beige Green Aqua	Blue Metal	Blue Metal Beige	Beige(w/ metal) Blue	Black	Blue Metal
Dust Cap Color	Blue Beige Green White Black	White	Red Yellow Black	Red Green White	White	Black	Red White Black
Fiber Type	SM, MM	SM, MM	SM, MM	SM, MM	SM,MM	SM,MM	SM
Sleeve Type	zirconia	zirconia	zirconia	zirconia	zirconia	zirconia	zirconia Bronze Metal
Suitable end face	PC, APC	PC,APC	PC, APC	PC,APC	PC		PC
Packing	Single Plastic Bag or Blister Box
Other	D4, DIN, SMA, E2000, ESCON Adapter, SC, ST, FC Bare Fiber Adapter, MPO/MTP Adapter, Male to Female Hybrid Adapters are also available

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
