LC/PC Simplex Muilti-Mode Fiber Patch Cord

LC/PC Simplex Muilti-Mode Fiber Patch Cord
Price: US $ 0.75-2/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: L/C,Paypal,Western Union
Prod Model: LC Patch Cord
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Keyword: LC/PC Simplex Muilti-Mode Fiber Patch Cord
Connector: LC
Polish: PC
Cable Od: 0.9/2.0/3.0mm
Fiber Type: PVC
Sm Or Mm: mm
Jacket Material: PVC
Ferrule Material: Zirconia Ceramic
Warranty Time: 18 Months
Place Of Origin: Shenzhen,China(Mainland)
Application: Communication
Type: Multi-mode Fiber
Connection Structure: LC
Certification: CE

Product Description

Fiber patch cables, also known as fiber optic patch cords, fiber jumpers or fiber patch cords,is used to connect computer or equipments directly.Singlemode fiber patch cable is primarily used for applications involving extensive distances. Multimode fiber is usually the cable for relatively short distance fiber systems. There are three common core sizes of multimode fiber are OM1 62.5 micron and 50 micron in OM2 or 10 Gigabit Laser Optimized OM3. and for singlemode,9/125 micron is widely used.Duplex fiber cables consist of two fiber cores and can be either multimode or singlemode.We carry both singlemode fiber patch cables and multimode optical fiber patch cables with a variety of connector types such as ST,LC,ST,FC,E2000,MTRJ,SMA,MU,D4,DIN,MPO etc.

LC/PC Simplex Muilti-mode Fiber Patch Cord

Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord













ST, MU









MT-RJ, MPO









E2000













SM









MM

SM





MM

SM





MM

SM

















PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

























Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

































Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

































Operating wavelength

nm

1310, 1510













1310, 1510









1310, 1510









1310, 1510





Exchangeability

dB

≤0.2













≤0.2









≤0.2









≤0.2





Vibration

dB

≤0.2













≤0.2









≤0.2









≤0.2





Operating temperature

ºC

-40~75













-40~75









-40~75









-40~75





Storage temperature

ºC

-45~85













-45~85









-45~85









-45~85





Cable diameter

mm

φ3.0, φ2.0, φ0.9













φ3.0, φ2.0, φ0.9









φ3.0, φ2.0, φ0.9









φ3.0, φ2.0, φ0.9

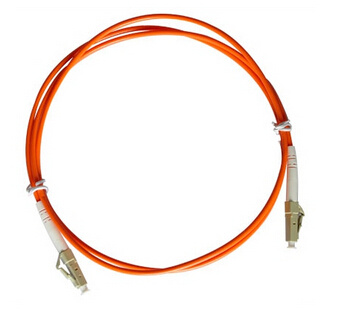

Product Picture:


If you have any question or want to know more, Welcome to contact us !

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
