LC/PC Simplex OD 2mm SM OS1 3m 9/125 Fiber Optic Patch Cord

Name: LC/PC Simplex OD 2mm SM OS1 3m 9/125 Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 712745242
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	US $ 1.2-1.32/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	9/125 Fiber Optic Patch Cord
Insertion Loss:	Less Than 0.3dB
Return Loss:	More Than 45dB
Operating Wavelength:	1310 1510nm
Operating Temperature:	-40~75
Storage Temperature:	-45~85
Fiber Type:	OS1, OS2, Om1, Om2, Om3, Om4
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC
Sheath Material:	PVC or LSZH

Product Description

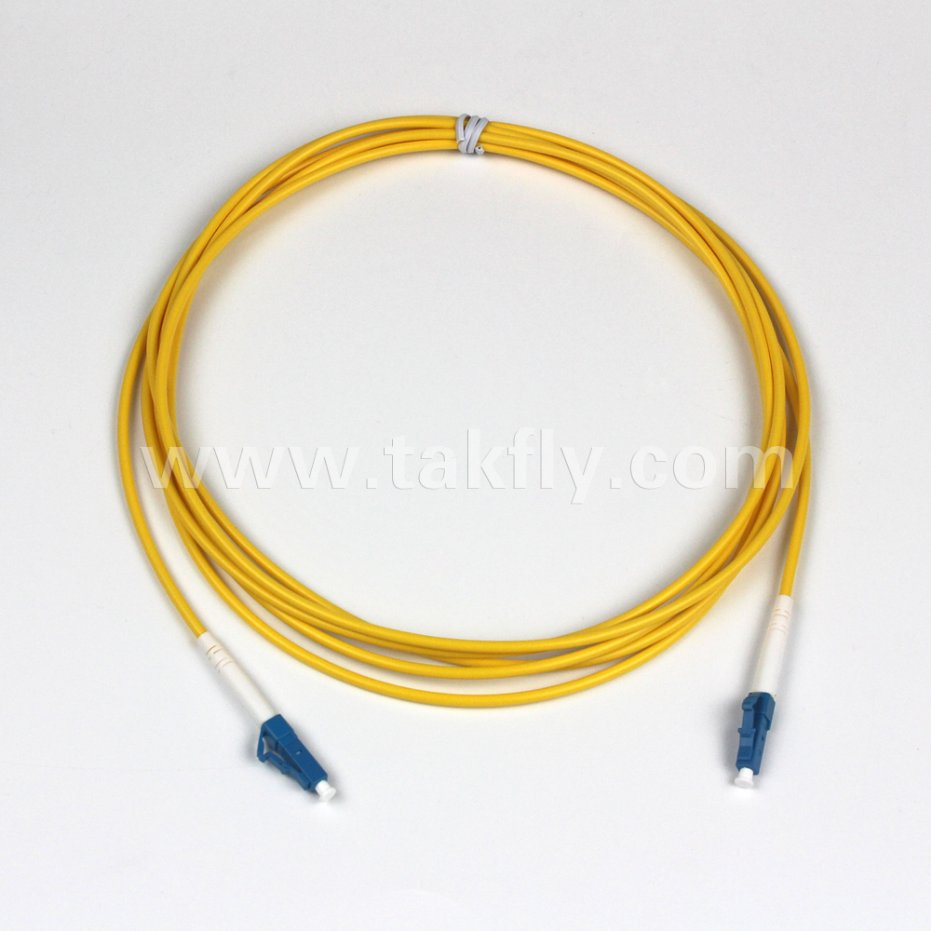

LC/PC Simplex OD 2mm SM OS1 3m 9/125 Fiber Optic Patch Cord

A patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.
The OM3 50/125 multimode fiber optic cables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.

Features:
Low insertion loss and high return loss
Small, light, high dense connection
Good exchangeability
High credibility and stability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard

Applications:
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Testing equipment
Optical access network

Specification:

Parameter	Unit	Standard & Requirement
Insertion loss	dB	≤0.20
Changeability	dB	≤ 0.20dB
Radius of curvature	nm	10 ≤ r ≥25
Curvature eccentricity	um	<50
Fiber core undercut	nm	<50
Insertion loss change	dB	< 0.1
Return loss change	dB	< 5
Insert & pull out (Max.)	kg	2
Insert and pull frequency	Time	> 1000
Operating temperature	ºC	-40~+85

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
