LC Sc Duplex 3.0mm Corning Fiber Patch Cord LSZH
| Price: |
US $ 0.1-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Corning fiber patch cord |
| Item Name: |
Corning Fiber Patch Cord |
| Keywords: |
Fiber Patch Cord/Fiber Optic Jumper |
| Fiber Type: |
Single Mode ,Multi Mode |
| Length: |
Customized |
| Insert Loss: |
0.2 dB |
| Return Loss: |
Single Mode 50dB,Multi Mode 35dB |
| Customzied: |
Available |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
Product Description

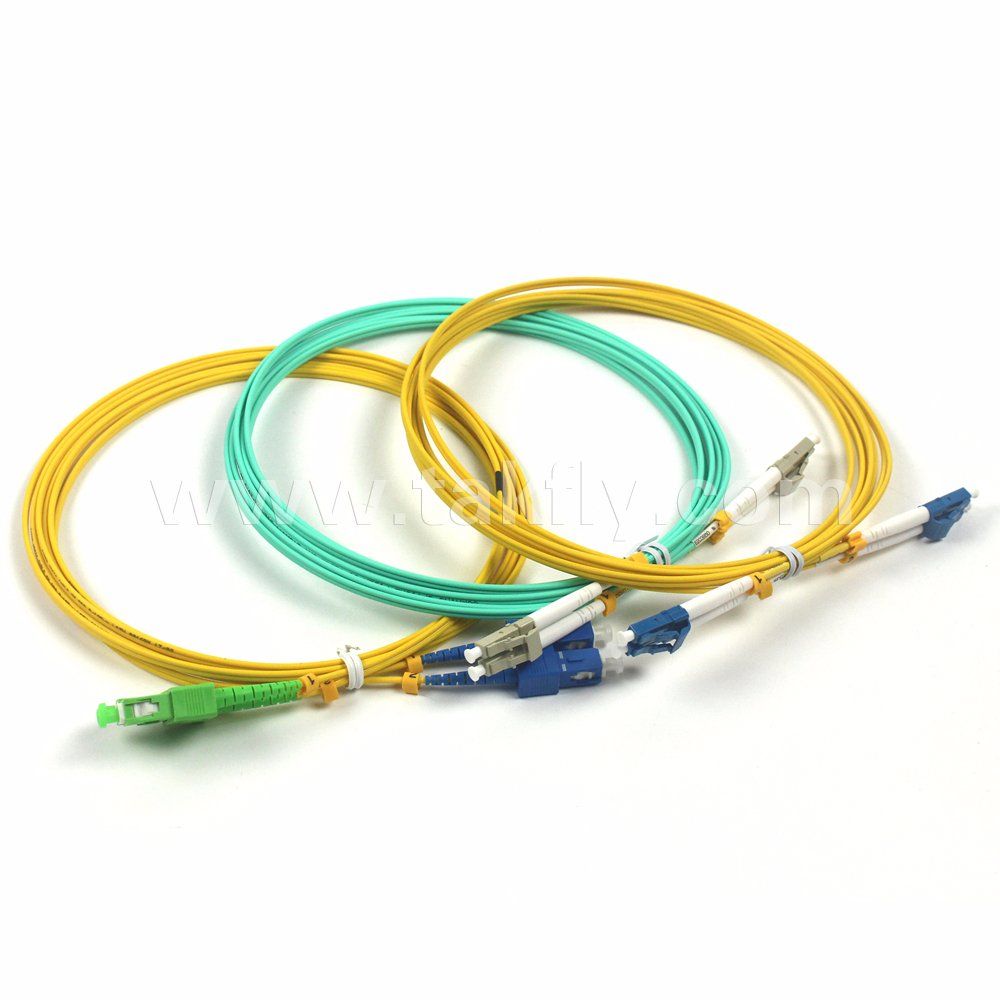

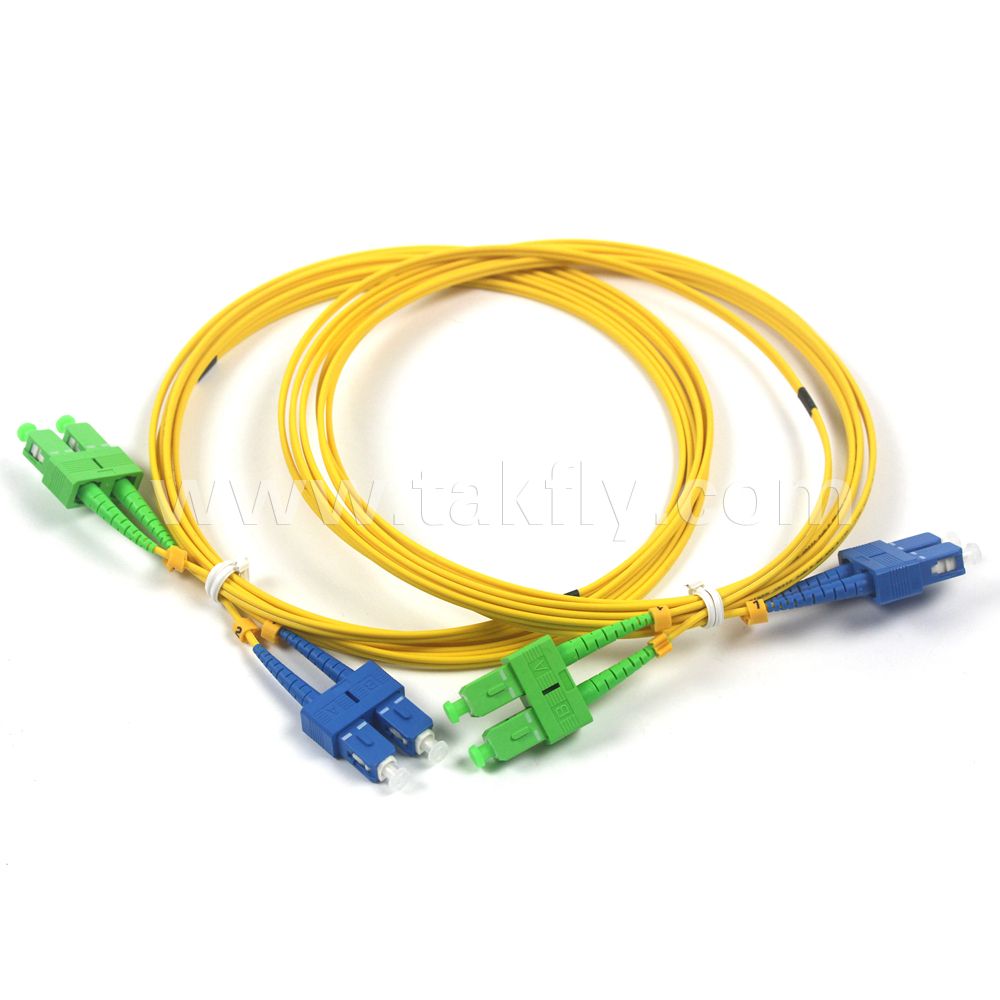

LC Sc Duplex 3.0mm Corning Fiber Patch Cord LSZHLC duplex Fiber patch cord is one of the most popular type used for telecommunication networks, cable networks and computer networks etc.The main specific including SM/MM, SX/DX, PC/APC etc.
Why Choose Takfly?1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
- LC,SC,ST,FC Simplex or Duplex
- ANSI, IEC , TIA/EIA , NTT and JIS standard compatible
- UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
- Precision mechanical dimensions
- Zirconia ferrule PC or APC diameter125~128 um high concentricity
- Single mode, Multimode and Angle PC
- Multi-piece type or one-piece type is available
- All parts compliant with ROHS
Application:- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
About payment & shipment

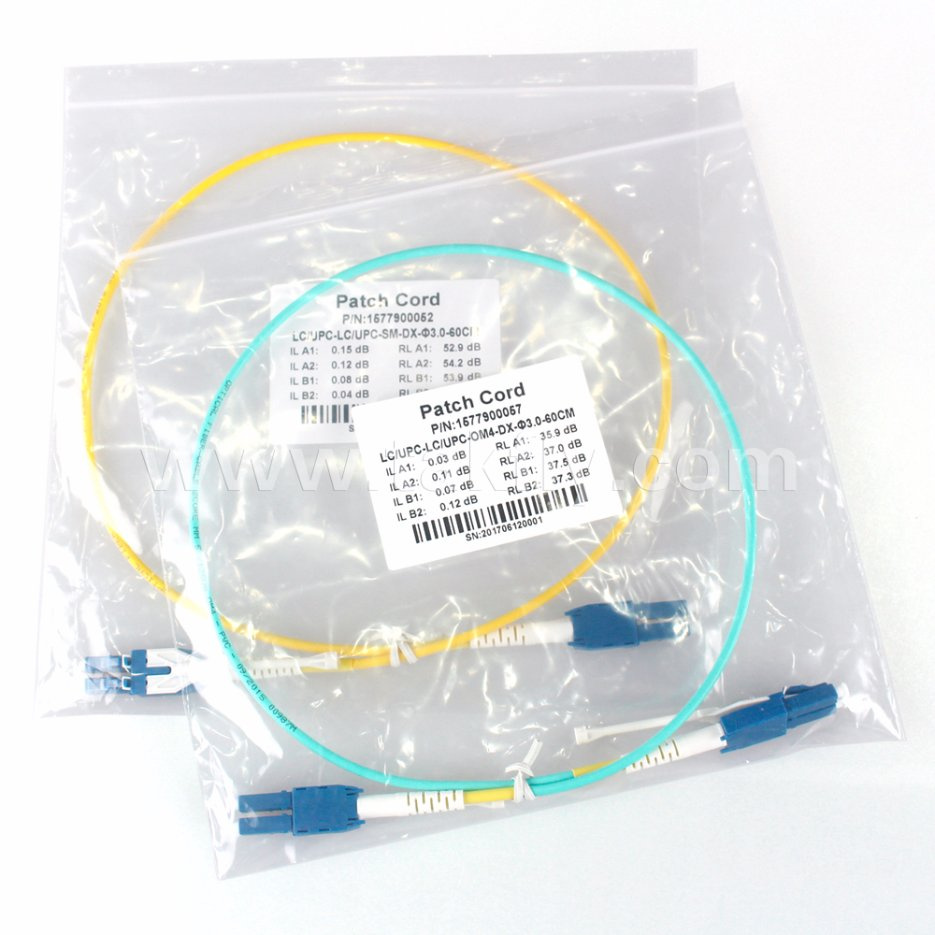

About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Would you like some LC duplex fiber patch cord sample to try?Please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

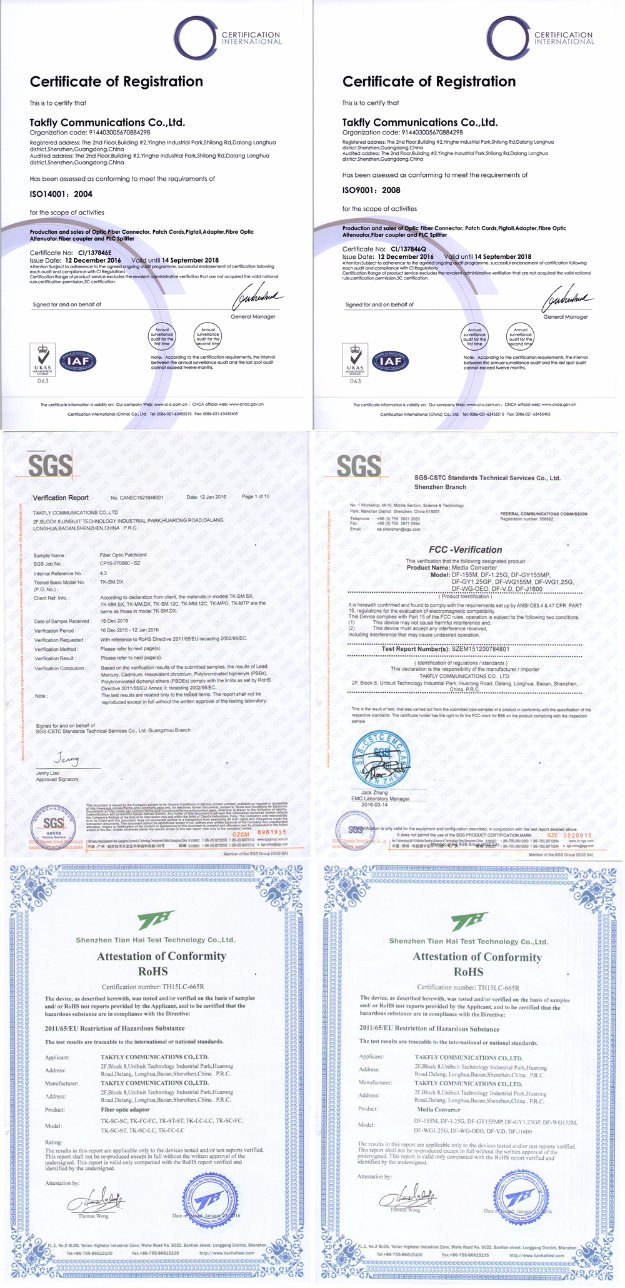

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
