| Prod Model: |
MTRJ Patchcord |
| Operation Time: |
About 60s(No Fiber Cut) |
| Insert Loss: |
<0.3 dB |
| Return Loss: |
PC>40dB; APC> 50dB |
| Fiber Type: |
OS1,OS2,Om1,Om2,Om3,Om4 |
| Cable Outer Diameter: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Tensile Strength: |
>50n |
| Connector Color: |
Green,Red,Black or Yellow |
| Color: |
Blue, Green, Black, Yellow |
| Export Markets: |
Global |
| Polishing: |
PC,Upc,APC |
| Ferrule Endface: |
PC(',UPC) |
| Transmission Medium: |
Single Mode or Multimode |
| Structure: |
MPO |
| Number Of Cores: |
Single Core or Multi-Core |
| Connector Type: |
MTRJ |
Product Description

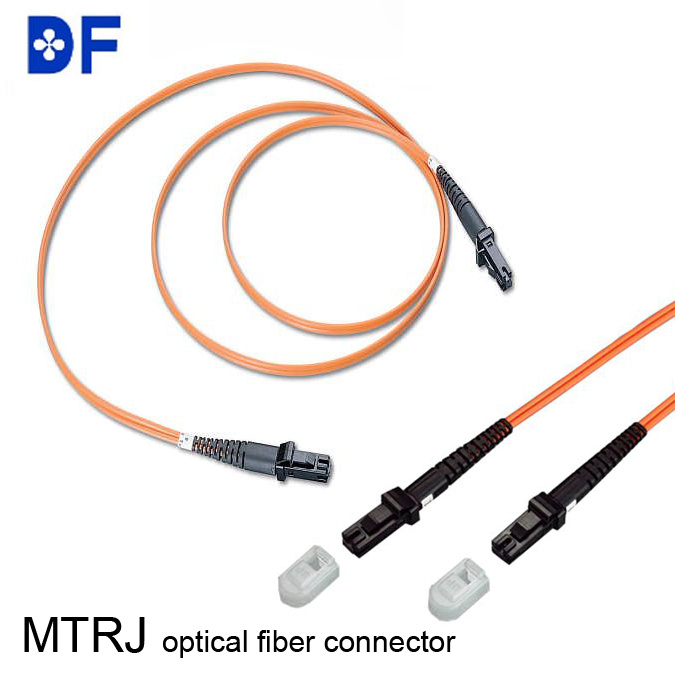

LC/SC/FC/ST/MU/E2000/MTRJ PC APC Fiber Optic MTRJ Patchcord
Description:
An MTRJ fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers
Application:
1. Gigabit Ethernet
2. Active device termination
3. Telecommunication networks
4. Vedio
5. Local Area Networks(LANs)
6. Data processing networks
7. Industrial and medical
8. Premise installation
9. Wide Area Networks(WANs)
Feature:
1. Low insertion loss and back reflection loss
2. NTT-MU hardware compatibility
3. NTT & JIS compliance
4. UL-rated plastic housing and boot
5. Tunable zirconia connector ferrule
6. High precision alignment
7. Compact, pull-proof design
8. Behind-the-wall style short connector
Standards:
All components and final producs are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455
Availability:
The connector can be supplied as a pre-assembled one-piece connector or as connector kit.
Clips are available for duplex connectors
Housing kits without ferrule are available.
| | Singemode(UPC) | Singemode(APC) | Multimode |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.2db typical change, 1000 times mating |
| Operating Temperature | -45 to +85 degree |
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity: ≤1.0um | 125.0+1/-0um, Concertricity: ≤0.5um | 127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity: ≤1.0um | 125.5+1/-0um, Concertricity: ≤0.5um | |
| 126.0+1/-0um, Concertricity: ≤1.0um | 126.0+1/-0um, Concertricity: ≤0.5um | |
Product list:
| Item | Connector Description |
| | |
| Connector Singlemode 9/125 | ST/SC/FC |
| LC |
| MU |
| MTRJ(female) |
| MTRJ(male) |
| DIN |
| E2000 |
| |
| Connector Multimode (50/125 or 62.5/125) | ST/SC/FC |
| LC |
| MU |
| MTRJ(female) |
| MTRJ(male) |
| E2000 |
| | |
| Remark: 1. Above price is for assembled connectors 2. The price for 0.9mm, 2.0mm&3.0mm boot is same. |
|
