Name: LC Sc Fiber Optic Connector Loopback
Brand: all-electronics-online.com
SKU: 814431345
Availability: InStock
Rating: 4.8 (25 reviews)

Price:	US $ 2.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	loopback
Catalogue:	LC Sc Connector Patchcord Loopback
Name:	LC Sc Loopback Connector
General Names:	Loopback Connector
Cable Length:	Customized
Operating Temperature:	-40c~+80c
Fiber Mode:	Single Mode or Multi-Mode
Cable Diameter:	0.9mm,2.0mm,3.0mm
Operation Wavelenghth(Nm):	1310/1550nm
Export Markets:	Global
Application:	FTTH, FTTB, LAN, CATV
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

LC SC fiber optic connector loopback

1,BRIEF INTRODUCTION
Fiber Optic Loopback connnector provides a media of return path for a signal, no matter the signal is for testing purposes or network
restoration. In the caseof testing, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment
, one at a time, is a technique for isolating a problem. Its performance is as good as that of a general. Available type including SC,
MT-RJ, MU and LC. Bare fiber, 0.9mm cable, 2.0/3.0mm cable are all available.

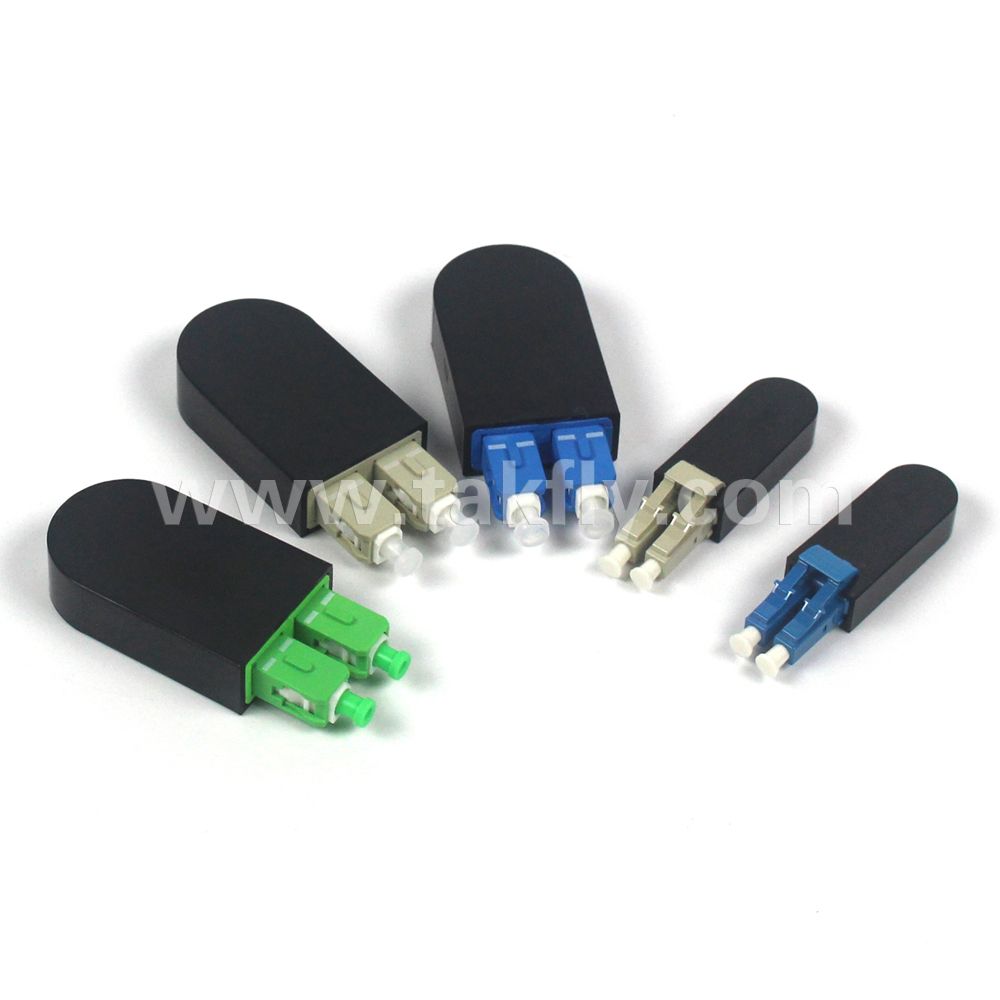

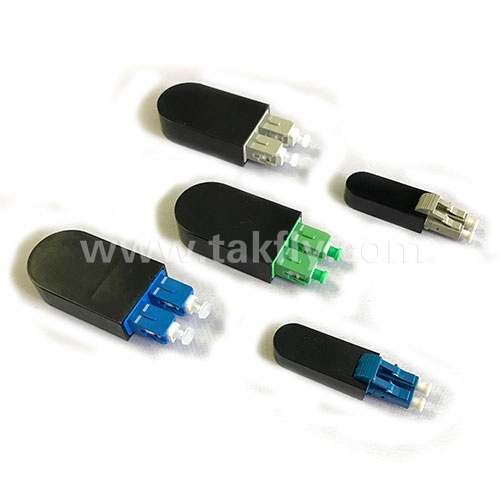

Loopback connector series

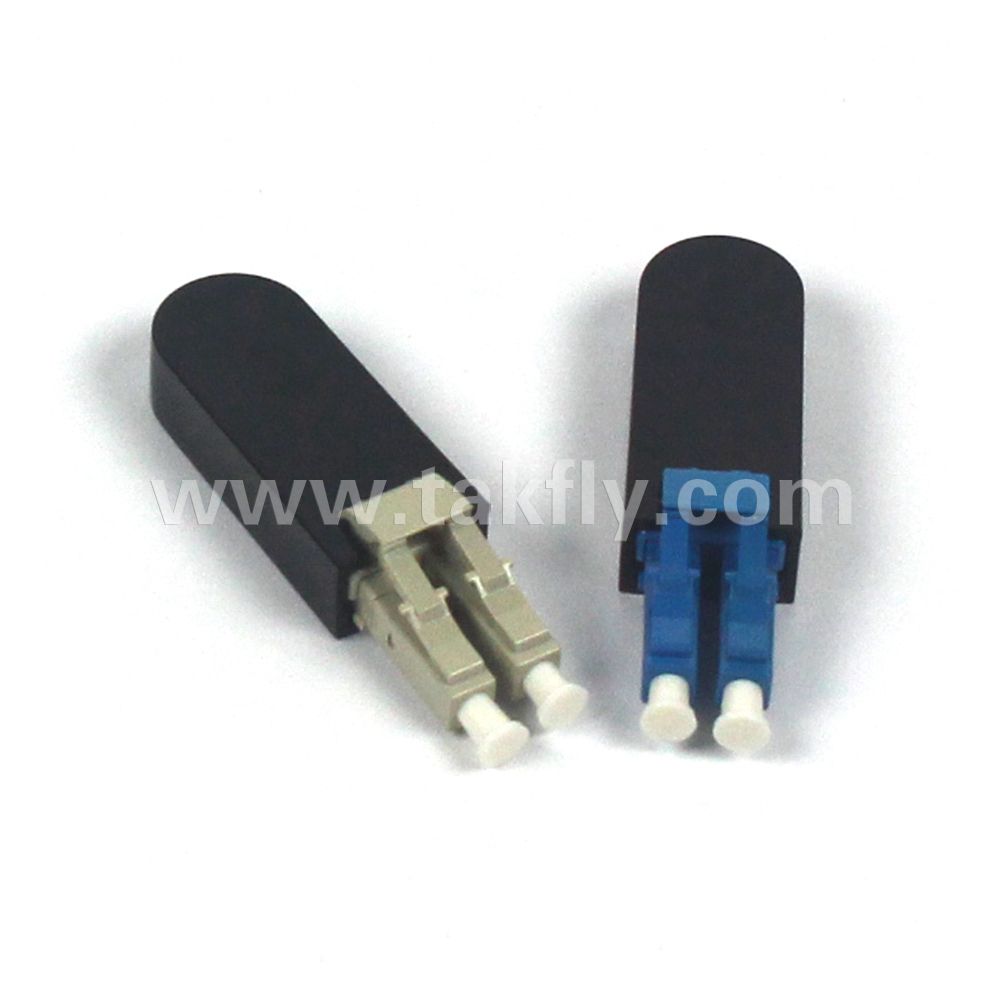

LC loopback connecter type.

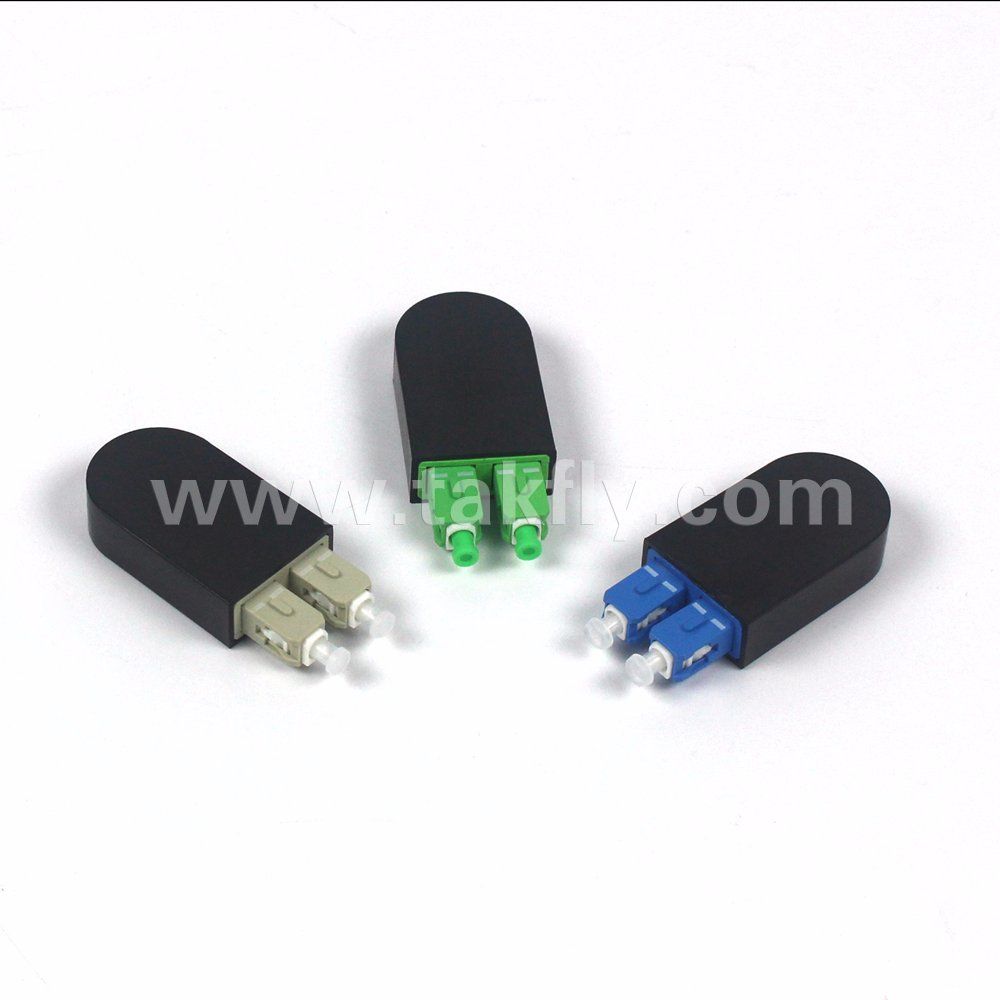

SC loopback connector type

2,FEATURES
Low insertion loss and high return loss
Good exchangeability and durability
Compact design

Short wavelength devices
Compatible with Fast Ethernet
Fiber Channel, ATM, and Gigabit Ethernet

3,APPLICATIONS
Device pig-tailing
Premise networks
Patch panel applications

Communications connections
Equipment interconnection
Loopback for network components testing

4,SPECIFICATIONS

ITEM	PARAMETER
	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.40dB,Max≤0.50dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

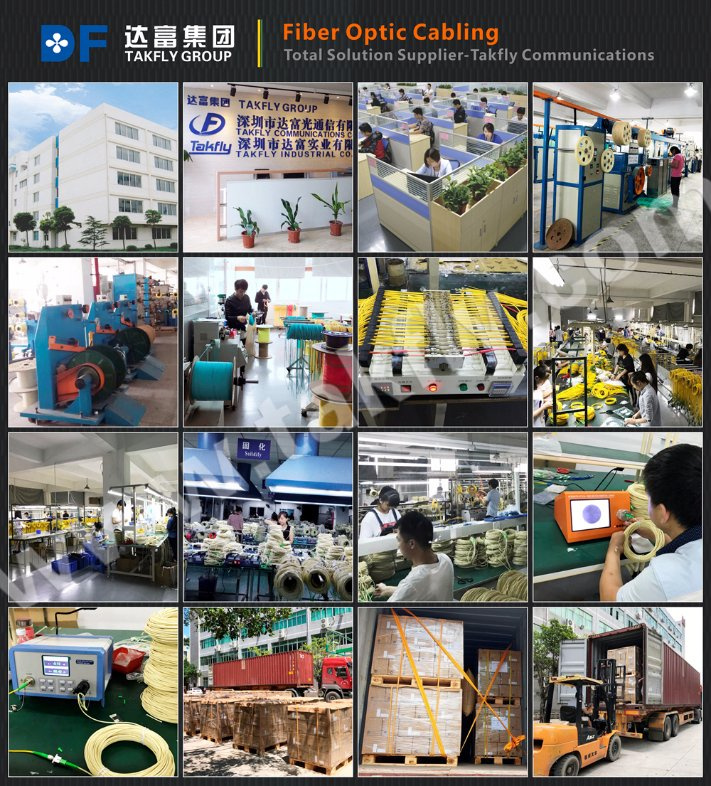

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
