LC Sc Outdoor Waterproof Fiber Optic Patch Cable

Name: LC Sc Outdoor Waterproof Fiber Optic Patch Cable
Brand: all-electronics-online.com
SKU: 707751942
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-NSN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Length:	1m.3m.5m or Customized
Operating Temperature:	-40c~+80c
Item:	Outdoor Waterproof Patch Cord
Cable Diameter:	0.9mm,2.0mm,3.0mm,5.0mm,7.0mm etc
Operation Wavelenghth(Nm):	1310/1550nm
Export Markets:	Global
Duplex LC Interconnect:	mm or Sm
Cycles:	50 Mating
Protection Class/Rating:	IP67
Application:	FTTH, FTTB, LAN, CATV
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC
Brand:	Takfly
Sheath Material:	PVC, LSZH

Product Description

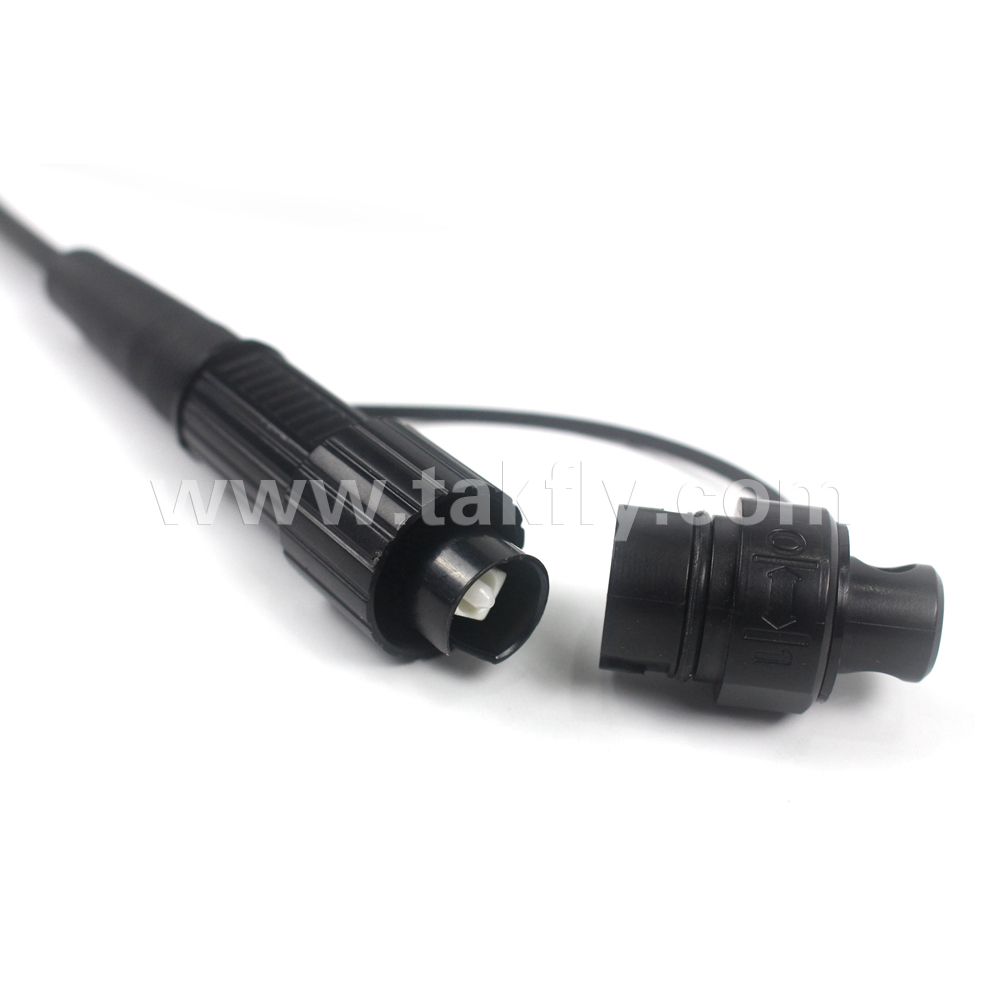

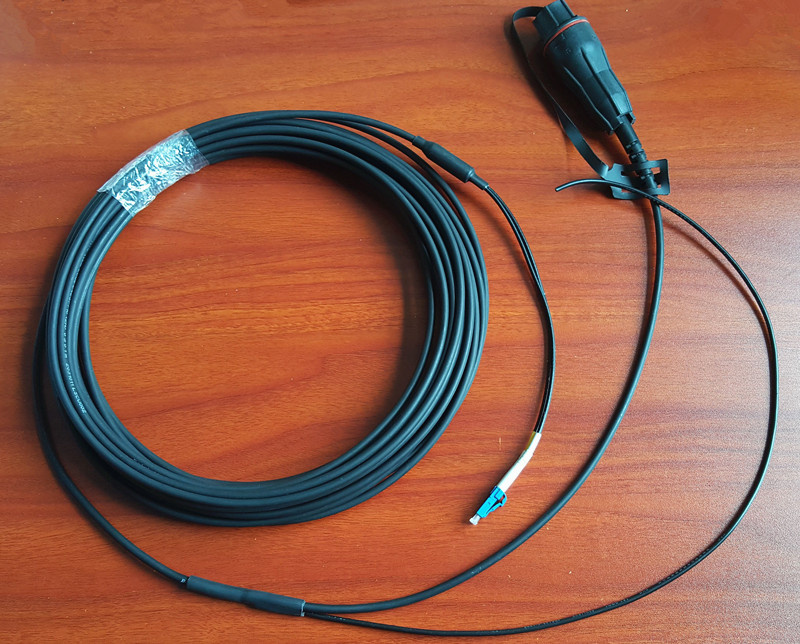

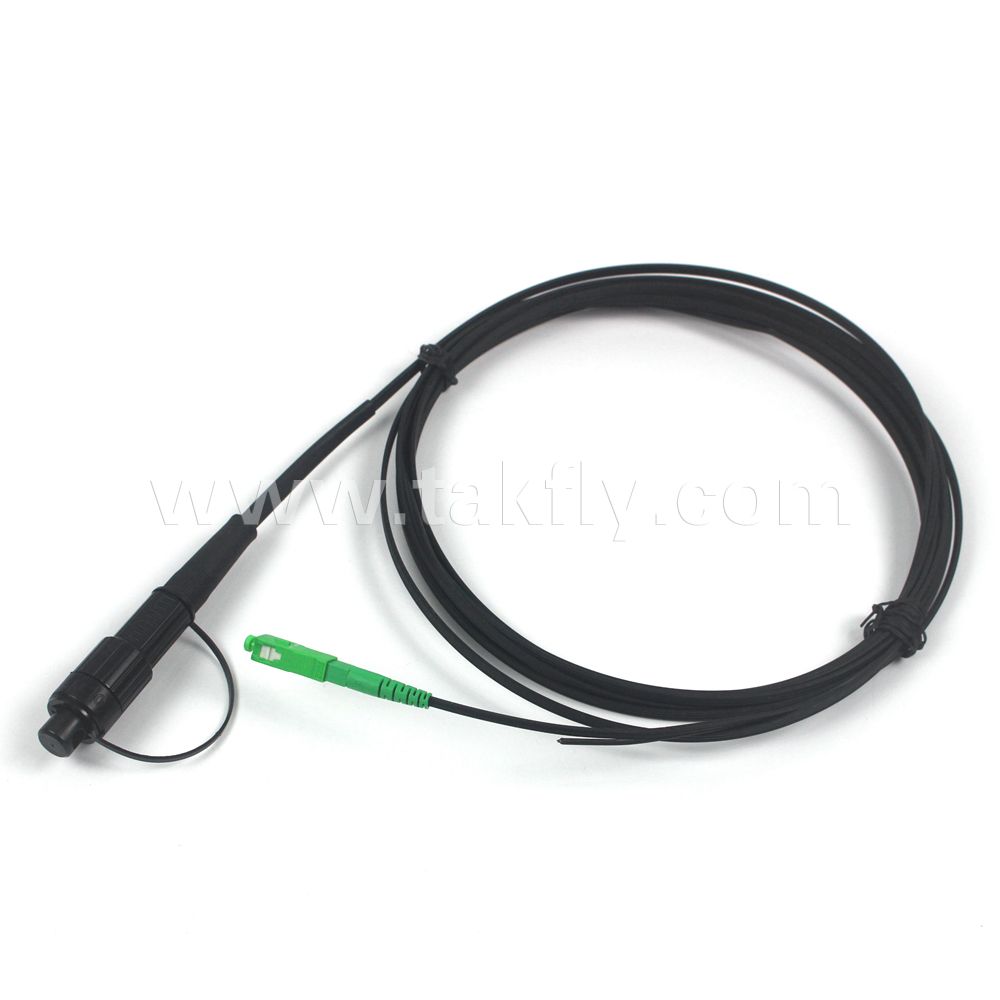

LC SC Outdoor Waterproof Fiber Optic patch cable

Description:

Outdoor waterproof fiber optic patch cord provides the remote radio between the SFP connection and the base station,
used for Telecom

applications. This new product to adapt the SFP transceiver provides the most widely in the market,

so that end users can choose to meet the specific requirements of the transceiver system.

Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the

optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors

of the connection request, can accommodate a larger tolerance in Z direction.

Feature:

Open bulkhead for easy access to SFP
Positive feedback to operator when fully mated
One-hand mating
Duplex LC interface ulkhead cutouts allow for removal of transceiver through the bulkhead
(no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and singlemode
Water proof, dust proof and corrosion resistant
Expansion to RJ45, etc
Plug has tolerance free design, fully free floating in Z-axis
No Cable buckling at any time during or after installation
Cost effective glass-filled polymer or metal die casted bulkhead
Field installable version available

Specifications

Item	Standard
150 N pull force	IEC61300-2-4
Vibration	GR3115(3.26.3)
Salt mist	IEC61300-2-26
Vibration	IEC61300-2-1
Shock	IEC 61300-2-9
Impact	IEC 61300-2-12
Temperature /humidity	IEC 61300-2-22
Locking style	Bayonet
Temperature	-40 ~+85°C
Cycles	50 mating
Protection class/Rating	IP67
Mechanical retention	150 N cable retention
Interface	LC interface
Adapter footprint	36*36mm
Duplex LC interconnect	MM or SM
Tools	No need

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

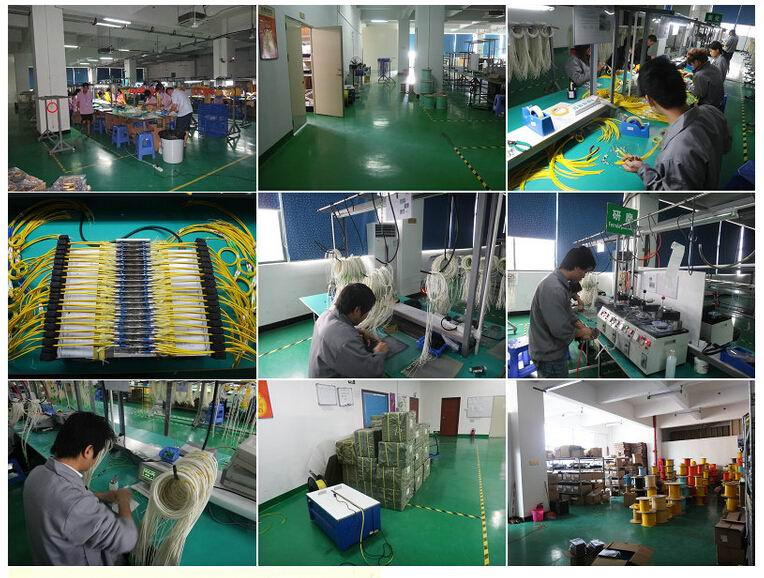

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
