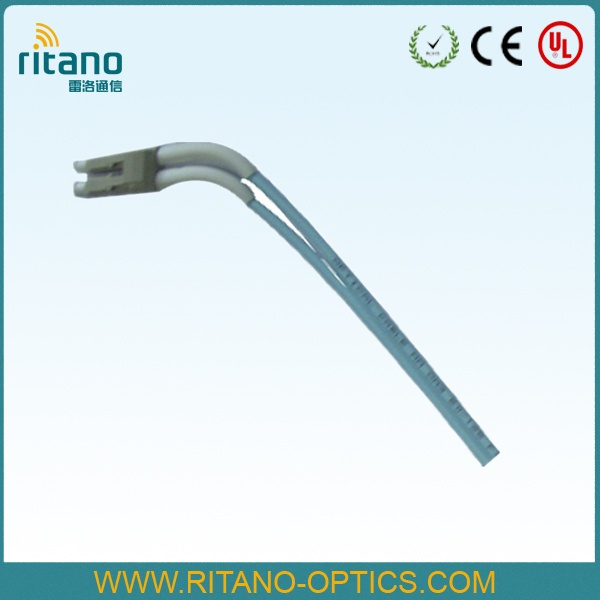

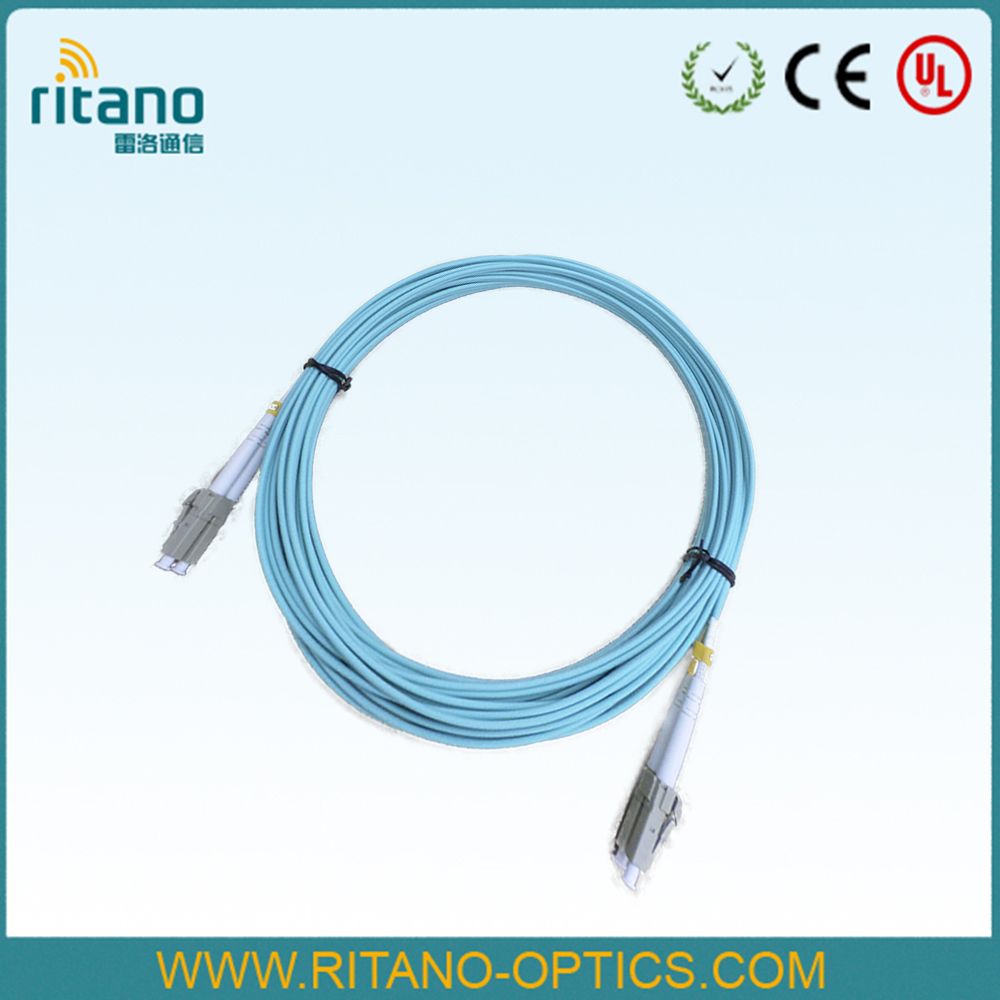

LC Splice Fiber Optic Pigtails Multimode Om3 Aqua, 3meter
| Price: |
US $ 0.92-1.48/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ROP-LC OM3 Pigtails |
| Jacket Color: |
Yellow,Orange,Red,Black,Blue,White,Brown...12color |
| Out Jacket: |
PVC, LSZH, Om3, Ofnr or Ofnp or Plenum |
| Fiber Type: |
Yofc, Corning, Fiberhome, Fujikura, Ofs etc. |
| Connections Type: |
FC/Sc/LC/St/MTRJ/E2000/MPO/DIN/D4/SMA |
| Cable Diameter: |
0.6mm,0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Fiber Sort: |
Multimode G.651; Singlemode G.652abcd,G653,G654. |
| Cable Length: |
0.3m,0.5m,1m,3m,5m,10m,15m,25m or Customized |
| Insertion Loss: |
0.2dB |
| Return Loss: |
50dB |
| Applications: |
Telecommunication,CATV,LAN&Wan,Network,Broadband |
| Application: |
Telecommunication,CATV,LAN&Wan,Network,Broadband |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
| Sheath Material: |
PVC, LSZH, Om3, Ofnr or Ofnp or Plenum |
Product Description
LC Splice Fiber Optic Pigtails Multimode OM3 Aqua, 3meter
Application:* Local area network,including FTTH,FTTX and FTTD;* CATV system;* Telecommunication networks* Active device termination* Local Area Networks (LANs)* Data processing networks* Test equipment* Premise installations* Wide Area Networks (WANs)Features:* Low insertion loss,high return loss;* Good compatibility;* High precision of mechanical dimensions;* High reliability & stability;* PC,SPC,UPC,APC optional,cable length optional;* Single-mode cable:yellow, multi-mode cable:orange; optional available for other colorSpecifications:* Insertion loss:≤0.2dB* Return loss:≥50dB(PC)* Repeatable:0.1dB(1000)* Temperature range:-40°~75ºC* Simplex/Duplex patch-cord available* Fan-out available;* Pigtail available;* Various boot (cable) sizes available. Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;Ferrule End-face:PC,SPC,UPC,APC;Core type:Single-mode(SM:9/125um),multi-mode(MM:50/125um or 62.5/125um);Cable quantity:"1C"means one cores=simplex(SX)Cable Diameter:3.0mm,2.4mm,2.0mm,1.8mm,1.6mm,0.9mm or customized;Cable length:1,2,3meter or customized;Cable type:PVC,LSZH,OM3,OFNR,OFNP.Refer to products:
Marks: 1.APC with green boot; RITANO OPTICS's standard as follows(we can also make by customer's requests).| Connector Type | SM/MM | Diameter | Simplex | Duplex | Marks |
FC connector |
SM | 0.9mm | Blue boot | \ |
N/A |
| 2.0mm | Blue boot | Blue & Yellow boot |
| 3.0mm | Blue boot | Blue & Yellow boot |
MM | 0.9mm | Black boot | \ |
| 2.0mm | Black boot | Red & Black boot |
| 3.0mm | Black boot | Red & Black boot |
SC connector |
SM | 0.9mm | Blue boot | \ |
Duplex with clips |
| 2.0mm | Blue boot | Blue & Yellow boot |
| 3.0mm | Blue boot | Blue & Yellow boot |
MM | 0.9mm | Beige boot | \ |
| 2.0mm | Beige boot | Red & Black boot |
| 3.0mm | Beige boot | Red & Black boot |
LC connector |
SM | 0.9mm | White boot | \ |
Duplex with clips |
| 2.0mm | White boot | White boot |
| 3.0mm | White boot | White boot |
MM | 0.9mm | Beige boot | \ |
| 2.0mm | Beige boot | Beige boot |
| 3.0mm | Beige boot | Beige boot |
ST connector |
SM | 0.9mm | Blue boot | \ |
N/A |
| 2.0mm | Blue boot | Blue & Yellow boot |
| 3.0mm | Blue boot | Blue & Yellow boot |
MM | 0.9mm | Black boot | \ |
| 2.0mm | Black boot | Red & Black boot |
| 3.0mm | Black boot | Red & Black boot |
What Ritano can offer:* Quality always comes first;* Standard quality tests check of all types of products before shipment;* Responsible for after-sales service;* Aiming to get repeat orders from 90% customer after the trial orders;* Making progress with customers together. Specifications subject to update without notice.
Ritano Optics Limited is a HongKong based manufactory and specialized to produce connectors and cable assemblies. Our manufactory approved the ISO-9001 quality guarantee system management authentication. Our products comply with the European RoHS Directive 2002/95/EC certification. Ritano is sincere desire to be a " Green partner" with our clients which protect our ecological environment together.
Our Main products including: Fiber optic cable, patch cords / pigtails, connectors, adapters, attenuators and coupler/PLC Splitters.
We concentrate on providing high quality products, the most competitive price, fast delivery date and best service to our clients. We ensure our products are reliability and durability because of our professional technology and experience. We have the experienced design team whom can create personalized products according to the client's design or requirement. Client's needs are our priority, and we grade client's approval and satisfaction as our biggest achievement. Our goal is to become the most reliable supplier to our clients. Ritano will bear in mind the concept of "Innovation, Quality, Efficiency and Service" and diligently makes great strides forward with clients in the near future
What Ritano can offer:
* Quality always comes first
* Standard quality tests check of all types of products before shipment
* Responsible for after-sales service
* Aiming to get repeat orders from 90% customer after the trial orders
* Making progress with customers together
