| Prod Model: |
Fiber optic patchcord |
| Connector: |
LC to St |
| Jacket Od: |
0.9/2.0/3.0mm |
| Fiber Mode: |
9/125μm |
| Jacket Color: |
Yellow |
| Polish: |
Upc to Upc |
| Wavelength: |
1310/1550nm |
| Fiber Type: |
Duplex |
| Jacket Material: |
PVC |
| Insertion Loss: |
≤0.3dB |
| Return Loss: |
≥50dB |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
LC-St |
Product Description

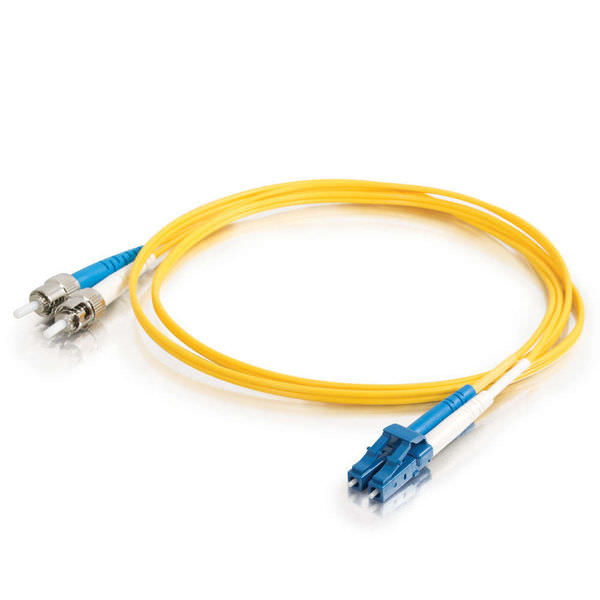

LC UPC to ST UPC Duplex LSZH 9/125 Single Mode Fiber Patch CableJust using a singlemode duplex fiber patch cable in long distance transmission, you can connect two 10G switch with SFP+ transceivers fast.High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable
The 9/125μm single mode fiber optic cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
| Connector | LC to ST | Jacket OD | 0.9/2.0/3.0mm |
| Fiber Mode | 9/125μm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |
Product Highlights
Industry Standard Flammability Rating OFNR (Riser) Jacket Fiber Optic Cable
Zirconia Ceramic Ferrule Optimum IL and RL
Cable Boot, Provides Maximum Protection
Printing helps clarify and recognize different cables
Package and Fast delivery timeour standard packge: each fiber optic
patch cord with a zip plastic box then in a carton or as your request
label: DF or mark your logo name on the cable
delivery: 3-5days after your payment
Order Information:| CONNECTOR | FIBER CORE | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
LC
SC
FC
ST
E2000
MU
MTRJ
| 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
Quality ControlAll products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Contact1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24hours too.
