LC to FC SC ST Hybrid Fiber Optic Adapter

Name: LC to FC SC ST Hybrid Fiber Optic Adapter
Brand: all-electronics-online.com
SKU: 830934855
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 3.77-15.00/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Adapter
Cable Jacket Material:	Plastic or Metal
Transmission Medium:	Single-Mode
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Structure:	Hybrid Adapter
Application:	Hybrid Adapter
Connector Type:	Hybrid Adapter
Brand:	Fiberlink

Product Description

Descriptions

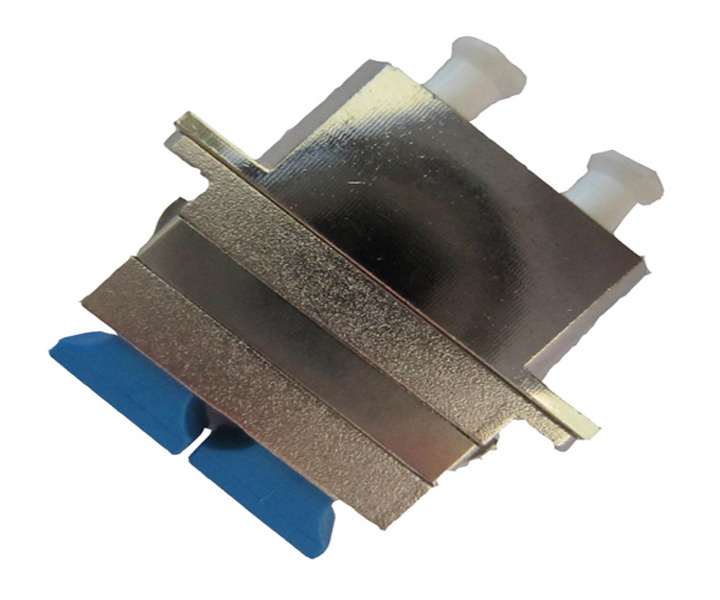

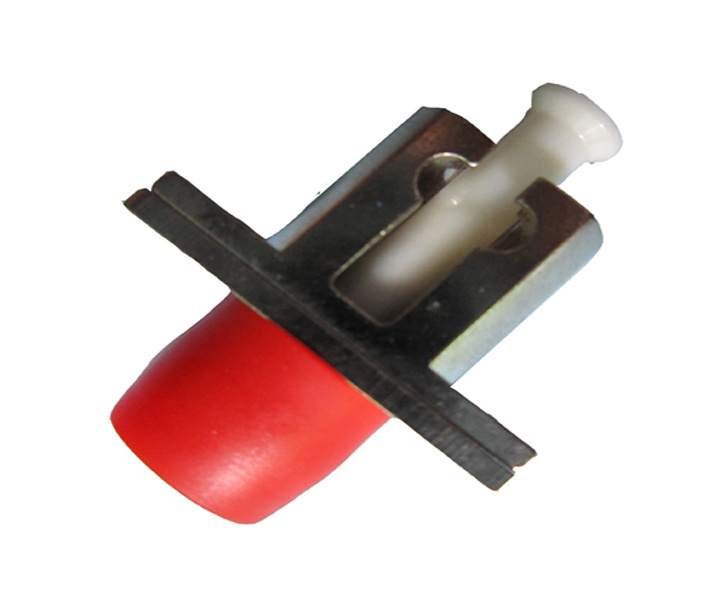

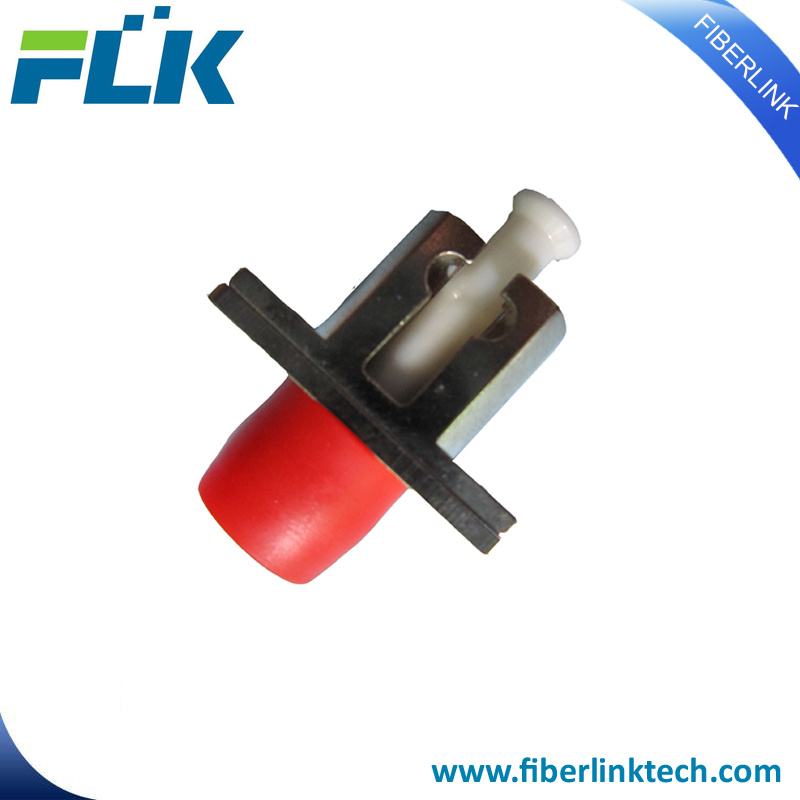

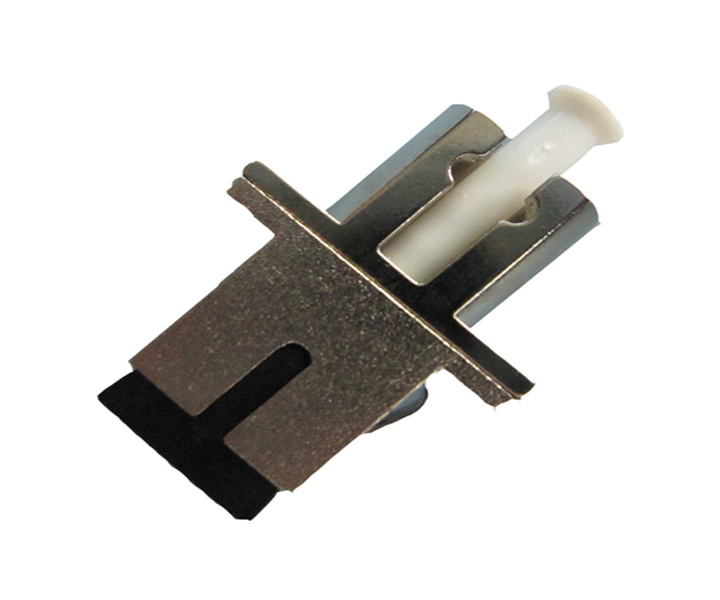

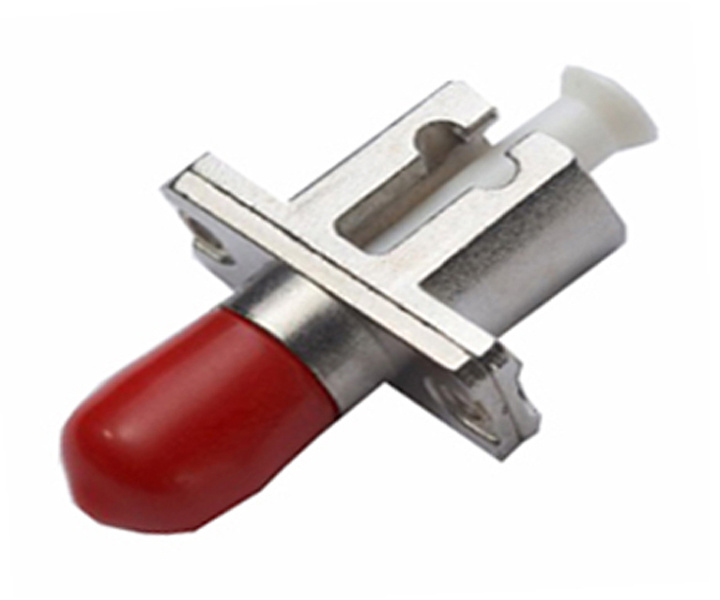

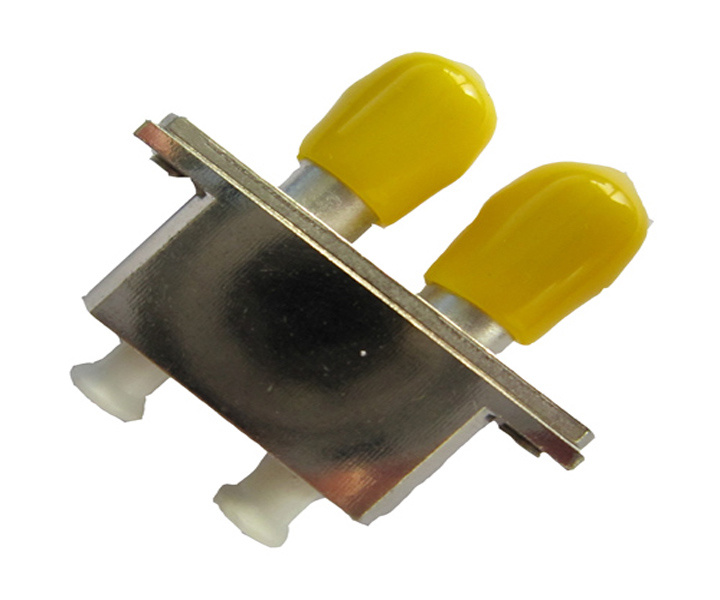

Fiberlink FC-LC, SC-LC, ST-LC Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.Most of the hybrid fiber adapters use high precision ceramic sleeves which enable reliable ferrule mating and ensure low insertion loss and return loss during the linking.
The main function of hybrid fiber optic adapter is for connection between various different fiber opticconnectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.

Features
High-precision sleeve
Insertion loss is low
The environment stability is strong
Easy to install
Simplex or duplex for choice

Applications
Telecommunications networks
Local area networks
Data processing networks
Cable television
Premises distribution
Testing Measurement Instruments
Industrial and military applications

Specification:

Polish Type	Unit	PC
Nominal fiber O/D	um	125±2
Insertion Loss	dB	≤0.20
Return Loss	dB	≥50
Mating Durability (500Cycles)	≤0.20dB
Temperature Stability	≤0.30dB
Operating Temperature	-40 ~ 85ºC
