Takfly Communications Co., Ltd. >> LC to Sc 62.5/125 Duplex Fiber Optic Patch Cord

LC to Sc 62.5/125 Duplex Fiber Optic Patch Cord

LC to Sc 62.5/125 Duplex Fiber Optic Patch Cord
Price: US $ 2.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: LC-SC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Patch Cord: Patch Cord OEM Supplier
Fiber Type: 0.9mm 2.0mm 3.0mm
Color: Red Yellow Green or Customized
Brand Or Logo: Customized
Fiber Length: 1m 3m 5m 10m or Customized
Warranty: 1year to 3 Years
Delivery Time: Within 1 to 3 Days
Insertion Loss: Less Than 2dB
Return Loss: More Than 3dB
Application: Communication
Type: Multi-mode Fiber
Connection Structure: LC
Certification: CE

Product Description

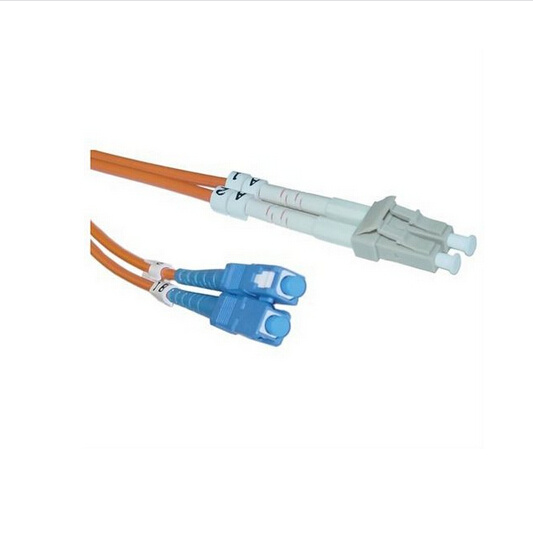

LC to Sc MM 62.5/125 5meter Duplex Fiber Optic Patch Cord


This 5 meter (about 16 feet) fiber optic cable is terminated with a LC (Lucent Connector) connector on one end and a SC (Subscriber Connector) connector on the other end. It is a multimode fiber (62.5 micron core) designed to transmit data across shorter distances at LAN speeds. The cord is duplex (two fibers) which means it permits synchronous communication between devices. The cladding diameter is 125 microns. (Not for Home Theater)


Specifications


1.1m 3m 5m 10m
2.2m or 3mm loose tube
3. UPC or APC end face


Suited for equipment jumper cable, cross connects, and work area connections. All patch cords are manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. ST/ST, SC/SC FC/FCLC/LC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.


FEATURE

Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Telcordia's GR-326-Core, IEC Standard
Green Production, RoHS Standard
High stability various environments
Customize order available

DescriptionsSM(PC)SM(UPC)SM(APC)MM(PC)
Insertion loss<0.3dB≤0.2dB<0.3dB<0.3dB
Return loss≥50dB≥50dB≥65dB≥35dB
Repeatability≤0.1≤0.1≤0.1≤0.1
Durability<0.1dB typical change,1000 mating
Interchangeability≤0.2dB
Vibration≤0.2dB
Operating Temperature- 20°C ~ + 70°C
Storage Temperature- 40°C ~ + 80°C
Cable Diameter3.0mm, 2.0mm, 0.9mm
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
