LC/UPC 0.9mm mm Fiber Optic Connector

Name: LC/UPC 0.9mm mm Fiber Optic Connector
Brand: all-electronics-online.com
SKU: 714015012
Availability: InStock
Rating: 4.8 (84 reviews)

Price:	US $ 0.69-1.58/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Mm Optic Connector
Type:	Embedded and Straight-Through
Cable Jacket Color:	Yellow,Blue,Green,Aqua,Red,Magenta,Beige
Cable Outer Diameter:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Polishing:	PC,Upc,APC
Fiber Type:	OS1,OS2,Om1,Om2,Om3,Om4
Cable Jacket Material:	PVC,LSZH,Ofnp,PE
Connector Color:	Green, Blue or Beige
Return Loss:	PC>30dB; APC> 50dB
Insertion Loss:	<0.3 dB
Connector:	Sc,LC, St,FC Optional
Transmission Medium:	Multimode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	LC Fiber Connector
Connector Type:	LC-PC
Brand:	Takfly

Product Description

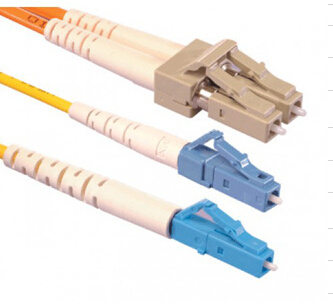

LC/UPC 0.9mm Mm Fiber Optic Connector

Optical Fiber Connector can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. Our quick connector system removes any requirement for epoxy, adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.High quality but low price because we bring these in direct from the manufacturer.

Feature
1).Low insertion loss
2).High return loss (low amounts of reflection at the interface)
3).Ease of installation
4).Low cost
5).Reliability
6).Low environmental sensitivity
7).Ease of use

Application
1).CATV
2).Active device termination
3).Telecommunication networks
4).Metro
5).Local Area Networks (LANS)
6).Data processing networks
7).Test equipment
8).Premise installation
9).Wide Area Networks(WANS)

Specifications

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
