| Connector: |
LC-LC |
| Polish Type: |
Upc |
| Fiber Counts: |
Duplex |
| Fiber Mode: |
Singlemode |
| Insertion Loss: |
≤0.2dB |
| Durability: |
≤0.1dB |
| Flammability Rate: |
UL94-V0 |
| Working Temperature: |
-25 to 70°c |
| Product Highlights: |
Low Insertion Loss and Good Durability |
| Fiber Optic Adapter Features: |
High-Precision Ceramic Sleeve |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
APC |
| Connector Type: |
LC Upc |
Product Description

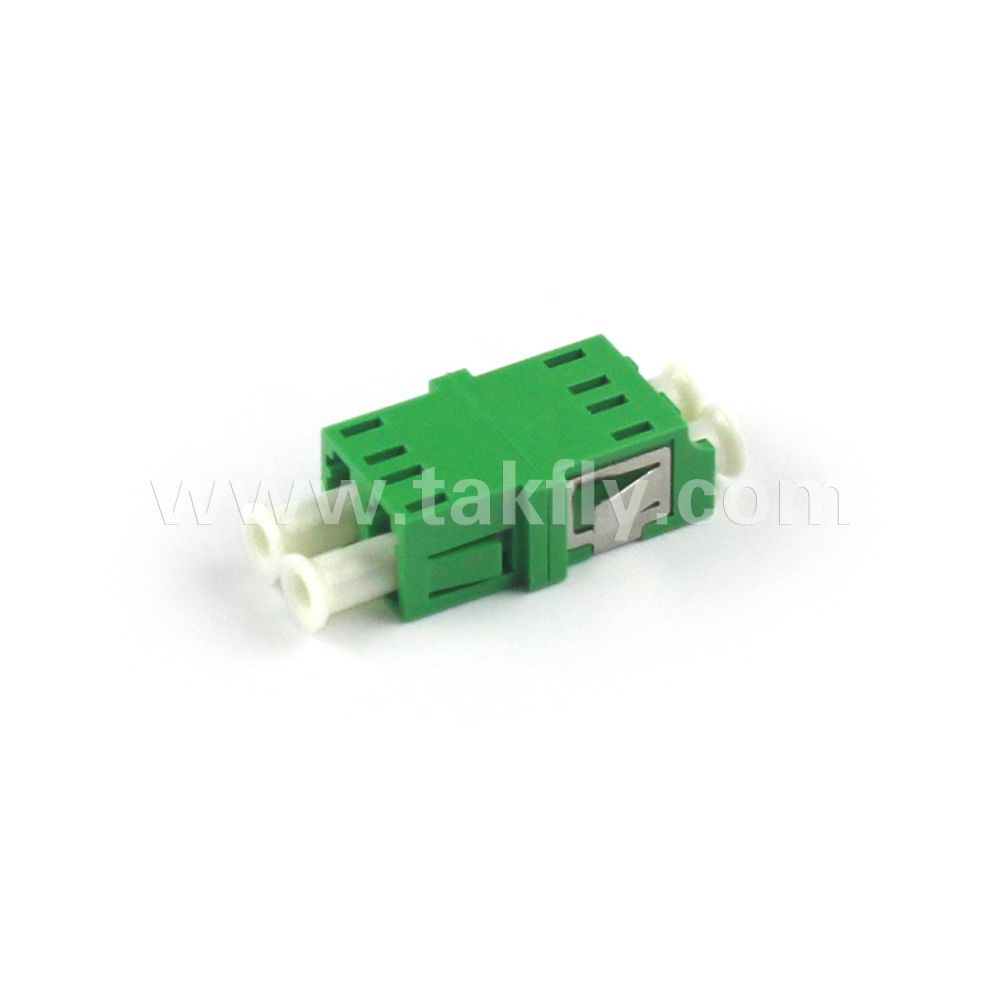

LC/UPC to LC/UPC Duplex Singlemode SC Type Plastic Fiber Optic Adapter(Connecting a LC Duplex connector to a LC Duplex connector to extend the length of a cable run.)
LC/UPC to LC/UPC Singlemode Duplex SC Type Plastic Fiber Optic Adapter, 0.2dB insertion loss
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS.COM supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
Product Details
| Connector Type | LC-LC | Polish Type | UPC |
| Fiber Counts | Duplex | Fiber Mode | Singlemode |
| Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
| Flammability Rate | UL94-V0 | Working Temperature | -25~70°C |
LC/UPC Fiber Optic Adapter in Data Center
Fiber optic adapter is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines, which has the merits of low insertion loss, good interchangeability and reproducibility. The following figure shows LC/UPC adapter used together with fiber adapter panel and fiber enclosure in data center solutions.
Product Highlights
- Low insertion loss and good durability
- Good repeatability and changeability
- Excellent temperature stability
Fiber Optic Adapter Features Small Size but Excellent PerformanceGood Protection with Dust Cap
The fiber optic adapter is loaded with corresponding dust cap to prevent it from dust and keep it clean.Simply Connecting Two Fiber Optic CablesAllowing two devices to communicate from a distance through a direct connection with the fiber optic line.
High-precision Ceramic Sleeve
The internal ceramic sleeve is high precision to ensure maximum connection between fiber jumpers.
High-precision Ceramic Sleeve
The internal ceramic sleeve is high precision to ensure maximum connection between fiber jumpers.
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
