LC Upc-LC Upc Fiber Optic Patch Cables

Name: LC Upc-LC Upc Fiber Optic Patch Cables
Brand: all-electronics-online.com
SKU: 748160965
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 0.5-3.99/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTPC SMDX LC-LC 012
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insert Loss:	< 0.20db
Return Loss:	> 50db
Length:	Customized Lengths 0.5m-50m
Full Types Of Optical Patch Cords:	Sc, LC, FC,St, E2000, Mu, MPO......
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	LC-LC
Brand:	Datolink
Sheath Material:	PVC or LSZH

Product Description

Products detail:

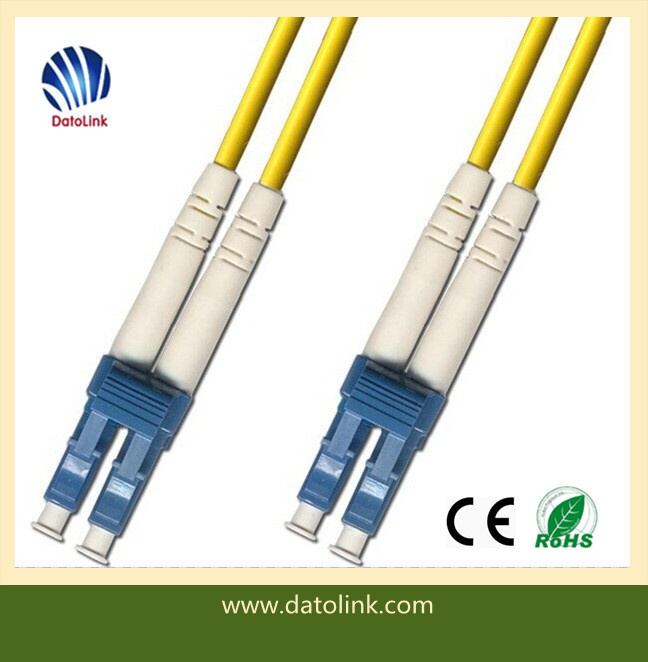

Fiber Optic LC UPC-LC UPC SM 9 125 Duplex Patch Cord
Specifications
Fiber Optic LC/UPC to LC/UPC Patch Cord
Duplex, Single-mode
0.9/2.0/3.0mm
Customized lengths (1m/2m/3m...)
High return loss

Features:

Low insertion loss(≤ 0.20dB)and high return loss(≥ 55 dB)
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment connector

Applications:

Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Packaging:

One piece per PE bag with stick label (we could add customer's logo in the label. )
OEM
Standard and customized OEM products from small to large quantity are welcome.
Compliance with global environmental industry with RoHS and SGS standards.
All products are 100% fully tested by our technical expertise.

Shipping:
Door to Door: By express (such as DHL, UPS, TNT, FedEx, Aramex etc. )
Airport to Airport: By air
Seaport to Seaport: By sea (our location Shenzhen is a seaport. )

Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80°C	From -40 to + 80°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm
