LC/Upc Sm 12 Colors Fiber Optic Pigtail

Name: LC/Upc Sm 12 Colors Fiber Optic Pigtail
Brand: all-electronics-online.com
SKU: 720306395
Availability: InStock
Rating: 5 (106 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCS12F-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Color:	12 Colors Cable
Cable Mode:	Sm Om1 Om2 Om3 Om4
Fiber Core:	6 Fiber Cores to 12 Fiber Cores
Jacket:	PVC or LSZH
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Core:	12 Fiber Cores
Sheath Material:	Lszh

Product Description

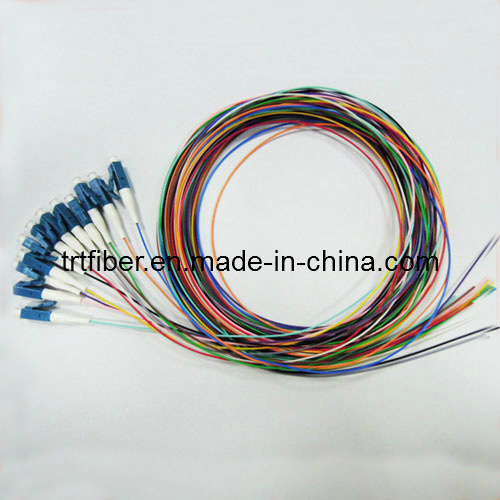

Fiber pigtail, LC/UPC SM 12 Fiber colors fiber pigtail, with LC Fiber Optical Connector
Low price pigtail, fast delivery pigtails

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
Fiber connector PC/UPC/APC polishing
Fiber cable Diameter:0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Fiber cable Simplex or duplex is available
Fiber cable PVC or LSZH cable is available
Excellent changeability and repeatability
Tensile strength:10N
Operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of fiber optic cable:12 colors

Spec.	LC fiber optic patch cord
Insertion loss	Less than 0.3 dB
Return loss	UPC more than 55 dB,APC more than 60dB
Repeatability	Less than 0.2 dB
Changeability	Less than 0.1 dB
Operating temperature range	-40 to 80°C
Storage temperature range	-40 to 80°C
Tensile strength	100N
Min. bending radius	35mm
Length	Customed

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
