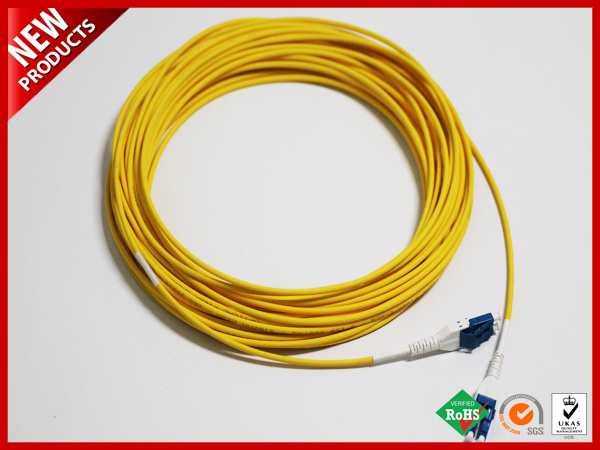

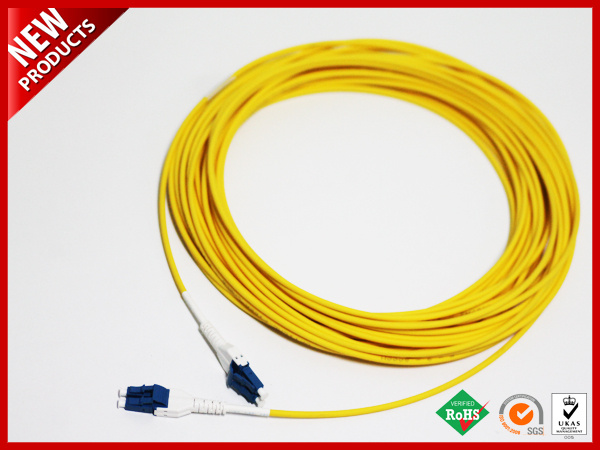

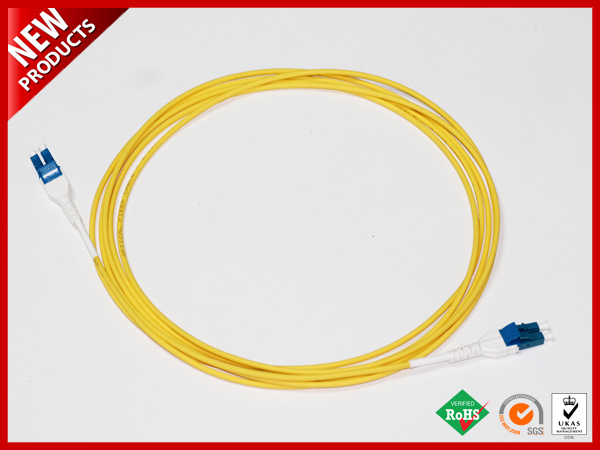

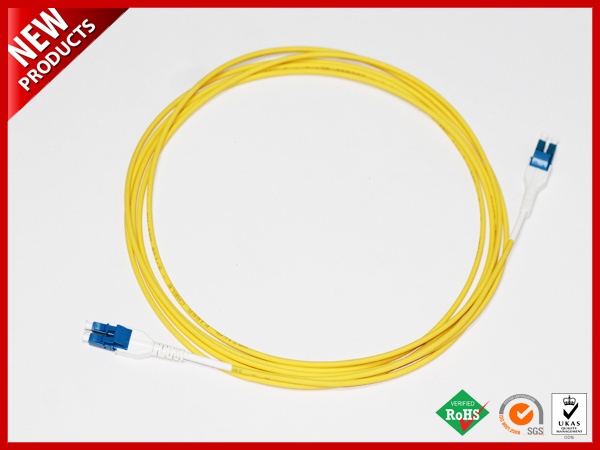

LC UPC to LC UPC Duplex 3.0mm PVC OFNR OS2 Singlemode Uniboot Fiber Patch Cable

Name: LC UPC to LC UPC Duplex 3.0mm PVC OFNR OS2 Singlemode Uniboot Fiber Patch Cable
Brand: all-electronics-online.com
SKU: 691513901
Availability: InStock
Rating: 4.9 (51 reviews)

Price:	US $ 0.9-2.1/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0898
Cable OD:	3.0mm
Connector:	LC
Fiber Type:	SM
Fiber Count:	2
Cable Color:	Yellow
Insertion Loss:	0.3dB
Cable Material:	PVC
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

LC UPC to LC UPC Duplex 3.0mm PVC OFNR OS2 Singlemode Uniboot Fiber Patch Cable

Item Overviews

Our specialist of efficient production of high quality cables. With a strong focus on network and electronic
connectivity products, we've become leading experts in our field. We use only A-grade components and
the most advanced construction technologies to optimize cable performance and assure compliance to
industry specifications for each cable and its designated application. Our products are available directly
to consumers and resellers as well as through key distributors.

Applications

√ Data centre High cabling density applications;
√ LAN and WAN.

Keyed Characteristic

√ Full duplex in a single 3mm diameter cable;
√ Available in OM3, OM4, OS1/OS2 (ITU-T G.652D or G.657A1) or ITU-T G.657A2 cabled fibre types;
√ Available with Enhanced (-UNI) or Low Loss Premium (-UNIDC) optical performance;
√ Available with LSZH, Plenum and Riser rated cable in 2.4mm or 3mm diameter;
√ Cost effective;
√ Save up to 68% of space in cabinets and cable ways;
√ Protects network polarity.

Connector Specification

Optical Performance - Standard	Single-mode	Multimode
Insertion loss (Max/Master)	0.25 dB	0.25 dB
Ave/Master	0.18 dB	0.15 dB
Ave/Random	0.18 dB	0.20 dB

Cable Specification

Characteristic	Units	3.0mm Round Duplex
Cable Material	N/A	Plenum/Riser
Strength Member	N/A	Aramid
Crush	N/100mm	1000N
Operating Temperature	ºC	-40 to 80
Secondary Buffer Diameter	μm	900+/-50
Minimum Bending Radius	mm	10D (installed); 20D (loaded)

Connector Drawing

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
