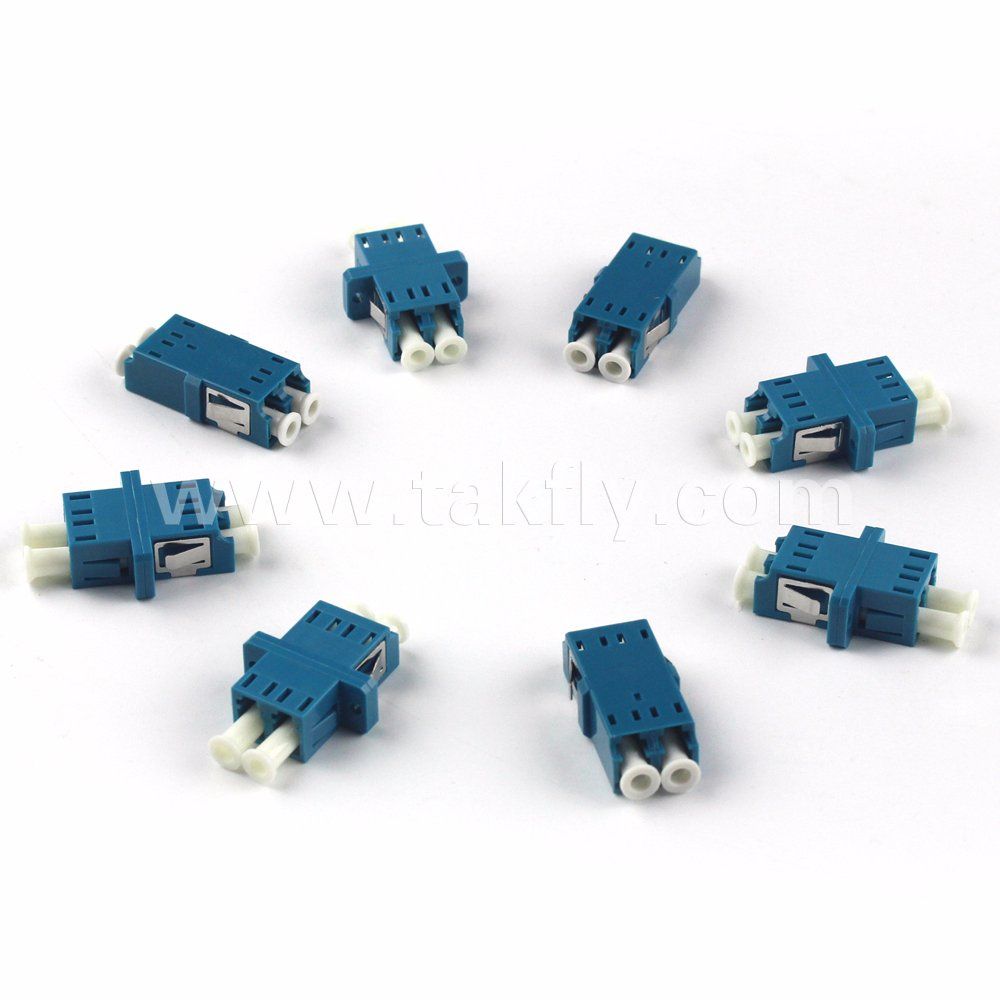

LC/Upc to LC/Upc Single-Mode Duplex Fiber Optic Adapter with Ear

Prod Model:	DF-ADPT-002
Products Name:	LC to LC Sm Duplex Fiber Optic Adapter with Ear
Type:	LC/Upc to LC/Upc
Sleeves Material:	Zirconia or Phosphor Bronze
Compatible Info:	IEC874-14 & IEC874-19
Adapter Type:	Sm and mm
Adapter Style:	Simplex/Duplex/Quad
Insertion Loss:	Same or Less Than 0.2dB
Return Loss:	More Than 45dB
Assebly Times:	>500 Times
Temperature Range:	From Under 40 to 85 Degree
Transmission Medium:	Single-Mode
Structure:	LC
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	LC/Upc-LC/Upc

Product Description

LC/Upc to LC/Upc Single-Mode Duplex Fiber Optic Adapter with Ear

Features:

1.Single mode, Multimode and Angle PCNTT standard compatible
2.Available with flange for Simplex, saving panel space
3.Meet JIS5974 and bellcore GR-326 standard
4.Compliant with IEC874-14 & IEC874-19
5.All parts compliant with ROHS

Application:

1.Telecommunication;
2.CATV;
3.LAN & WAN;
4.Network;
5.Broadband;
6.FTTH;

Parameter:


Product	SC Adapter
Mode	S.M	M.M	APC
Insertion Loss	Type 0.4 dB, Max 1dB	Type 0.2 dB, Max 0.5dB	Type 0.15dB, Max 0.4dB
Return Loss	50dB, Min 40dB	30dB , Min 20dB	50dB, Min 40dB
Mating Durability(500 timer)	Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)	Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature	-40ºC~+85ºC
Storage Temperature	-40ºC~+85ºC


Order Information:


CODE	SLEEVE	TYPE	HOUSING
H26	No	1. Simplex	1. SM Blue 2. MM Blue 3. APC Green

Company Information:

Takfly, established in 2000, has been manufacturing and exporting in fiber optic communications for more than 15 years. Mainly supplying fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. Our goods have passed RoHS, CE, ISO9001, FCC, etc. verifications.

With the development of optical communications, Takfly's turnover has been increasing steadily. To strengthen the brand recognition and communication with more clients, Takfly participates in several industrial exhibitions every year in the whole word.

The products we sell is manufactured by our own factories. Our main aim is to supply high quality goods to our customers. Therefore, Takfly has imported foreign advanced production equipment 5 years ago, mainly made in German, Japan. The skilled technicians and professional sales team are available. Standard production management system has been built. Any requirements and inquiries will be processed with 24 hours. Strict test is a must before delivery. Apart from these, we have steady transport service. So, we can provide you the optimal transportation.

No complaints  is one of our aims. We believe that our products can help you win good reputation and market share.

Hereby, we sincerely hope to establish a long-term business relationship with you in the future.
Welcome to visit Takfly Communications Co., Ltd. We are waiting for your coming!

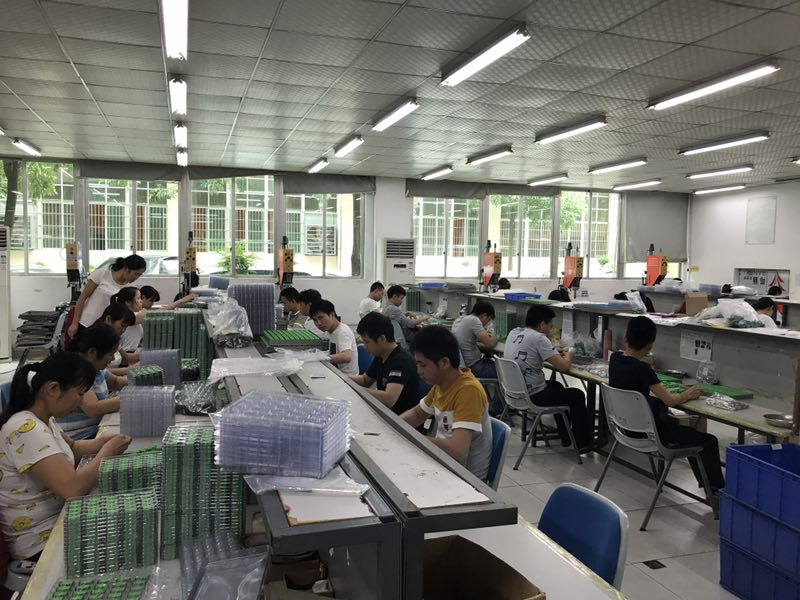

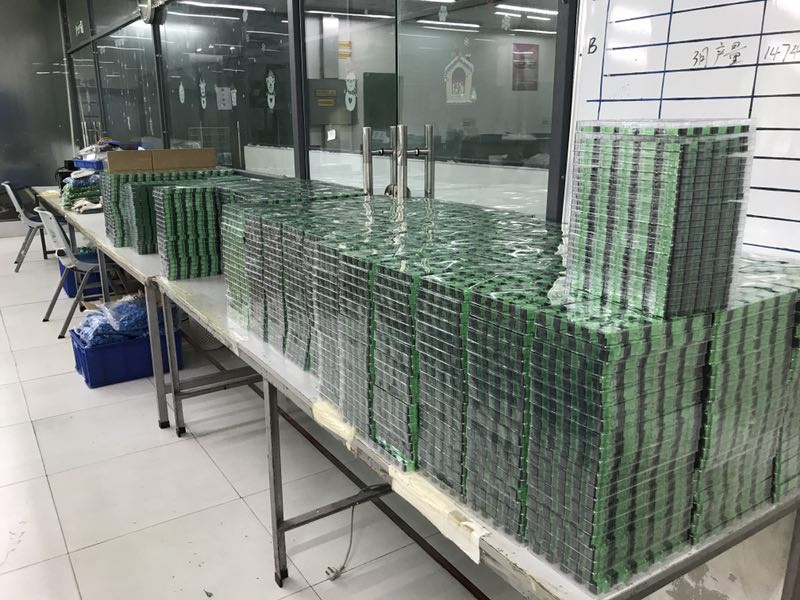

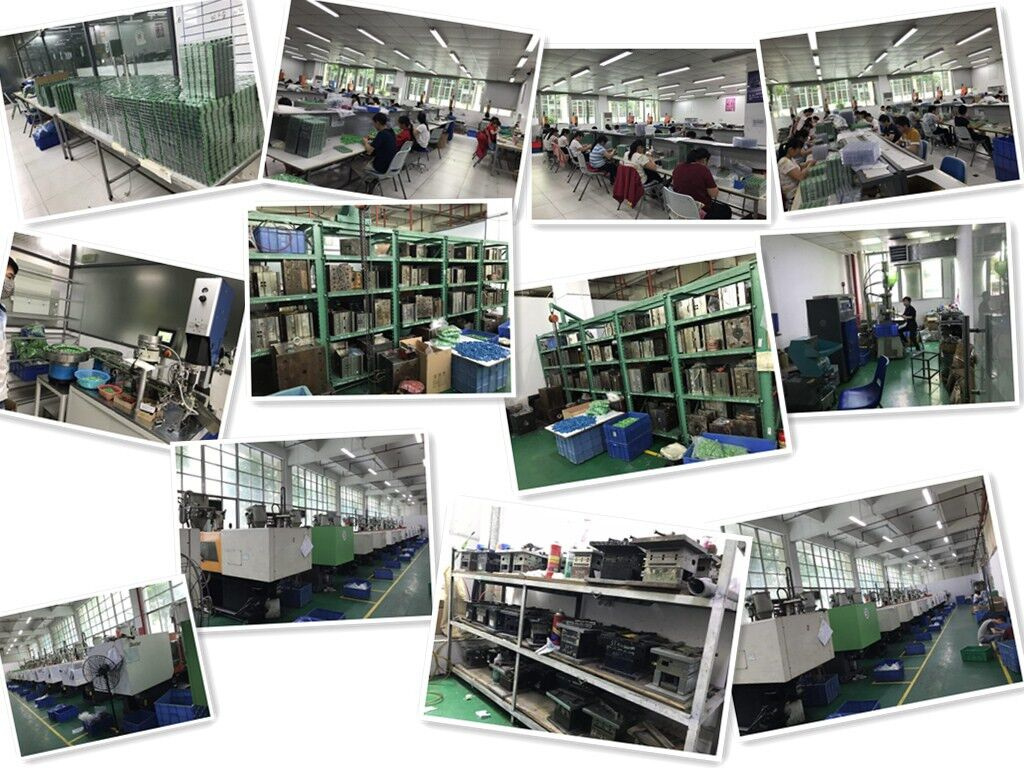

Company images:








Why choose Takfly ?

Service:

1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable

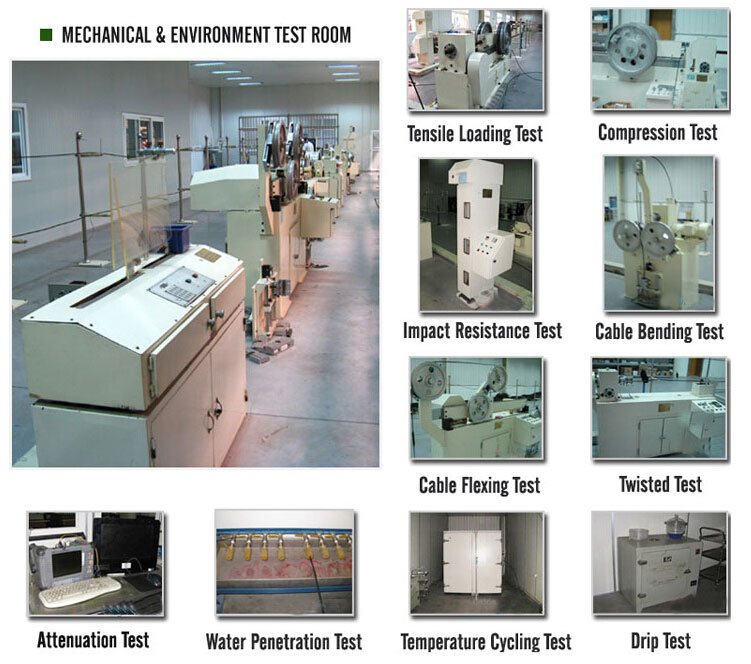

Quality Control:

All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping

Advantage:

1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service

Delivery:

1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB

Shipping:

1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because  of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.

Having a nice shopping time!
