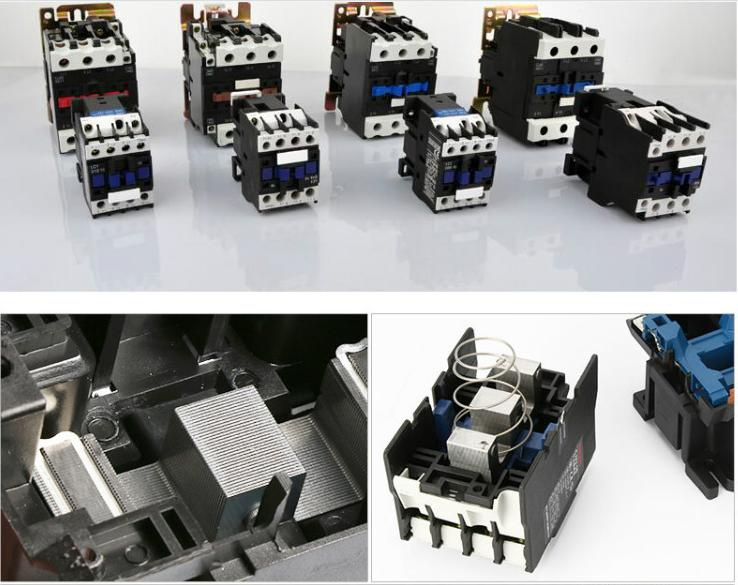

LC1-09 AC Contactor

Name: LC1-09 AC Contactor
Brand: all-electronics-online.com
SKU: 825163075
Availability: InStock
Rating: 4.4 (105 reviews)

Price:	US $ 1.95/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CXJ
Application:	Power Tools
Operating Speed:	High Speed
Operation Mode:	Electric Motor
Magnetic Structure:	Inductor Type
Structure:	Rotating Pole Type (',Armature Fixed)
Number Of Poles:	Three-Phase
Ventilation:	Protection Type
Certification:	Ce
Brand:	Sontune

Product Description

CJX2-D09~CJX2-D95 (LC1-D) Series AC CONTACTOR :

Type		D09	D12	D18	D25	D32	D40	D50	D65	D80	D95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10⁴)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10⁴)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10⁴)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
