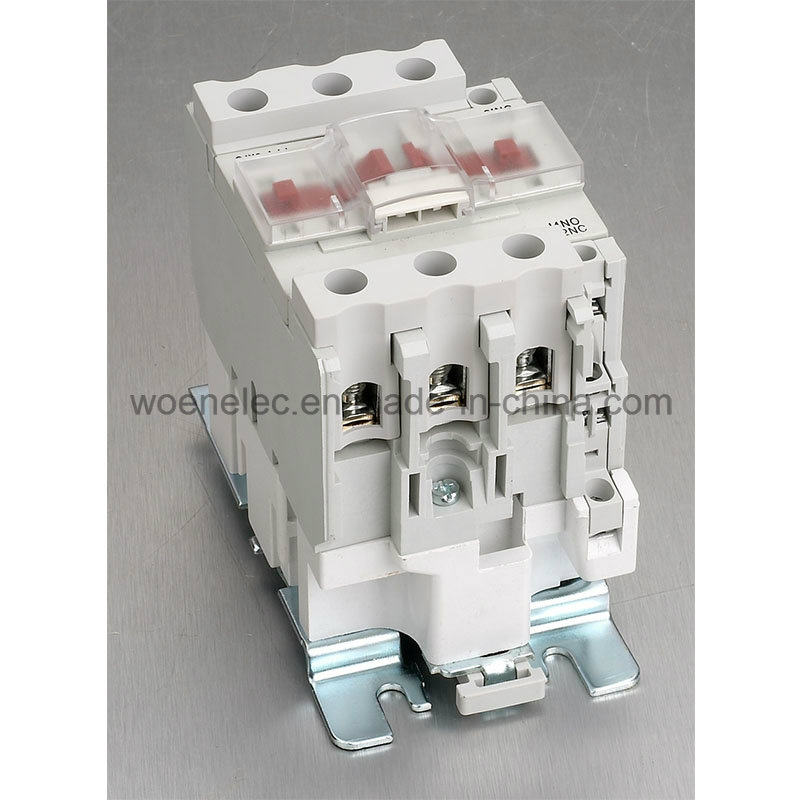

LC1-D Cjx2 3p AC Contactor

Name: LC1-D Cjx2 3p AC Contactor
Brand: all-electronics-online.com
SKU: 714324212
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-50

Product Description

LC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auciliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Type	Rated Power KW/HP( AC-3 )			Rated Current A(AC-3)			Rated thermal Current Ith:(A)	Rated Insulation Voltage Ui:(V)	Auxiliary Contacts AC-15					Electrical / Mechanical Life (Million Times)
	Rated Power KW/HP( AC-3 )			Rated Current A(AC-3)					Contact Arrangement		Rated Current (A)		Rated thermal Current Ith:(A)
	200-220V	380- 440V	500-550V	200-220V	380- 440V	500-550V			Standard	Special	200-220V	380- 440V
LC1-D09	2.2/3	4/5.5	5/7	11	9	7	20	660	1NO	/	1.6	0.95	16	1/5
LC1-D12	3/4	5.5/7.5	7.5/10	15	12	9	20	660	1NO	/	1.6	0.95	16	1/5
LC1-D18	4/5.5	7.5/10	9/12	22	18	12	32	660	1NO	/	1.6	0.95	16	1/5
LC1-D25	5.5/7.5	11/15	15/20	30	25	18	40	660	1NO	/	1.6	0.95	16	1/5
LC1-D32	7.5/10	15/20	18.5/25	40	32	21	50	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D40	11/15	18.5/25	30/40	50	40	34	60	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D50	15/20	22/30	37/50	60	50	39	80	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D65	18.5/25	30/40	37/50	75	65	42	80	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D80	22/30	37/50	45/60	90	80	49	110	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D95	25/35	45/60	45/60	110	95	59	130	660	1NO+1NC	/	1.6	0.95	16	1/5
