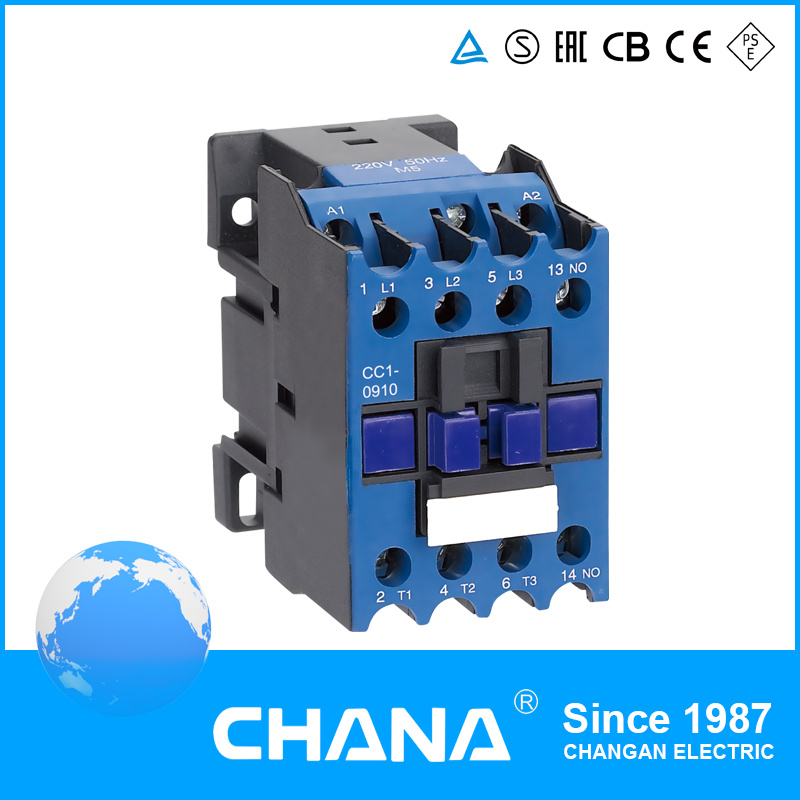

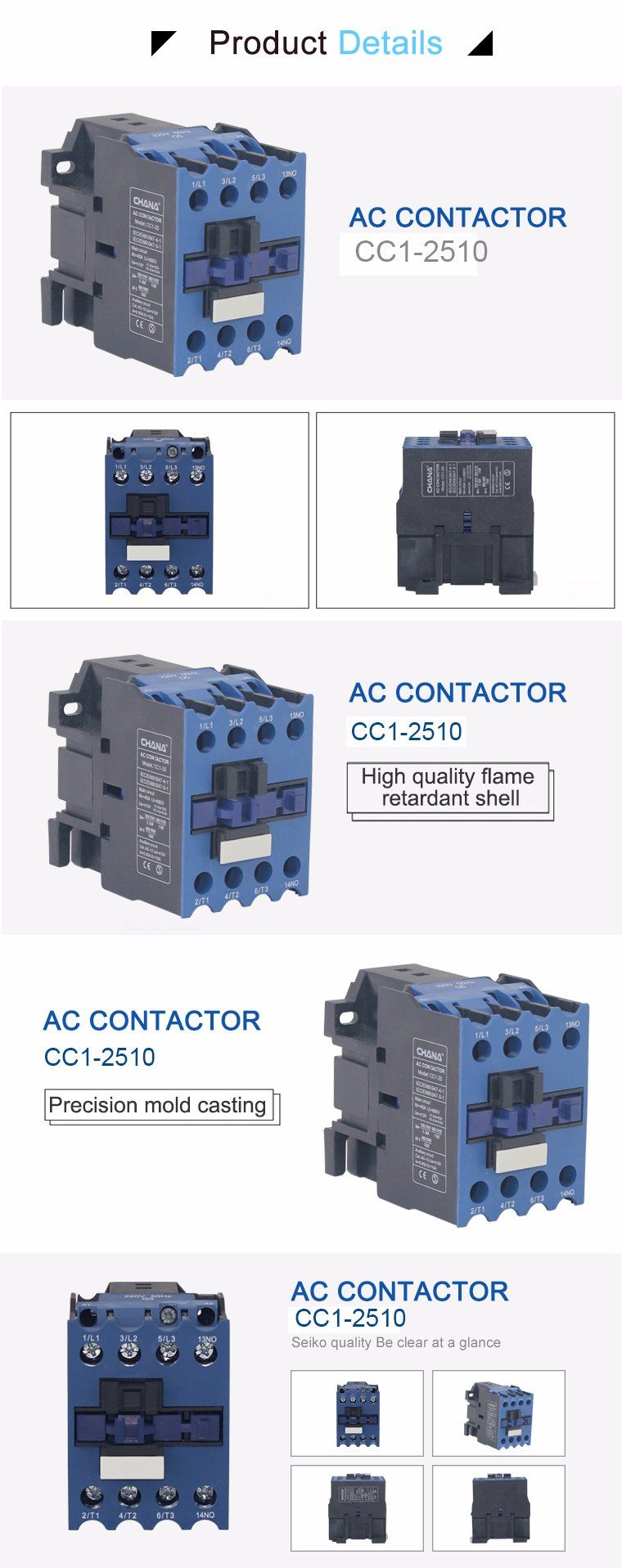

LC1-D Cjx2 Magnetic AC Contactor (09-95A) Cc1- (09-95)

Prod Model:	CC1-(09-95)
Manufacturer:	Original Factory
Company Credit Rate:	AAA

Product Description

Product Description



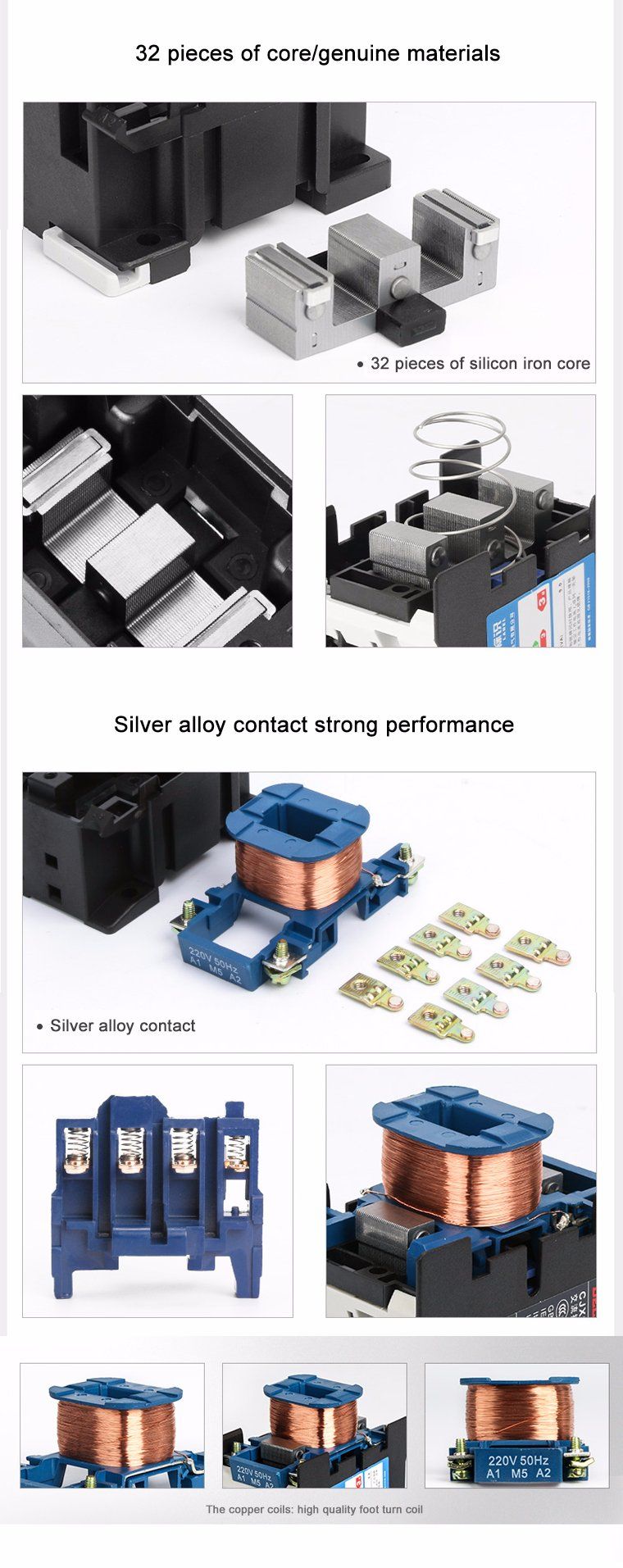

1,General
Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with                                    thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

24

36

42

48

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

B5

C5

D5

E5

F5

G5

M5

P5

U5

Q5

N5

R5

S5

Y5

60Hz

B6

D6

E6

F6

G6

M6

U6

Q6

R6

T6

50/60Hz

B7

D7

E7

F7

M7

P7

Q7

N7

R7

Control Coil Valtage (Dc Coil Operation)

Volts(VAC)

12

24

36

48

110

220

Code

JD

BD

CD

ED

FD

MD

2 Technical Date

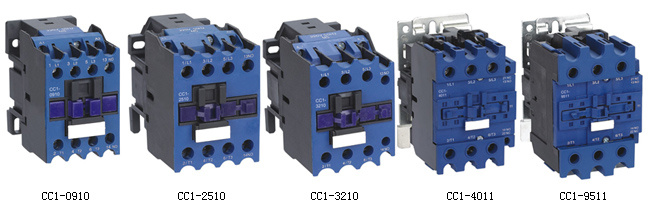

Model No.		CC1-09	CC1-12	CC1-18	CC1-25	CC1-32	CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	9	12	18	25	32	40	50	65	80	95
	AC-4 Le(A)	3.5	5	7.7	8.5	12	18.5	24	28	37	44
	220/240 kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
Power Controlled 3Ph Cage Motor AC3	380/415 kW	4	5.5	7.5	11	15	18.5	22	30	37	45
	660/690 kW	5.5	7.5	10	15	18.5	30	33	37	45	45
Eletrical life(x10^3 operations)	AC-3	1000	1000	1000	1000	800	800	600	600	600	600
	AC-4	200	200	200	200	200	150	150	150	100	100
Mechainical life(x10^3 operations)		10	10	10	10	8	8	8	8	6	6
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
	A	20	20	32	40	50	63	80	80	100	125
Main Circuit		3P or 4P

3,Techincal Information

Model	Cabling(Cu)				Screw Size	Tughtening Torquw(N.M)
	Number of Piece	Flexible Cable withCold-pressed sockted(mm)^2	Flexible cable without cold-pressed socket(mm^2)	Inflexible Cable(mm^2)
CC1-09	1~2	2.5	4	4	M3.5	0.8
CC1-12	1~2	2.5	4	4	M3.5	0.8
CC1-18	1~2	4	6	6	M3.5	0.8
CC1-25	1	4	10	6	M4	1.2
	2	4	6	6	M4	1.2
CC1-32	1	4	10	6	M4	1.2
	2	4	6	6	M4	1.2
CC1-40	1	10	16	10	M4	3.5
	2	10	10	10	M8	3.5
CC1-50	1	16	25	25	M8	3.5
	2	16	16		M8	3.5
CC1-65	1	16	25	25	M8	3.5
	2	16	16		M8	3.5
CC1-80	1	50	50	50	M8	3.5
	2	25	35		M10	4
CC1-95	1	50	50	50	M10	4
	2	25	35		M10	4
