LC1-D Mechanical Interlocking Contactor

Name: LC1-D Mechanical Interlocking Contactor
Brand: all-electronics-online.com
SKU: 690367265
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEC2-2D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

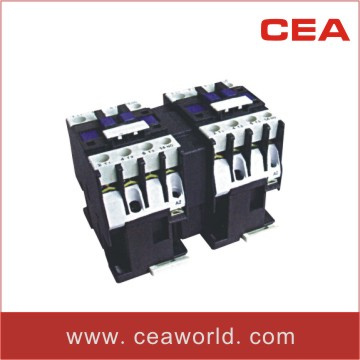

CEC2-2D LC1-D Mechanical Interlocking Contactor

Type	Rated Current AC-3(A)	Controlled Power (KW)
Type	Rated Current AC-3(A)	220V	380V	415V	440V	660V
CEC2-2D09	9	2.2	4	4	4	5.5
CEC2-2D12	12	5.5	5.5	5.5	5.5	7.5
CEC2-2D18	18	7.5	7.5	9	9	10
CEC2-2D25	25	5.5	11	11	11	15
CEC2-2D32	32	7.5	15	15	15	18.5
CEC2-2D40	40	18.5	18.5	22	22	30
CEC2-2D50	50	15	22	25	30	33
CEC2-2D63	63	18.5	30	37	37	37
CEC2-2D80	80	22	37	45	45	45
CEC2-2D95	95	22	45	45	45	41
CEC2-2D115	115	30	55	59	59	80
CEC2-2D150	150	40	75	80	80	100
CEC2-2D170	170	55	90	100	100	110
CEC2-2D205	205	63	110	110	110	129
CEC2-2D245	245	75	132	132	132	160
CEC2-2D300	300	100	160	200	200	220
CEC2-2D410	410	110	220	250	250	280
CEC2-2D475	475	147	265	280	280	355
CEC2-2D620	620	200	335	400	400	450

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
