LC1-D09 12 18 New Type Black AC Contactor

Name: LC1-D09 12 18 New Type Black AC Contactor
Brand: all-electronics-online.com
SKU: 812697175
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-D
Case Pack:	50 PCS a Carton
Theory:	Electromagnetic Relay
Size:	Miniature

Product Description

Contactor LC1-D NEW series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.

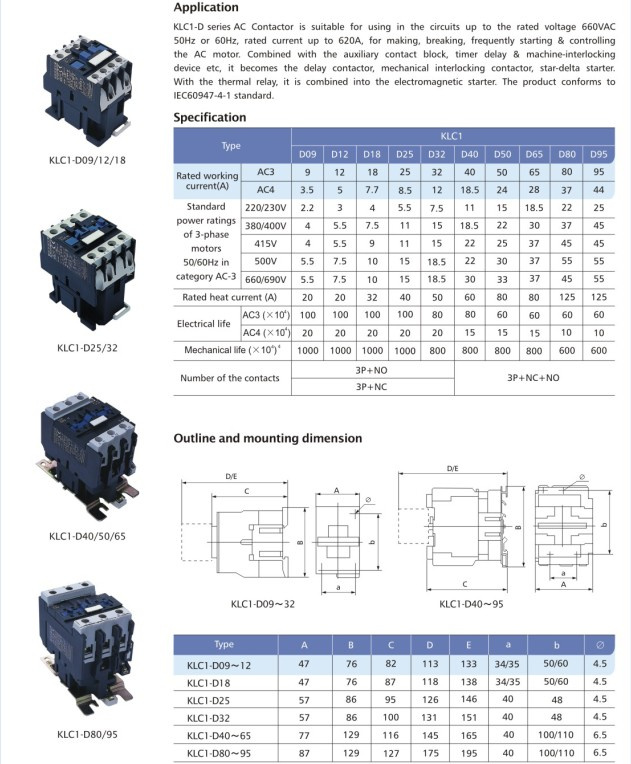

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Installation Method
				220V	380V	415V	440V	660V
LC1-0910	660	20	9	2.2	4	4	4	5.5	3P+1NO	1with two screws 235mm din rail
LC1-0901	660								3P+1NC
LC1-1210	660	20	12	3	5.5	5.5	5.5	7.5	3P+1NO
LC1-1201	660								3P+1NC
LC1-1810	660	32	18	4	7.5	9	9	9	3P+1NO
LC1-1801	660								3P+1NC
LC1-2510	660	40	25	5.5	11	11	11	15	3P+1NO
LC1-2501	660								3P+1NC
LC1-3210	660	50	32	7.5	15	15	15	18.5	3P+1NO
LC1-3201	660								3P+1NC
LC1-4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	1with three screws 275mm 0r 35mm din rail
LC1-5011	660	80	50	15	22	25	30	33
LC1-6511	660	80	65	18.5	30	37	37	37
LC1-8011	660	125	80	22	37	45	45	45
LC1-9511	660	125	95	25	45	45	45	45
