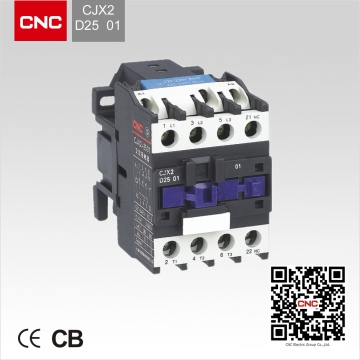

LC1-D09 (CJX2-D) AC50Hz 4p 3p Electrical Contactor

Name: LC1-D09 (CJX2-D) AC50Hz 4p 3p Electrical Contactor
Brand: all-electronics-online.com
SKU: 798789535
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-D

Product Description

Product Description
CJX2-09(LC1-D0901) AC Magnetic Contactor
Product Description
Application
CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.
Standard control voltage

Voltage	50Hz	60Hz	50/60Hz
24	B5	B6	B7
42	D5	D6	D7
48	E5	E6	E7
110	F5	F6	F7
220	M5	M6	M7
230	P5	-	P7
240	U5	U6	U7
380	Q5	Q6	Q7
400	V5	-	V7
415	N5	-	N7
440	R5	R6	R7
500	S5	-	-
660	Y5	-	-

Model	Rated current AC3 Ue ≤ 440V	Rated power AC3 Three-phase motor 0≤40°
Model	Rated current AC3 Ue ≤ 440V	220/440V	380/400V	400V	500V	600/690V	1000V
	A	KW	KW	KW	KW	KW	KW
LC1-D09 (CJX2-D09)	9	2.2	4	4	5.5	5.5	-
LC1-D12 (CJX2-D12)	12	3	5.5	5.5	7.5	7.5	-
LC1-D18 (CJX2-D18)	18	4	7.5	9	10	10	-
LC1-D25 (CJX2-D25)	25	5.5	11	11	15	15	-
LC1-D32 (CJX2-D32)	32	7.5	15	15	18.5	18.5	-
LC1-D38 (CJX2-D38)	38	9	18.5	18.5	18.5	18.5	-
LC1-D40 (CJX2-D40)	40	11	18.5	22	22	30	22
LC1-D50 (CJX2-D50)	50	15	22	25/30	30	33	30
LC1-D65 (CJX2-D65)	65	18.5	30	37	37	37	37
LC1-D80 (CJX2-D80)	80	22	37	45	55	45	45
LC1-D95 (CJX2-D95)	95	25	45	45	55	45	45
Number of the contact	3P+NO
Number of the contact	3P+NC
Matched auxiliry contactor type	LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC)
Matched auxiliry contactor type	LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC)
Matched time delay auxiliary contact type	Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s)
Matched time delay auxiliary contact type	Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s)

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
