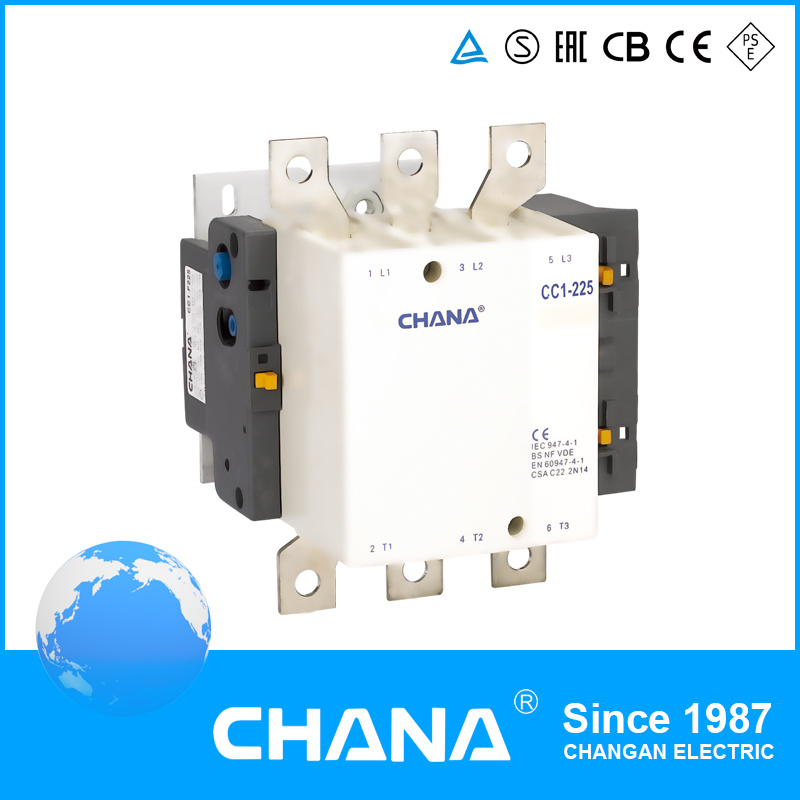

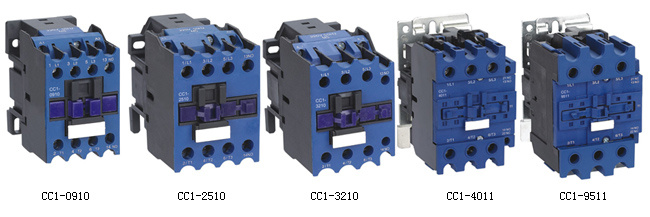

LC1-F 3p 4p Magnetic AC Contactor (115A-1000A) LC1-D

Prod Model:	LC1-D
Manufacturer:	Original Factory
Company Credit Rate:	AAA
Company Size:	Over 2000 Stuff
Size:	Miniature
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type
Theory:	Electromagnetic Contator
Protective Characteristics:	AC Contactor
Contact Form:	10,01,11,04,08

Product Description

Product Description




Free samples can be provided!!!


Specifications:
CC1-D=NC1-D,
CC1-F=LC1-F,
CC1-K=LC1-K

1,General

Specifications:
CC1-D=LC1-D,
CC1-F=LC1-F,
CC1-K=LC1-K

General
Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with                                    thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 800A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1


Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

24

36

42

48

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

B5

C5

D5

E5

F5

G5

M5

P5

U5

Q5

N5

R5

S5

Y5

60Hz

B6

D6

E6

F6

G6

M6

U6

Q6

R6

T6

50/60Hz

B7

D7

E7

F7

M7

P7

Q7

N7

R7

Control Coil Valtage (Dc Coil Operation)

Volts(VAC)

12

24

36

48

110

220

Code

JD

BD

CD

ED

FD

MD

2,Technical Date

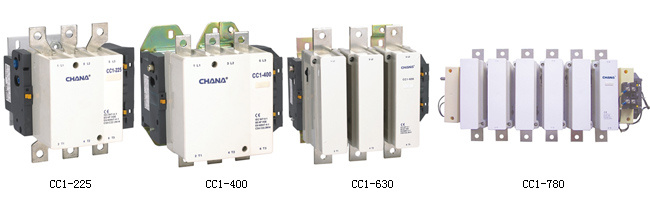

Model No.		CC1-115	CC1-150	CC1-185	CC1-225	CC1-265	CC1-330	CC1-400	CC1-500	CC1-630	CC1-780	CC1-800	CC1-1000
Rated Conventional Heating Current	Ith(A)	200	200	275	275	315	380	460	580	850	850	1200	1200
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	115	150	185	225	265	330	400	500	630	780	800	1000
	AC-4 Le(A)	52	60	79	86	105	117	138	147	188	195	240	320
Power Controlled 3Ph Cage Motor AC3	380/415 kW	55	75	90	110	132	160	200	250	335	400	400	500
	660/690 kW	80	100	110	129	160	220	280	335	450	475	475	560
Eletrical life(x10^3 operations)	AC-3	600	600	300	300	300	300	300	300	300	200	200	200
	AC-4	100	100	100	100	100	100	100	100	100	50	50	50
Mechainical life(x10^3 operations)		6	6	3	3	3	3	3	3	3	3	2	2
Matched Fuse	Size	RT16-1	RT16-2	RT16-2	RT16-2	RT16-2	RT16-3	RT16-3	RT16-4	RT16-4	RT16-4	RT16-4	RT16-4
	A	200	225	315	315	355	450	500	630	800	800	1250	1250
Main Circuit		3P or 4P

3,Terminal Connection

Model	Cabling(Cu)			Screw Size	Tughtening Torquw(N.M)
	Number of Piece	Cable Cross Section(mm)^2	Cu Busbar Cross Section(mm)^2
CC1-115	1	70~90		M6	3
CC1-150	1	70~90		M8	6
CC1-185	1	95~150		M8	6
CC1-225	1	95~150		M10	10
CC1-265	1	120~185		M10	10
CC1-330	1	185~240		M10	10
CC1-400	1(2)	240(150)	30x5	M10	10
CC1-500	2	150~185	40x5	M10	10
CC1-630	2	185~240	50x5	M12	14
CC1-800	2	185~240	50x5	M12	14
