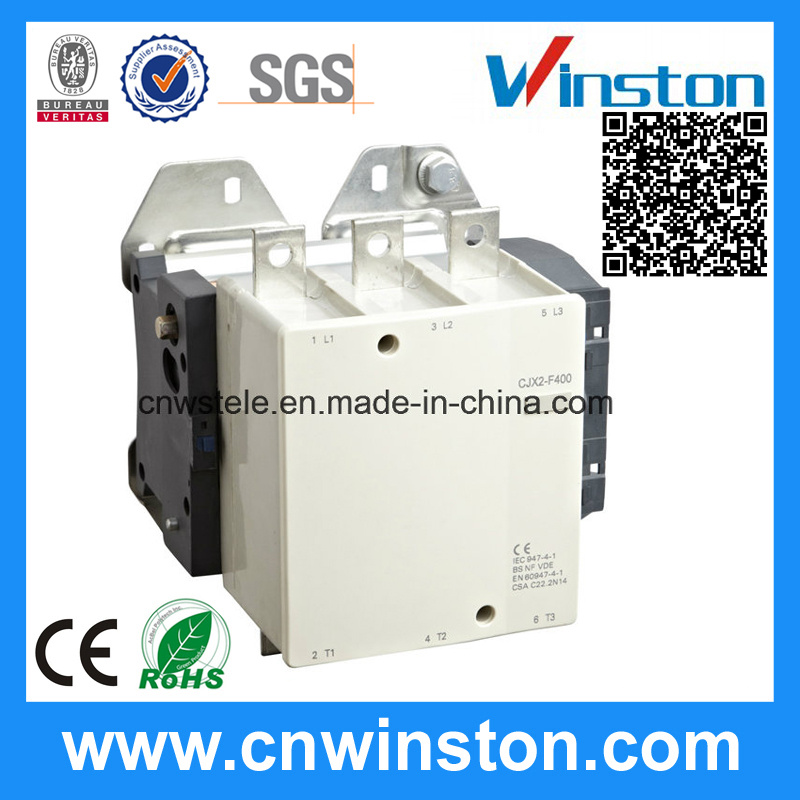

LC1-F Series High Quality AC Electrical Contactor with Ce

LC1-F Series High Quality AC Electrical Contactor with Ce
Price: US $ 28-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: LC1-F, CJX2-F
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand: Winston
Colour: White Gre
Rial: Plastic Sil
Manufacturer: OEM
Condition: Original New
Size: Miniature
Usage: Communication Relay
Theory: Magnetic Contactor

Product Description

Application

      CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply withIEC CJX2-F AC contactor is suitable for using in the circuits u to the rated voltage 380V AC 50Hz, current 800A, for long distance breaking circuit and frequently starting or controlling the motor. Italso can be sed for the conntrol of distribution circuits of rated current from 200A to 1500A. Itconforms to IEC60947-4-1.60947-4.

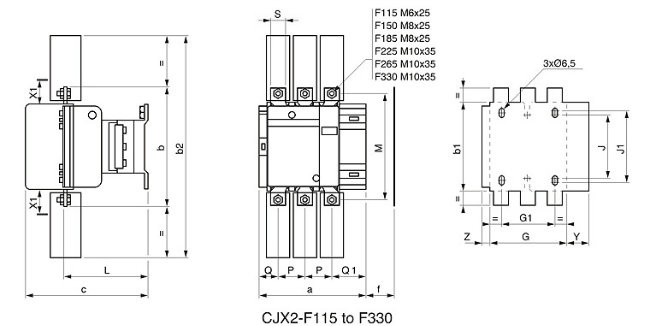

Dimension

Technical data
TypeRated operational current in AC-3(A)Max power ratings of 3-phase motors in category AC-3(kW)Operating frequency (time/hour) AC-3Electrical life AC-3 x104Mechanical life x104
220V 230V380V 400V415V440V500V660V 690V1000V
CJX2-F1151153055595975806512001201000
CJX2-F11541153055595975806512001201000
CJX2-F15015040758080901006512001201000
CJX2-F150415040758080901006512001201000
CJX2-F1851855590100100110110100600100600
CJX2-F18541855590100100110110100600100600
CJX2-F22522563110110110130129100600100600
CJX2-F225422563110110110130129100600100600
CJX2-F2652657513214014016016014760080600
CJX2-F26542657513214014016016014760080600
CJX2-F33033010016018020020022016060080600
CJX2-F330433010016018020020022016060080600
CJX2-F40040011020022025025728018560080600
CJX2-F400440011020022025025728018560080600
CJX2-F50050014725028029535533533560080600
CJX2-F500450014725028029535533533560080600
CJX2-F63063020033537540040045045060080600
CJX2-F630463020033537540040045045060080600
CJX2-F7807802204004254254504754060080600
CJX2-F780478022040042542545047545060080600
CJX2-F80080025045045045045047045060080600

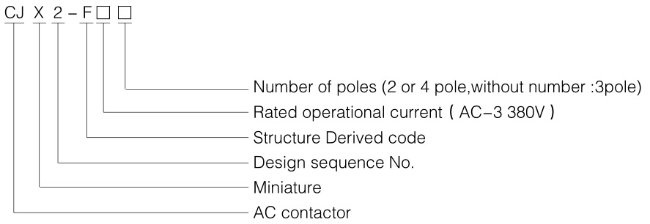

Model meaning

Detail
