LC1d AC Magnetic Contector for Switch Protecting

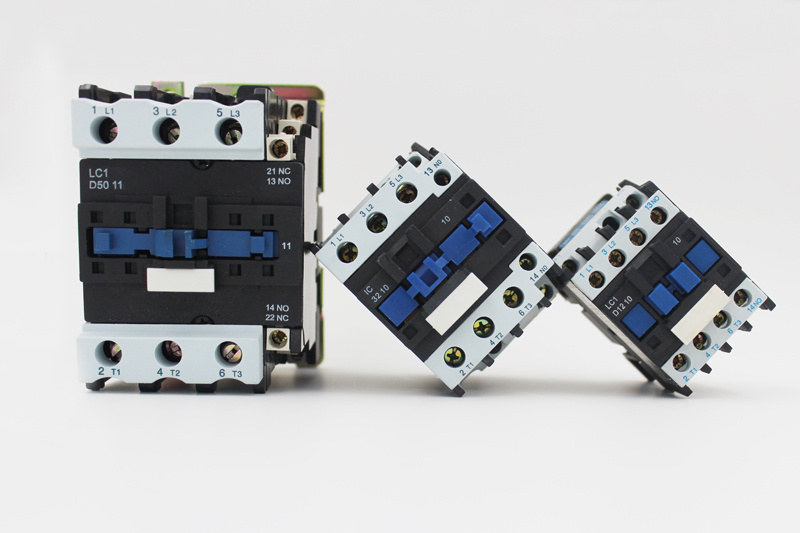

Name: LC1d AC Magnetic Contector for Switch Protecting
Brand: all-electronics-online.com
SKU: 813856825
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 2.1-7.35/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1D
Rated Current:	9A-95A
Rated Voltage:	24V 36V 110V 117V 220V 380V
Delivery Time:	2 Weeks
Printing:	as Per Customer's Logo
Service:	OEM and ODM

Product Description

Product Description

LC1D AC Contactor is suitable for using in the circuits of AC 50Hz or 60Hz, rated insulation voltage 660V, rated operating current up to 690V, rated operating voltage 380V/400V in AC-3 type, rated operating current up to 95A, form making, breaking frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer relay & chemical interlocking contactor, startdelta starter. With the thermal relay, it is combined into eletromagnetic starter. The contactor is produced according to IEC60947-4. The product is semko certified.

Current Class	9A , 12A , 18A , 25A , 32A , 40A , 50A , 65A , 80A , 95A (AC-3,380V)
Rated Insulaion Voltage	AC 660V
Rated Working Voltage	AC380v,660V,50/60HZ
Rated Control Power-line Voltage	24V,32V,48V,110V,127V,220V,240V, 380V,415V,440v,480V,500V,600V,660V
Number Of Poles	3P,4P
Operating Feature	Attract voltage:85%~110%Us ; Release voltage:20%~75%Us

2.Specifications
Type	Thermal Rated Current (A)	Rated Current AC-3 380V(A)	Control Power AC-3(KW)				Rated Insulation
			220V	380V	415V	660V	Voltage(V)	Aux.Contact
LC1-D09	20	9	2.2	4	4	5.5	660	3P+1NO+1NC
LC1-D12	20	12	3	5.5	5.5	7.5
LC1-D18	32	18	4	7.5	9	9
LC1-D25	40	25	5.5	11	11	15
LC1-D32	50	32	7.5	15	15	18.5
LC1-D40	60	40	11	18.5	22	30
LC1-D50	80	50	15	22	25	33
LC1-D65	80	65	18.5	30	37	37
LC1-D80	125	80	22	37	45	45
LC1-D95	125	95	25	45	45	45
LC1-D115	200	115	30	55	59	80
LC1-D150	250	150	40	75	80	100

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
