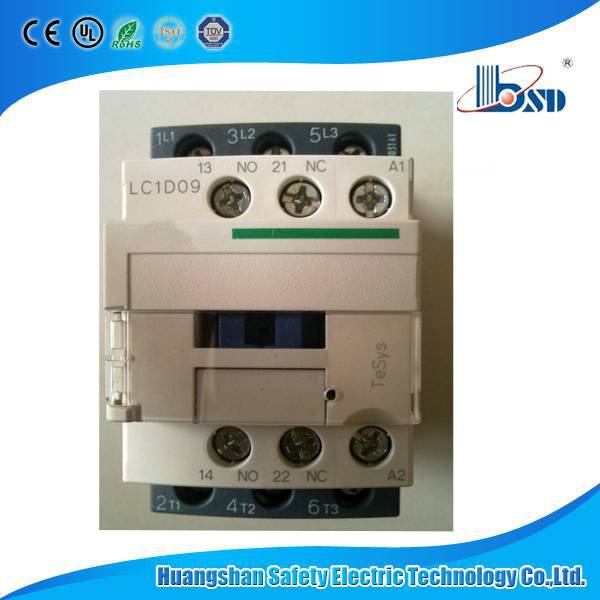

LC1d Types AC Magnetic Contactor

Name: LC1d Types AC Magnetic Contactor
Brand: all-electronics-online.com
SKU: 811770685
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	US $ 2.1-7.35/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1D
Rated Current:	9A-95A
Rated Voltage:	24V 36V 110V 117V 220V 380V
Life Time:	10, 000, 000 Times
Printing:	as Per Customer's Logo
Service:	OEM and ODM
Delivery Time:	2 Weeks

Product Description

Product Description:

CJX2(LC1-D) series AC contactor is suitable for using in the circuit up to the rated voltage 660VAC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group,air delayer,machine interlocking device etc.It's combined into the delay contactor,mechanical interlocking contactor,stardelta starter.With the thermal relay,it's combined into the electromagnetic starter.

Specifications
Type	Thermal Rated Current (A)	Rated Current AC-3 380V(A)	Control Power AC-3(KW)				Rated Insulation
			220V	380V	415V	660V	Voltage(V)	Aux.Contact
LC1-D09	20	9	2.2	4	4	5.5	660	3P+1NO+1NC
LC1-D12	20	12	3	5.5	5.5	7.5
LC1-D18	32	18	4	7.5	9	9
LC1-D25	40	25	5.5	11	11	15
LC1-D32	50	32	7.5	15	15	18.5
LC1-D40	60	40	11	18.5	22	30
LC1-D50	80	50	15	22	25	33
LC1-D65	80	65	18.5	30	37	37
LC1-D80	125	80	22	37	45	45
LC1-D95	125	95	25	45	45	45
LC1-D115	200	115	30	55	59	80
LC1-D150	250	150	40	75	80	100
