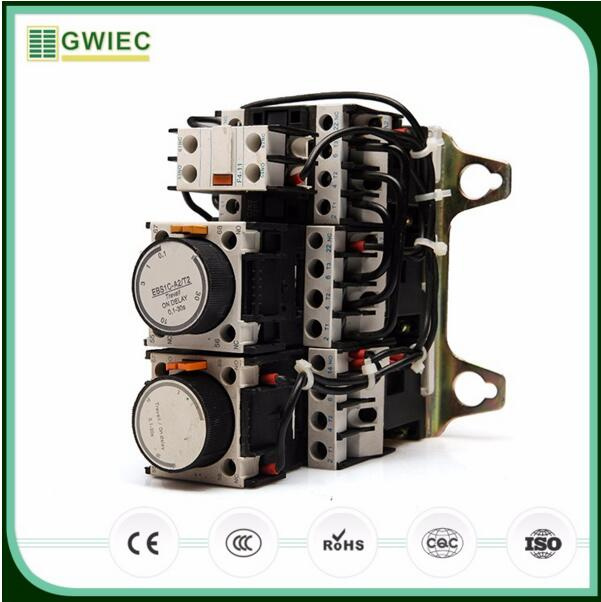

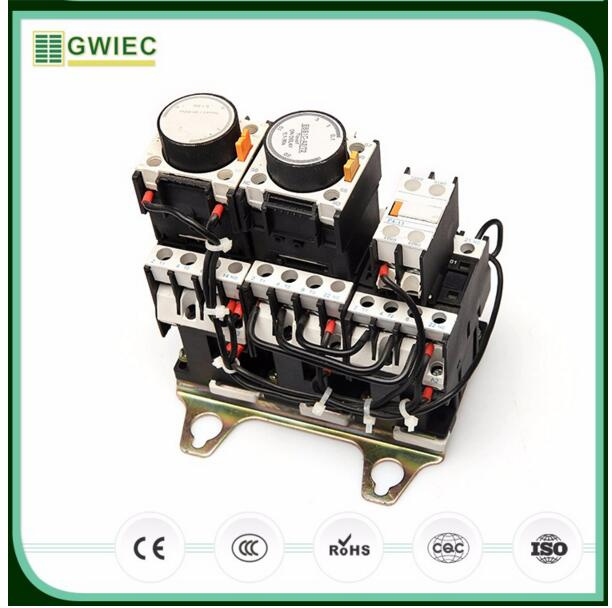

LC3 Series Gwiec Auto 9A 220V AC Star-Delta Magnetic Starter

Application:

• LC3-D series star delta reduced voltage starter is suitable for starting motor in the circuit
  of AC 50/60Hz,voltage Up to 660V and current up to 95A
• It is provided with a timer for automatic changover of start-delta to reduce the voltage and current of motor starter
• It complies with IEC947-4-4.
•


  Specification:

  Type	Rated operating Current(A)	3-phase Motor Capacity (KW)
  	AC3	220V	380V	415V	440V
  LC3-D09	9	4	7.5	7.5	7.5
  LC3-D12	12	5.5	11	11	11
  LC3-D18	18	11	18.5	22	22
  LC3-D35	25	11	22	22	22
  LC3-D32	32	15	25	25	25
  LC3-D40	40	18.5	37	37	37
  LC3-D50	50	25	55	59	59
  LC3-D65	65	32	55	59	59
  LC3-D80	80	37	75	75	75
  LC3-D95	95	45	80	80	80


  Company Information

  GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.

  GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
