| Prod Model: |
LCLC-SMDX-03 |
| Insertion Loss: |
≤0.2dB |
| Return Loss: |
≥50dB |
| Length: |
3m/Customized |
| Cable Diameter: |
3.0/2.0mm |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
BV |
| Connection Structure: |
LC-LC |
| Brand: |
Yacht |
Product Description

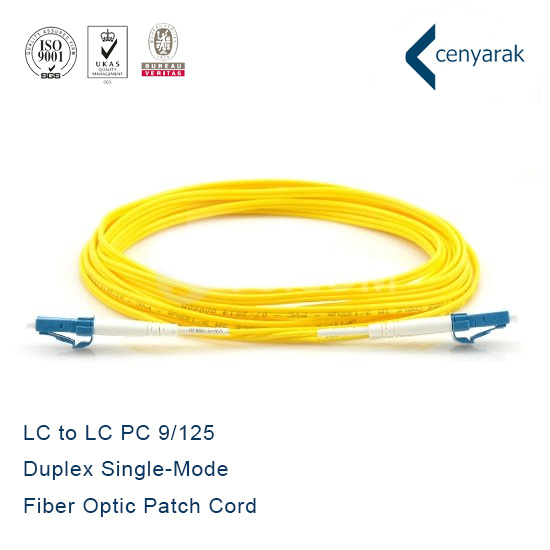

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable
The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Cenyarak also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
FC/PC-FC/PC Fiber Optic Patch Cord
mainly used between the device and the device, fiber link connection between the device and the patch panel to provide multiple types of fiber, including multi mode 62.5/125,50/125,QuintillionOM3,OM4, and single mode 9/125 PC, UPC, APC .etc
| Application: | Communication | Type: | Single-Mode |
| Connection Structure: | LC-LC | Material Shape: | Round Wire |
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 100N<1000N |
| Core: | Single Core | Certification: | ISO9001, BV |
| Brand: | Yacht | Sheath Material: | PVC |
| Insertion Loss: | ≤0.2dB | Return Loss: | ≤50dB |
| Length: | 3m/Customized | Cable Diameter: | 3.0/2.0mm |
| Trademark: | Yacht | Package: | 1 PC/Bag, 250 PCS/Carton |
| Specification: | ISO9001-2000 | Origin: | Nanjing,China |
| HS Code: | 854470000 | | |
Product Show

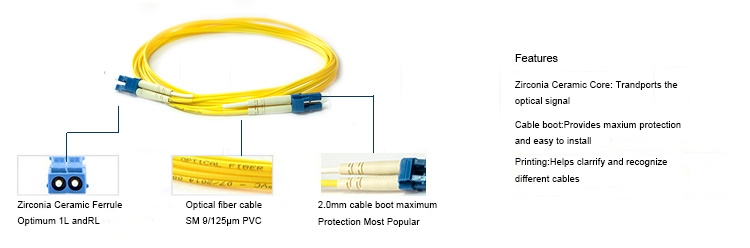

More Detail:
Applications
Communication, local area network, fiber to the home, digital high-definition monitor, and other fields. How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km. Performance
Performance & Specifications |
| Fiber Type | SM | MM |
| Normal Fiber OD | 125±0.2um | 125±0.2um |
| Connector Type | SC,FC,ST, E-2000, LC, MU | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB |
| Return Loss(Typical) | PC | 50dB | 35 | - |
| UPC | 55dB | - | - |
| APC | 65dB | - | - |
| Mating Durability(500 C) | 0.2dB |
| Temperature Stability | 0.3dB |
| Operation Temperature | -25°C~+70°C |
| Storage Temperature | -25°C~+70°C |
Certification
About CenyarakCenyarak, a company devoting on the research & development, and offering fiber connectivity network solutions for carriers, ISPs, content providers and networks, is the global market innovator and application technology pioneer in the field of optical network devices and interconnection.
Founded in Nanjing,Jiangsu of China, in 2003, Cenyarak always sticks to the spirit of "Science, Quality, Teamwork and Client-oriented". With 10 years development and accumulation, Cenyarak becomes a leading company with strong and professional teams covering optical communication product R&D, systematic solution and supply chain management. Why you choose us?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent Yacht or your own brand box/roller design and package
4.Stirictly conform to ISO, BV certificates

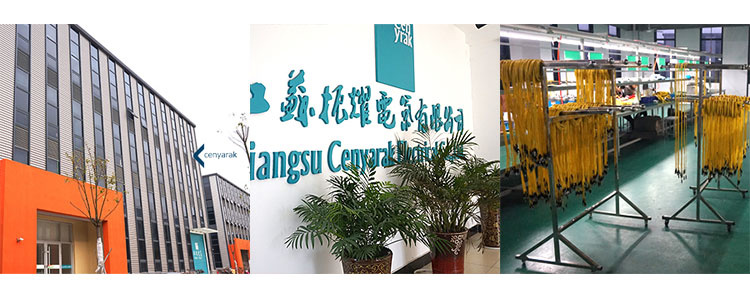

5.Long time experience at domestic and export marketWelcome you visit our factory!
Yacht brand, OEM/ODM fiber optic patch cable manufacturer, factory in NANJING, China!
Established in 2013, Jiangsu Cenyarak Electrical Co., Ltd is a manufacturer and trader specialized in research, development and production of all types of Fiber Optic Patch Cords and related products(). We are located in Jiangsu Nanjing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.
Covering an area of 800 square meters, our company have own instrument processing center, manufacturing workshop, so that customized is available.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received _ISO90012008.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, South East Asia, Europe, Africa ect.
Our company promises: High quality, reasonable prices, ample supply, timely delivery. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
