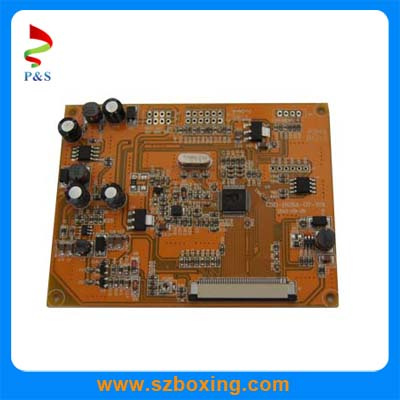

LCD Controller Mother Board for LCD Display

Prod Model:	PS-1628A-7-V01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Support Panel:	TFT LCD
LCD Controller:	Motherboard
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Non-Customized
Condition:	New

Product Description

1. Overview
7-inch color digital liquid crystal module is made of PS-1628A-7-V01 driver board, 7-inch LED color digital liquid crystal display, and frame(made according to the client's demand),it has two kinds of standards: PAL and NTSC which make automatic conversion come true. Character: use IC to carry on power management, cross-flow control for backlight, protect power abnormality and so on.

It can be used in areas below:
1. Official electron equipment
2. Device, instrument and measure equipment
3. Visual equipment(display for car,portable DVD,remote terminal,liquid crystal TV)
4. Not suit for cutting-edge products which require high reliability,stability and accuracy.

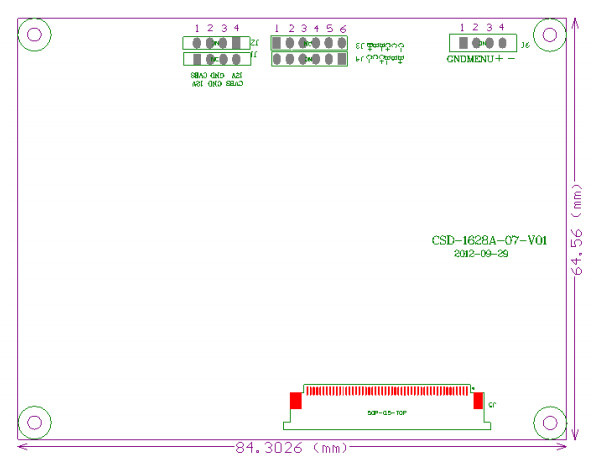

2. Wiring diagram

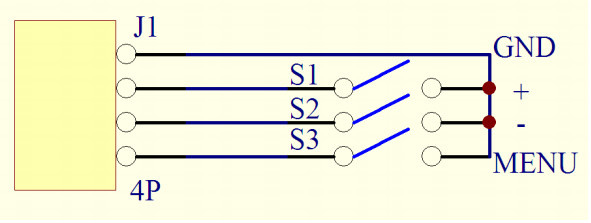

3.External Key Figure

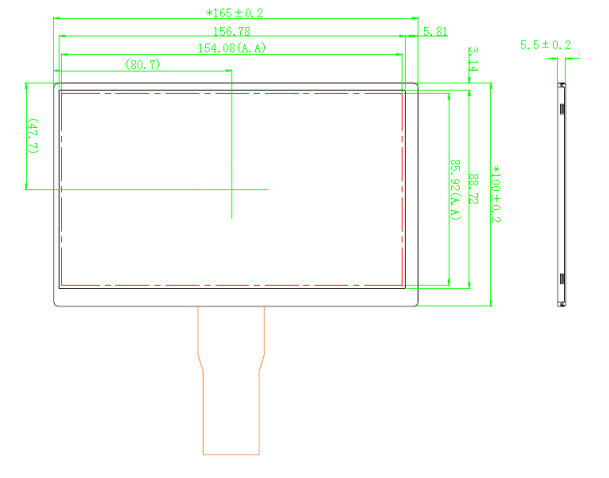

4. Structure of Display




5. Company Advantage

^Small MOQ accepted

^Competitive price and short lead-time.

^ISO9001 and ROSH certificated factory supplied.

^TFT LCD module, touch panel, PCB with SMT/COB solutions

6. Packaging and Delivery:


1). Payment Terms: T/T, Paypal

2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.

3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.

4). Packaging : Packed in anti-static bags with foam box to ensure safety in transportation

5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

Techinical parameters
Item	Specification	Unit
Mode of backlight	LED
Resolution (H x V)	800×3(RGB)×480
Visual range	(up/down/left/right) 20/40/45/45
Function of mirror image	up/down/left/right reverse control
Operating voltages	DC 10V-18V
Operating currents	DC160mA--340mA (changing with voltage)
Screen size of LED (W x H x D)	165(W)*104(H)*5.5(D)	mm
Size of display (H x V)	152.4(W)* 91.44(H)	mm
Size of paper board (W x H x D)	84.30(W)*64.56(H)*9(D)	mm
Visual signal	composite 1.0Vp-p(Impedance of 75EU in accordance with the demand of clients)
Standard of system	PAL/NTSC automatic conversion
Operating temperatures	-10 to 55	degree
Temperature of storage	-10 to 60	degree
Relative moisture	10 to 90%
