| Prod Model: |
EH9115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wave: |
Pure Sine Wave |
| DC Battery: |
384VDC |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
All Protections |
| Brand: |
OEM |
Product Description

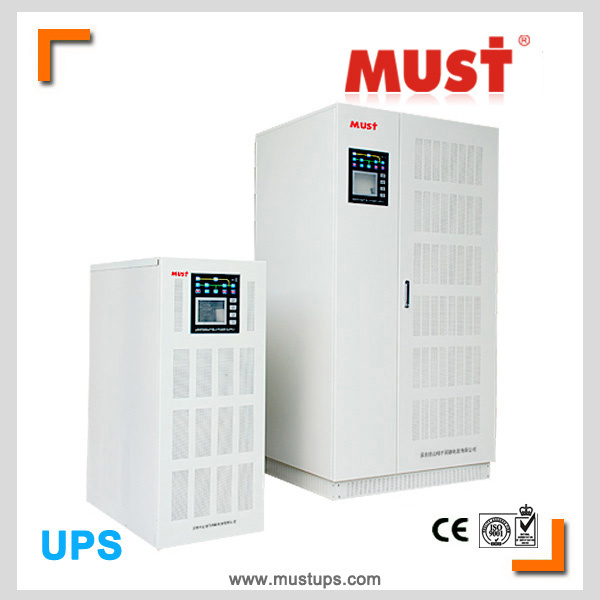

EH9115 Series 3 Phase Low frequency UPS 10-80KVA
Application:
EH 9115 series provides maximum protection for vital 'mission-critical' networks, security applications (electro-medical) and industrial applications thanks to its outstanding mechanical and electrical design. The UPS has an extremely outstanding mechanical and electrical design: Isolation transformer on the inverter, high short-circuit current and sinusoidal absorption with low
Main Features:
High accuracy and reliability due to the double DSP control systemlow power consumption up to 94%
Cold start directly and smart operation for users.
Simple to install: Capability to install the UPS into any distribution system (neutral not required on rectifier input)
Capability of regulating the output voltage (to offset voltage drops down long cable runs)
Built-in automatic and manual battery test feature, battery deep discharge protection and temperature compensating charger
Back-feed protection: To avoid energy feeding back into the mains supply should a fault occur
Reliable, filtered, stabilized and regulated sine wave output (double conversion on-line technology )with filters for atmospheric
Disturbance suppression- high reliability, full microprocessor control with no-break static and manual bypasses, extremely high short-circuit
Current to ensure compatibility with the most difficult transformer applications (lighting, drives and industrial processes) and an isolation
Transformer on the inverter output- maximum reliability and power availability- high level diagnostics: Event log with messages, status,
Measurements and alarms - available from the built-in LCD in several languages
| MODEL | EH9115-10K | EH9115-20K | EH9115-30K | EH9115-40K | EH9115-60K | EH9115-80K |
| CAPACITY | 10KVA/8KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| INPUT |
| Voltage | 380/400/415 Vac±20%,3 Phase +N (3 phase and 4 wire) |
| Input Frequency | 50/60 Hz ±10% |
| Power Factor | >=0.95 |
| phase | 3phase |
| Input voltage protection | Electronic Input out of tolerant protection |
| OUTPUT |
| AC Voltage Regulation (Batt.Mode) | 380/400/415 Vac ±1%,3 Phase +N |
| Voltage tolerant | (balanced load:+/- %1)(unbalanced:+/- %2)(full load:+/-%5) |
| Voltage regulation time | After full load: 25 ms |
| Frequency Range | 50Hz (60Hz special product) |
| Frequency tolerant | (synchron:+/-%2) (free running:+/-%0,2) |
| Efficiency (100% load) | >85% | >90% |
| Harmonic Distortion | <=3% THD (Linear Load),<=5% THD(Non Linear Load) |
| Transfer Time | Zero |
| 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sine Wave |
| Crest faktor | 3:1 |
| BATTERY |
| Battery Type & Numbers | Maintenance free lead-acid batteries / 12V x 32pcs |
| charge current | 8A |
| Battery Start | Yes, UPS can be started without AC source. |
| Battery protection | Automatic circuit breaker |
| Battery voltage protection | Electronic 3 level alarms |
| OVERLOAD |
| Overload protection | (>130-%150 load :60 seconds ) (>%150 load :30 seconds) |
| Short circuit protection | Electronic protection |
| Output voltage protection | Electronic out of tolerant protection |
| PHYSICAL |
| Dimension D*W*H(mm) | 600x550x1250 | 780x700x1520 |
| Net Weight(kgs) | 200 | 270 | 330//365 | 360 | 430 | 500/500 |
| OPERATING ENVIRONMENT |
| Humidity | 0% - 90% (NonLCCondensing) |
| Temperature | 0 - 40°C |
| Overtemperature protection | Electronic protection |
| Noise Level | < 58 dBA (At 1 M) | < 63 dBA (At 1 M) |
| Altitude | <1000 M Above Sea Level |
| LED,LCD,Buzzer | YES |
| MANAGEMENT |
| Remote Control | Dry contact, RS232 |
| * Product Specifications are subject to change without further notice. |
