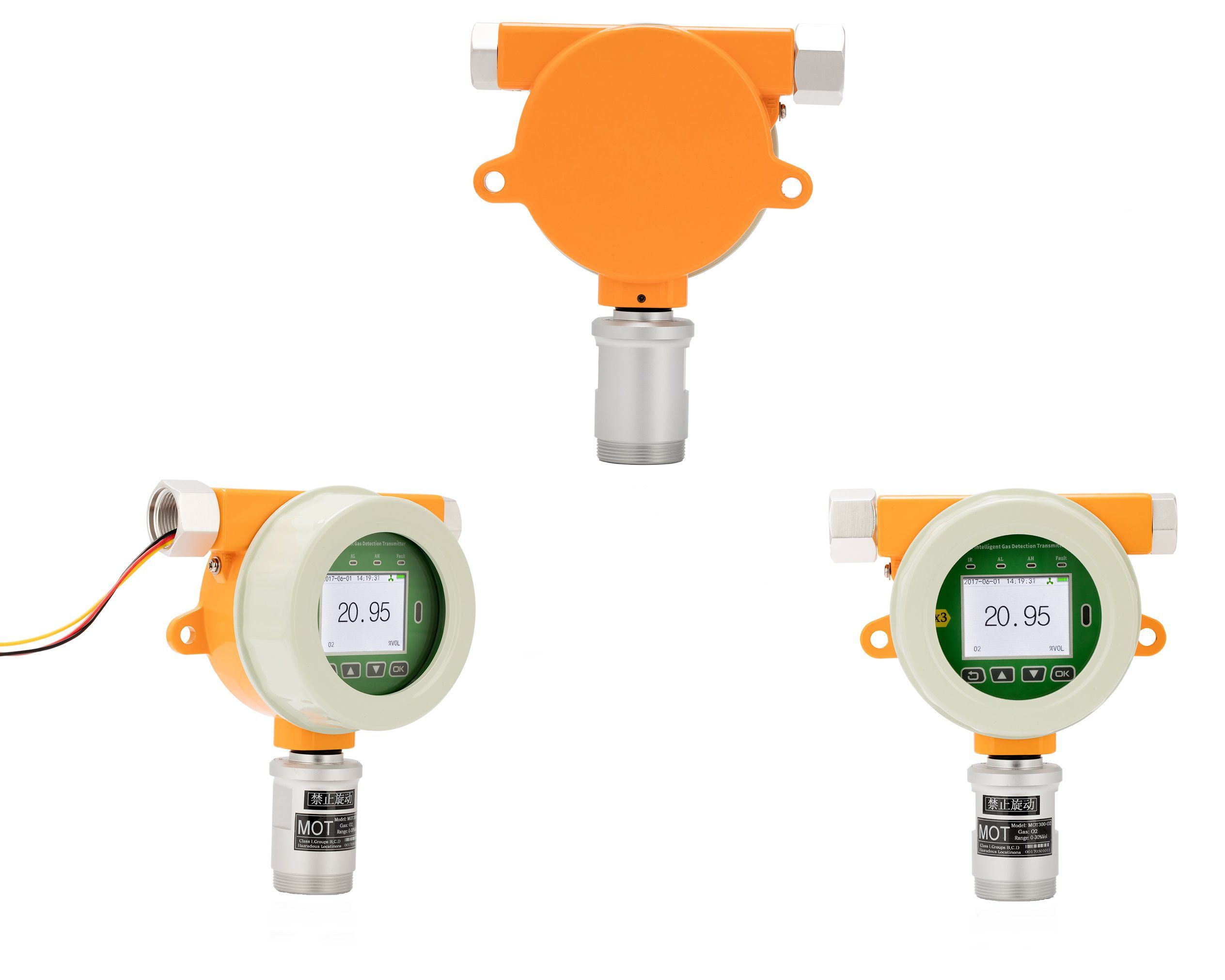

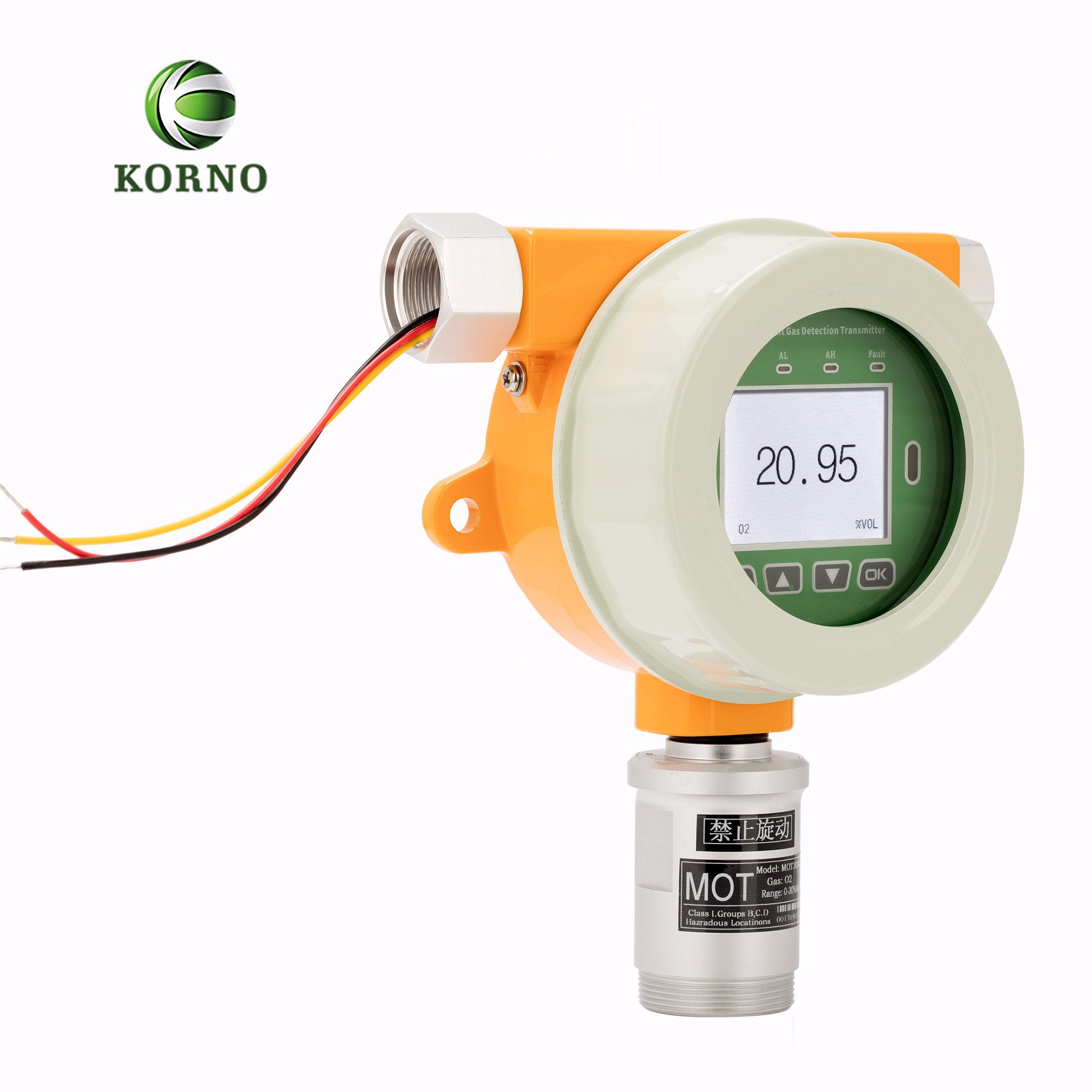

Name: LCD Display 4-20mA Output Voc Gas Meter
Brand: all-electronics-online.com
SKU: 822928485
Availability: InStock
Rating: 4.9 (119 reviews)

Price:	US $ 418.76-788.55/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MOT500-VOC
N.W:	1.2kg
G.W:	1.5kg
Screen Size:	2.4 Inch LCD HD Color Screen
IP Rating:	IP 65
Explosion Proof Sign:	Exdll CT4 (Ia)
Power:	24VDC
Modbus Digital Output:	RS485 Output
Analog Digital Output:	4-20mA Output(0-5V,0-10V Optional)
Alarm Type:	Sound and Light Alarm
Material:	Die-Cast Aluminum
Gas:	Voc
Type:	Semiconductor

Product Description

1) Key Feature

Clear Reading	2.4 inches LCD HD color display with a pixel up to 320*240
Variety Signal Output	RS485,4-20mA,0-5V/0-10V signal output
Relay Out	3 relays out,compatible to all device like fan,solenoid valve,etc.
Optional Signal Transmission	3-4 core cable,optical fiber network,network cable,3G transmission
Smart Calibration	Each sensor up to 6 level target calibration
Remote Control	Infrared remote control,free from open operation
Alarm Setting	Two alarm points,alarm mode are optional:L-H/H-H/L-L
Optional function	Temperature&Humidity sensor,Audible and visual alarm

2) Specifications

Product Type:	Online,Organic volatile gases(VOC)
Sensor:	Semiconductor Gas sensor
Detection Pattern:	Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection
Detection Range:	0-10,50,100,200,500,1000,2000,5000,6000,10000ppm
Resolution:	0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-10000PPM)
Detection Accuracy:	≤±3%F.S	Linearity error:		≤±1%F.S
Reaction Time:	≤20S(T90)	Zero drift:		≤±1%(F.S/Year)
Recovery Time:	≤20S	Repeatability:		≤±1%F.S
Relay output:	Two relays output,Contact rating:24VDC 3A/220VAC 3A
Explosion Proof Sign:	ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807
Outputs:	Analog:4-20mA signal,0-5V,0-10V Modbus: RS485 signal Pulse signal or TCP/IP signal,optional
Alarm Setting:	Two alarm set points Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm
Controllers:	Compatible with DN3000/DN9000,as well as most DCS/PLC systems
IP Rating :	IP65
Material:	Aluminum ,Explosion and corrosion proof	Connection:	3/4″NPT,1/2″NPT
Dimensions:	200×160×80mm(L×W×H)	Weight:	1.5 Kg(Net weight)
Operating Temperature:	-30 ~ 60ºC	Relative Humidity:	≤90%RH,Non-condensing
Operating Pressure:	0 ~ 200Kpa	Operating Voltage:	24VDC(9~30VDC)

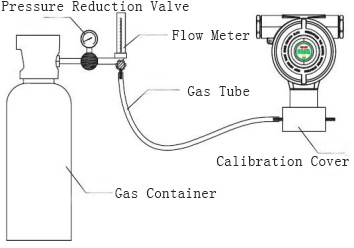

3) Calibration:
