| Prod Model: |
GZS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Features: |
Anticorrosion Type |
| High Temperature Type: |
-50~200~300 C |
| Kind: |
Liquid Level Transmitter |
| Structure: |
All in One |
| Range: |
>0-30m |
| Principle: |
Piezoelectric Type |
| Body Material: |
Metal |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| Type: |
Cable |
Product Description
PTFE anti-corrosion type liquid level transmitter, all the wetted parts are made of PTFE material, have characters of high temperature resistance, corrosion resistance and anti clogging. And it is widely used in any liquid level measurement of atmospheric pressure (except for material corrode PTFE).
1. Characteristics
Ø Good stability, high precision, high temperature resistant, corrosion resistant, anti clogging.
Ø Directly input to the measured medium, installation and usage are very convenient.
Ø Compact structure, no moving parts, high reliability, long service life.
Ø It is widely used in any liquid level measurement (except for material corrode PTFE).
Ø Can measure from the water, oil, acid, alkali, salt to larger paste viscosity fluid with high precision measurement, and are affected by foaming of the measured medium, deposition, the influence of the electric property.
Ø Have reverse polarity power supply and overload current protection function.
2. Technical Parameters
Ø Measuring range: 0 ~ 30 meters.
Ø Output signal: 4 ~ 20 mA/DC.
Ø Power supply: 24V+- 5 VDC.
Ø Accurate rating: 0.5%FS.
Ø Long term stability: Plus or minus 0.2% FS/year
Ø Medium temperature: - 50 ~ 100º C( state of not clotting)
Ø High temperature type: -50~200~300º C( state of not clotting)
Flange Connection type

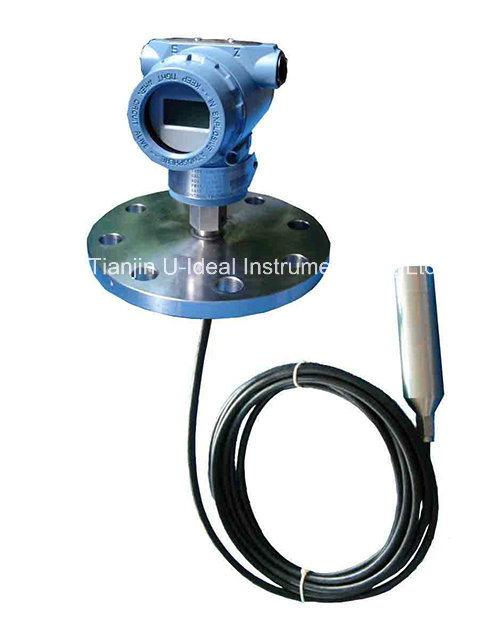

Features: Flange connection LCD type input level sensor use diffusion silicon piezoresistive core body, SS316 meter, Flange: SS304. Explosion-proof shell, are widely used in river, open channel, water reservoir and water tower etc. Liquid level measurement and controlling.
Main technique parameters:
Measuring medium: Water and oil
Pressure type: Meter press, Absolute Pressure (default meter pressure)
Measure range: 0 ~ 300 m
Comprehensive accuracy: 0.1% FS
Output signals: 4 ~ 20 ma (two-wire system), 0 ~ 5 v, 1 ~ 5 v, 0 ~ 10 v (three-wire system)
The power supply voltage: 12 ~ 36 VDC
Medium temperature: - 30 ~ 60 º C
Ambient temperature: - 40 ~ 85 º C
Zero temperature drift: Plus or minus 0.05% FS º C or less
The range of temperature drift, plus or minus 0.05% FS º C or less
Compensation temperature: 0 ~ 70 º C
Safety overload: 150% FS
Limit overload: 200% FS
Sampling frequency: 2 ms or less
Load capacity: (current) 250 ~ 1425 Ω , (voltage) 2 kΩ Or more
Seal level: IP68
Long-term and stable performance: 0.1% FS/year
Vibration impact: In mechanical vibration within 20 hz ~ 1000 hz frequency, output variation is less than 0.1% FS
Connection mode: Flange
| Diameter and connection | 4,6,10,15,20,25,32,40 thread connection |
| (15,20,25,32,40)50,65,80,100,125,150,200 flange connection |
| Accuracy | ±1%R,±0.5%R,±0.2%R(Customer-made) |
| Range | 1:10, 1:15, 1:20 |
| Instrument material | 304 Stainless Steel, 316L Stainless Steel, etc |
| Medium temperature | -20°C--+110°C |
| Environment condition | Temperature:-10°C--+55°C, Relative humidity: 5%-90%, Atmospheric pressure: 86-106Kpa |
| Output signal | Sensor: Pulse frequency signal, Low voltage: ≤0.8V,High voltage: ≥8V |
| Transmitter: Two-wire 4-20mA current signal |
| Power supply | Sensor: +12VDC,+24VDC(optional) |
| Transmitter: +24VDC |
| Site display type: instrument with 3.2V lithium battery |
| Signal transmission wire | STVPV3×0.3 ( three-wire), 2×0.3 (two-wire) |
| Transmission distance | ≤1000m |
| Signal wire interface | Basic type: Hausmann interface, Explosion proof: Internal thread M20*1.5 |
| Explosion class | Basic type: Non-explosion proof product, Explosion proof: ExdllBT6 |
| Protection degree | IP65 |
