| Prod Model: |
ES-6908CGD |
| Mounted Way: |
Ceiling Mounted |
| Detector Type: |
Wired or Wireless Optional |
| Output: |
Relay Output or RF Signal |
| Application: |
Indoor |
| Signal Transmission: |
Wired and Wireless Alarm |
| Working Mode: |
Passive |
| Sensor Type: |
Electrochemical Co Sensor |
| Working Principle: |
Electric- Relay Output |
| Usage: |
Fire, Auto |
| Type: |
Carbon Monoxide Alarm |
Product Description

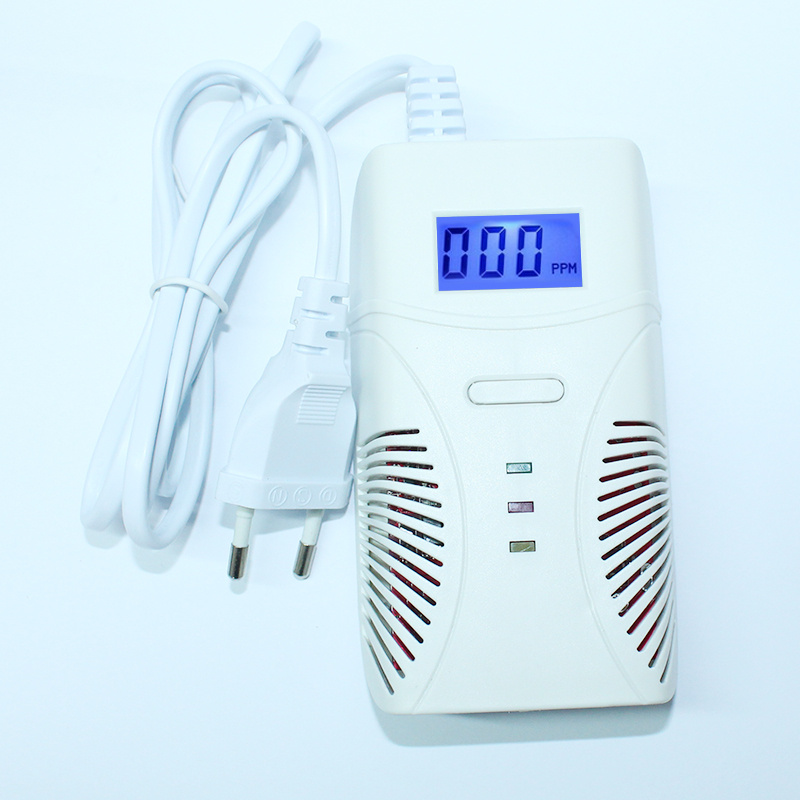

LCD Display gas & CO Detector with CE (ES-6908CGD)
Features/SpecificationElectrochemical CO sensor, Catalytic gas sensor high reliability
MCU processing adopted
Auto-check indicator
Sound & Flash alarm
Designed to detect CO Gas&LPG Gas
SMT manufacture technology, good stability
Auto-reset after alarm
CO Gas detecting type OR LPG Gas detecting type is available
Operating voltage 100-240V AC
Rated power ≤3W (220V AC power supply)
Warm-up time 3-5 minutes
Sensitivity/Alarm Time:
Alarm level 10% LEL of Natural gas
Within 60~90 minutes @ 50ppm CO concentration
Within 10~40 minutes @ 100ppm CO concentration
Within 3 minutes @ 300ppm CO concentration
Audibility: 85dB ( at 1m distance ), Frequency 3±0.5KHZ
Alarm indicator Corresponding Red LED flash
Malfunction indicator Yellow LED on & Beeper long-buzz
Operating temperature -10°C to 50°C
Environmental humidity ≤95% RH (No congelation)
Installation mode Wall mounted
Dimension 120*72*36mm
Execute criterion GB15322.2-2003
LCD Display for Gas Level
Wired Wireless Optional| Type | Output |
| Wired | Relay NO/NC & Sound |
| Wireless | RF Signal & sound |
